SaltDogg SHPE1500 Commercial Salt & Sand Spreader User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your SaltDogg SHPE1500 Commercial Salt & Sand Spreader. The SHPE1500 is a robust 1.5 cubic yard electric poly hopper spreader designed for medium to heavy-duty commercial applications, suitable for 3/4 ton or 1 ton pickup trucks. It is engineered to handle bulk salt or a salt/sand mix, ensuring reliable material distribution.

Image 1.1: The SaltDogg SHPE1500 Spreader installed in a truck bed, ready for operation.

2. Safety Information

Always prioritize safety when operating the SaltDogg SHPE1500 spreader. Failure to follow safety guidelines can result in serious injury or property damage. Refer to the official user guide PDF for comprehensive safety instructions.

• Read the Manual: Thoroughly read and understand the entire instruction manual before installation, operation, or maintenance.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, gloves, and sturdy footwear.
• Clear Area: Ensure the area around the spreader and vehicle is clear of bystanders, especially children and pets, during operation.
• Vehicle Compatibility: Verify that your vehicle meets the minimum bed length and weight capacity requirements for safe operation.
• Electrical Safety: Disconnect power before performing any maintenance or adjustments to prevent accidental startup.
• Material Handling: Use caution when loading materials. Avoid overfilling the hopper.

For detailed safety warnings and precautions, please consult the official SaltDogg SHPE1500 User Guide (PDF).

3. Product Overview

The SaltDogg SHPE1500 is engineered for reliable and efficient spreading of de-icing materials. Key features and components include:

• Hopper: Durable 1.5 cubic yard (3000 lb capacity) double-wall poly hopper, resistant to rust and dents.
• Auger System: 2-1/2 inch stainless steel auger and trough with an adjustable baffle for precise flow control. Features an automatic reverse function to clear jams.
• Spinner: 14-inch polymer spinner capable of casting material 5-30 feet. It is removable for cleaning and storage.
• Electric Drive: Powered by independent 1/2 HP (auger) and 1/4 HP (spinner) 12V gear motors for quiet operation.
• In-Cab Controller: Closed-loop controller for independent adjustment of auger and spinner speeds, plus vibrator control and a pause function.
• Vibrator: 200 lb capacity vibrator to ensure consistent material flow.
• Accessories: Includes a top screen, tie-downs, fitted tarp, and a remote auger bearing grease kit.

Image 3.1: Overview of the SHPE1500's features, including its capacity and controller.

Image 3.2: The ultra-durable dual-walled poly hopper design.

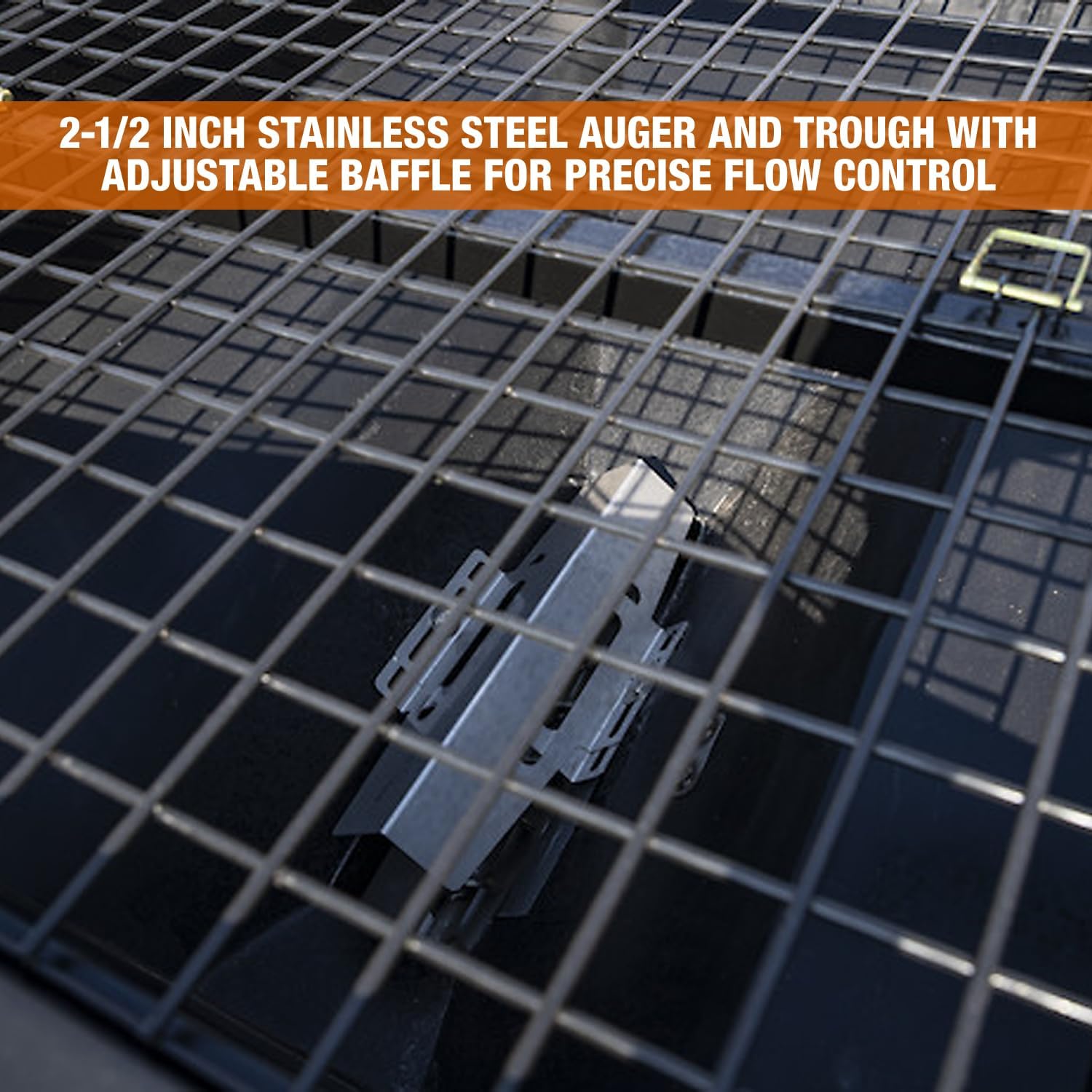

Image 3.3: The stainless steel auger and trough for precise material flow.

4. Setup

Proper setup is crucial for the safe and effective operation of your spreader.

4.1 Vehicle Requirements

• The SHPE1500 requires a minimum bed length of 75 inches (6 feet 3 inches).
• Designed for standard bed (6'+) or longer 3/4 ton and larger trucks.
• Ensure your truck's suspension and payload capacity can safely handle the spreader's weight (520 lbs empty) plus the weight of the material (up to 3000 lbs).

Image 4.1: The SHPE1500 is designed for 3/4 and 1 ton trucks.

4.2 Installation

• Utilize the integrated forklift slots for safe and convenient loading and unloading of the spreader into your truck bed.
• Secure the spreader using the provided tie-downs to prevent movement during transport and operation.
• Install the top screen to prevent large clumps or debris from entering the hopper and damaging the auger system.
• Cover the hopper with the fitted tarp when not in use or during transport to protect materials from moisture and debris.
• Connect the electrical system according to the detailed wiring instructions in the full user guide. Ensure a secure connection to the vehicle's 12V DC power supply.

Image 4.2: Included accessories for installation and protection.

5. Operating Instructions

Follow these steps for effective and controlled material spreading.

5.1 Loading Material

• The SHPE1500 is designed for bulk salt or a 50/50 salt/sand mix. Ensure materials are dry and free of large foreign objects.
• Load material into the hopper, ensuring it does not exceed the hopper's capacity. The top screen will help filter out oversized chunks.

5.2 Using the In-Cab Controller

The precise in-cab digital controller allows for independent adjustment of key functions:

• Auger Speed: Adjust the auger speed to control the flow rate of material from the hopper.
• Spinner Speed: Adjust the spinner speed to control the spread width, ranging from 5 to 30 feet.
• Vibrator Control: Activate the vibrator to assist with material flow, especially with damp or clumpy materials.
• Pause Function: Use the pause button to temporarily stop spreading without resetting your settings, useful between jobs or when repositioning.

Image 5.1: The precise in-cab digital controller for optimal spreading.

5.3 Spreading Operation

• Start the vehicle and engage the spreader's power.
• Adjust auger and spinner speeds to achieve the desired coverage and spread pattern.
• The auger will automatically reverse if it encounters a jam, helping to clear the obstruction and restore material flow.
• Monitor material levels and refill as needed.

Image 5.2: The spreader in action, distributing material.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your SaltDogg SHPE1500 spreader.

• Cleaning: After each use, especially when using corrosive materials like salt, thoroughly clean the hopper, auger, and spinner. The polymer spinner is removable for easier cleaning.
• Lubrication: Utilize the remote auger bearing grease kit to lubricate the auger bearings regularly. Refer to the full manual for the recommended lubrication schedule and procedure.
• Inspection: Periodically inspect all components for wear, damage, or loose fasteners. Pay close attention to the auger, spinner, motors, and electrical connections.
• Storage: When storing the spreader for extended periods, ensure it is clean, dry, and protected from the elements. Consider applying a protective coating to metal parts.

7. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, consult the full user guide or contact customer support.

7.1 Material Flow Issues

• Problem: Material is not flowing or is flowing inconsistently.
• Solution:
  • Check if the vibrator is active. If not, turn it on via the in-cab controller.
  • Ensure the material is dry and free of large clumps. Damp material can cause bridging.
  • Verify the auger speed setting on the controller.
  • Inspect the auger for any obstructions. The auto-reverse feature should help clear minor jams.
  • Check the adjustable baffle for proper positioning to allow adequate material flow.

7.2 Spreader Not Operating

• Problem: Spreader does not power on or motors are not engaging.
• Solution:
  • Verify all electrical connections are secure and free of corrosion.
  • Check the vehicle's 12V power source and ensure the battery is adequately charged.
  • Inspect fuses in the wiring harness.
  • Ensure the in-cab controller is properly connected and powered on.

8. Specifications

Image 8.1: SHPE1500 Spreader dimensions in inches.

9. Warranty Information

The SaltDogg SHPE1500 Electric Poly Hopper Spreader is backed by a 2-year warranty. For specific terms, conditions, and claim procedures, please refer to the official warranty documentation included with your product or contact SaltDogg customer support.

10. Support

For further assistance, detailed instructions, or technical support, please utilize the following resources:

• Official User Guide: A comprehensive PDF manual is available for download: SaltDogg SHPE1500 User Guide (PDF).
• Manufacturer Website: Visit the SaltDogg website for product information, FAQs, and additional support resources.
• Customer Service: Contact SaltDogg customer service for direct assistance with product inquiries, troubleshooting, or warranty claims.
