Bahco 3830-14-VIP Bi-Metal Hole Saw 9/16-Inch User Manual

1. Product Overview

The Bahco 3830-14-VIP Bi-Metal Hole Saw is engineered for cutting clean, accurate holes in various machinable materials. It features a bi-metal construction, combining a flexible, shatter-resistant spring steel back with a high-speed steel cutting edge. The cutting edge, typically with 4 to 6 teeth per inch, is electron beam welded to a tough alloy back, and the teeth are precision ground to enhance cutting efficiency and durability. This design ensures reliable performance and extended tool life.

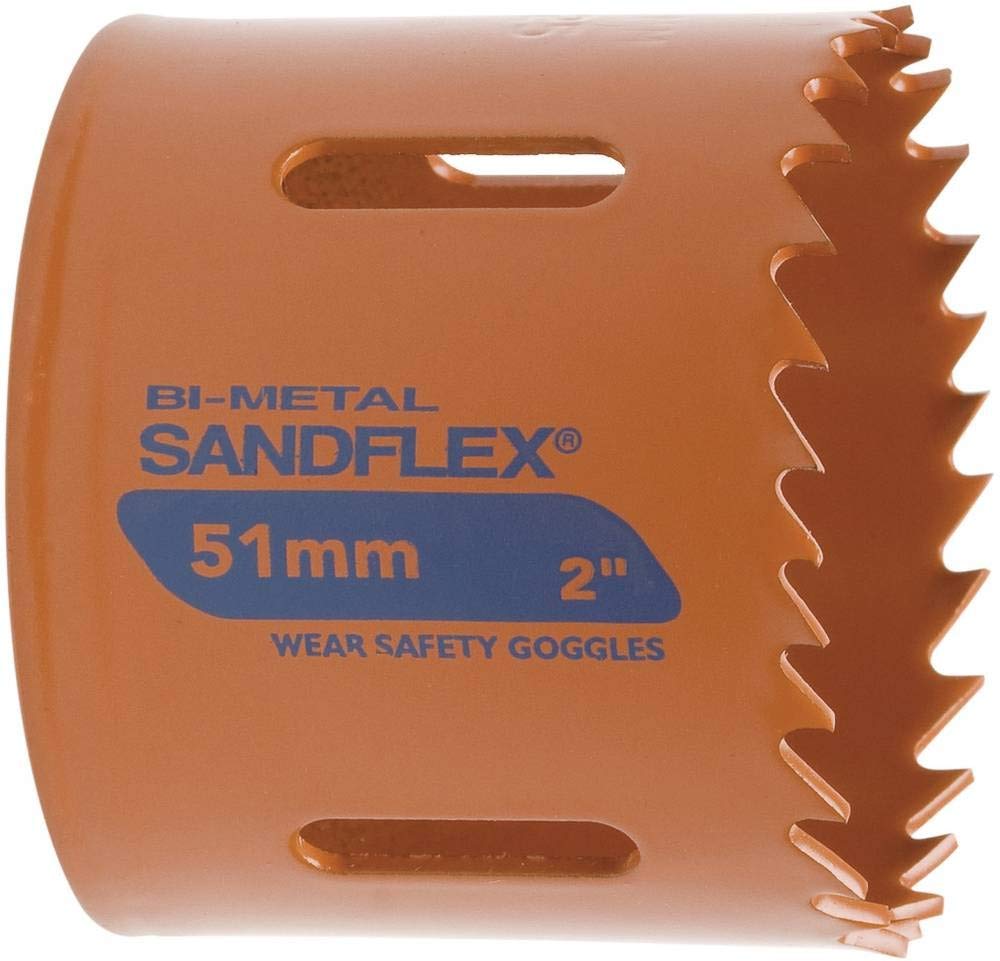

Image of the Bahco 3830-14-VIP Bi-Metal Hole Saw, showing its cutting teeth and overall construction.

The hole saw is designed with knockout holes to facilitate easy core removal after cutting, improving workflow and reducing downtime. Its robust construction makes it suitable for professional and demanding applications.

2. Setup and Installation

Proper setup is crucial for safe and effective operation of the Bahco Bi-Metal Hole Saw.

2.1 Safety Precautions

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
• Ensure the power tool is unplugged or its battery removed before attaching or detaching the hole saw.
• Verify that the workpiece is securely clamped to prevent movement during drilling.
• Do not wear loose clothing or jewelry that could get caught in rotating parts.

2.2 Attaching the Hole Saw

1. Select an arbor compatible with your drill and the hole saw size. The arbor typically consists of a pilot drill and a threaded shank for the hole saw.
2. Thread the Bahco 3830-14-VIP hole saw onto the arbor's threaded base. Tighten it securely by hand, then use a wrench if necessary to ensure it is firmly seated.
3. Insert the arbor's shank into the chuck of your power drill. Tighten the drill chuck firmly to prevent slippage during operation.
4. Ensure the pilot drill extends slightly beyond the cutting teeth of the hole saw. This helps to center the cut and prevent wandering.

3. Operating Instructions

Follow these guidelines for optimal performance and safety when using your Bahco Bi-Metal Hole Saw.

3.1 Drilling Procedure

1. Mark the center point for your hole on the workpiece.
2. Position the pilot drill directly over the marked center point.
3. Start the drill at a low to medium speed. Apply light, steady pressure to allow the pilot drill to penetrate the material.
4. Once the pilot drill has passed through and the hole saw teeth begin to engage the material, increase the drill speed to the recommended setting for the material being cut.
5. Maintain consistent, moderate pressure. Avoid excessive force, which can cause overheating, dulling of teeth, or binding.
6. For metal cutting, use a suitable cutting lubricant or coolant to reduce friction, dissipate heat, and extend the life of the hole saw.
7. Allow the hole saw to cut through the material at its own pace. Do not force the cut.

3.2 Material Considerations and Speed Recommendations

• Soft Materials (e.g., wood, plastic): Higher speeds can be used.
• Medium Materials (e.g., aluminum, thin steel): Medium speeds are generally appropriate.
• Hard Materials (e.g., stainless steel, thick metals): Lower speeds are essential to prevent overheating and premature wear. Always use coolant.
• Refer to your drill's manual or a general hole saw speed chart for specific RPM recommendations based on material and hole saw diameter.

3.3 Core Removal

After completing a cut, the material core will be inside the hole saw. To remove it:

• Unplug the drill or remove its battery.
• Locate the knockout holes on the side of the hole saw.
• Use a screwdriver or a similar tool to push the core out through these holes.
• Always ensure the core is fully removed before making the next cut to prevent clogging and maintain cutting efficiency.

4. Maintenance

Regular maintenance will prolong the life and performance of your Bahco Bi-Metal Hole Saw.

4.1 Cleaning

• After each use, remove any debris, chips, or material residue from the teeth and body of the hole saw. A stiff brush or compressed air can be effective.
• For stubborn residue, a mild solvent can be used, but ensure it does not damage the tool's finish. Dry thoroughly after cleaning.

4.2 Inspection

• Periodically inspect the cutting teeth for signs of wear, dullness, or damage (e.g., chipped or missing teeth).
• Check the body of the hole saw for cracks or deformities.
• Inspect the arbor connection point for wear or damage.
• A dull or damaged hole saw should be replaced to ensure safe and efficient cutting.

4.3 Storage

• Store the hole saw in a dry environment to prevent rust.
• Keep it in its original packaging or a dedicated tool case to protect the teeth from damage and prevent accidental injury.

5. Troubleshooting

This section addresses common issues encountered during hole saw operation.

5.1 Hole Saw Not Cutting or Cutting Slowly

• Possible Cause: Dull or damaged teeth.
  Solution: Inspect the teeth. If dull or damaged, replace the hole saw.
• Possible Cause: Incorrect drill speed.
  Solution: Ensure the drill speed is appropriate for the material being cut (lower speed for harder materials).
• Possible Cause: Insufficient pressure.
  Solution: Apply steady, moderate pressure.
• Possible Cause: Overheating.
  Solution: Use cutting fluid for metal and reduce speed. Allow the saw to cool.

5.2 Hole Saw Binding or Getting Stuck

• Possible Cause: Excessive pressure.
  Solution: Reduce pressure and allow the saw to cut at its own pace.
• Possible Cause: Material core stuck inside.
  Solution: Stop the drill, unplug it, and remove the core using the knockout holes.
• Possible Cause: Workpiece not securely clamped.
  Solution: Re-secure the workpiece to prevent movement.

5.3 Inaccurate or Off-Center Holes

• Possible Cause: Pilot drill not properly centered or loose.
  Solution: Ensure the pilot drill is securely fastened and extends correctly.
• Possible Cause: Starting drill at too high a speed.
  Solution: Begin drilling at a low speed until the pilot drill has engaged the material.

6. Specifications

Key specifications for the Bahco 3830-14-VIP Bi-Metal Hole Saw.

7. Warranty and Support

For warranty information, technical support, or service inquiries regarding your Bahco 3830-14-VIP Bi-Metal Hole Saw, please contact Bahco customer service directly. Refer to the official Bahco website or product packaging for the most current contact details and warranty terms.
