Honeywell Home HE360A1075 Whole House Humidifier Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Honeywell Home HE360A1075 Whole House Humidifier. Please read these instructions thoroughly before beginning installation or use. Proper installation and regular maintenance are crucial for optimal performance and longevity of the unit.

The Honeywell Home HE360A1075 is a powered flow-through humidifier designed to integrate with your home's forced-air furnace system, providing consistent humidity levels throughout your living space. Its design promotes cleanliness and reduces maintenance frequency.

2. Safety Information

WARNING: Failure to follow these instructions could result in property damage, serious injury, or death.

• Always disconnect power to the furnace and humidifier before performing any installation, maintenance, or service.
• Installation must comply with all local electrical and plumbing codes.
• Ensure all electrical connections are secure and properly insulated.
• Do not operate the humidifier if any parts are damaged or missing.
• Keep children away from the humidifier during operation and maintenance.
• Use only genuine Honeywell replacement parts and accessories.

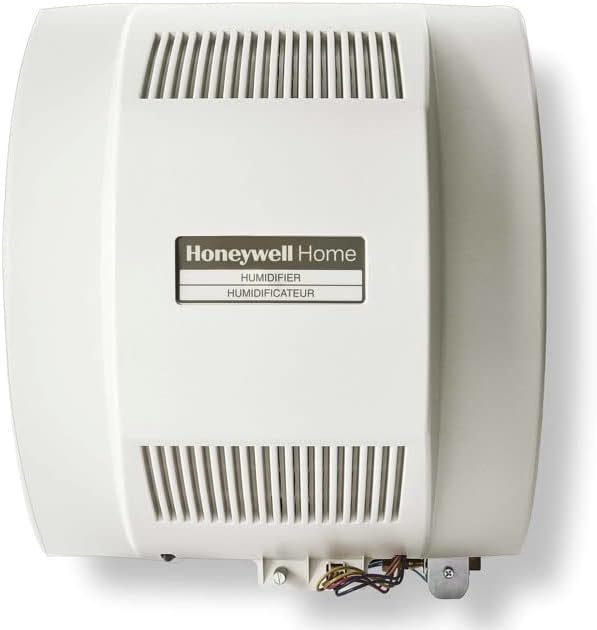

3. Product Overview

The HE360A1075 humidifier is engineered for efficient whole-house humidification. Key features include:

• Powered Flow-Through Design: Minimizes mineral buildup and reduces cleaning frequency.
• Wide Coverage: Suitable for homes up to 4,500 square feet.
• Flexible Mounting: Can be mounted on either the warm air supply or return air duct of any forced-air furnace.
• PerfectFLO® Water Distribution: Optimizes water usage and humidification efficiency.

4. Setup and Installation

Installation of the HE360A1075 humidifier requires basic electrical and plumbing knowledge. If you are unsure about any step, it is recommended to consult a qualified HVAC professional.

4.1 Components Included (Typical)

The humidifier typically includes the following components for installation:

• Humidifier Unit
• H8908 Humidistat
• Saddle Valve Assembly (saddle valve, top clamp, threaded bottom clamp, bolts, rubber gasket, eyelet, plastic bushing)
• Sail Switch (or pressure sensor switch)
• 1/2 inch (12.7 mm) ID drain tubing
• 1/4 inch (6.35 mm) OD feed water tubing
• 18 gauge, two-strand thermostat wire
• Connecting and mounting hardware (wire nuts, sheet metal screws, drain tube clamp, feed tube mounting clamps, brass inserts, plastic compression rings)

4.2 Installation Location

The humidifier can be mounted on either the warm air supply or return air duct of your forced-air furnace. Ensure sufficient space for maintenance and access to water and electrical connections.

4.3 General Installation Steps (Summary)

1. Power Disconnection: Turn off power to the furnace at the circuit breaker.
2. Duct Cutting: Cut an opening in the selected ductwork according to the template provided with the unit.
3. Mounting: Securely mount the humidifier to the duct using the provided screws and clips.
4. Water Connection: Install the saddle valve on a cold water line and connect the feed water tubing to the humidifier. Ensure the drain tubing is routed to a suitable drain.
5. Electrical Wiring: Wire the humidifier to the furnace control board or a dedicated 24V transformer, incorporating the humidistat and sail switch as per the wiring diagram.
6. Testing: Restore power and test the humidifier's operation. Check for leaks and proper humidistat function.

Refer to the detailed wiring diagrams and specific instructions provided in the physical installation guide for complete steps.

5. Operating Instructions

The Honeywell Home HE360A1075 operates in conjunction with your furnace to introduce moisture into your home's air circulation system.

5.1 Humidistat Control

The H8908 Humidistat allows you to set your desired humidity level. It senses the relative humidity in your home and activates the humidifier when the humidity drops below the set point and the furnace fan is operating. Adjust the humidistat setting based on outdoor temperature to prevent condensation on windows and walls.

• Setting the Humidistat: Rotate the dial to your desired humidity percentage. Start with a lower setting (e.g., 30-35%) and gradually increase if needed.
• Automatic Operation: The humidifier will automatically turn on when the furnace fan runs and humidity is required, and turn off when the set humidity is reached or the furnace fan stops.

6. Maintenance

Regular maintenance ensures efficient and reliable operation of your humidifier. The flow-through design helps minimize mineral buildup, but periodic cleaning and pad replacement are still necessary.

6.1 Humidifier Pad Replacement

The humidifier pad (also known as the water panel or evaporator pad) should be replaced at least once per heating season, or more frequently in areas with hard water.

1. Disconnect Power: Turn off power to the furnace and humidifier.
2. Remove Cover: Open or remove the humidifier cover.
3. Remove Old Pad: Carefully slide out the old humidifier pad and its frame. Dispose of the old pad.
4. Clean Tray: Clean any mineral deposits from the water distribution tray and humidifier housing.
5. Install New Pad: Insert a new, genuine Honeywell humidifier pad into the frame and slide it back into the unit. Ensure it is correctly seated.
6. Replace Cover: Securely close the humidifier cover.
7. Restore Power: Turn power back on to the furnace and humidifier.

6.2 Seasonal Shutdown

At the end of the heating season, it is recommended to:

• Turn off the water supply to the humidifier.
• Turn off the humidifier at the humidistat or disconnect its power.
• Replace the humidifier pad.
• Clean the unit thoroughly.

7. Troubleshooting

Before contacting customer support, review the following common issues and solutions:

8. Specifications

9. Warranty Information

The Honeywell Home HE360A1075 Whole House Humidifier comes with a 1 Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For specific terms and conditions, please refer to the warranty documentation included with your product or contact Honeywell Home customer support.

10. Customer Support

If you have any questions, require technical assistance, or need to order replacement parts, please contact Honeywell Home customer support. Contact information can typically be found on the Honeywell Home website or in the packaging materials.
