DANCO 11C-5H/C Hot/Cold Stem for Central Brass Faucets Instruction Manual

Product Overview

The DANCO 11C-5H/C Hot/Cold Stem is a replacement part designed for Central Brass tub/shower faucets. This component is crucial for controlling water flow and temperature. Replacing a worn or damaged stem can resolve faucet leaks and restore proper function.

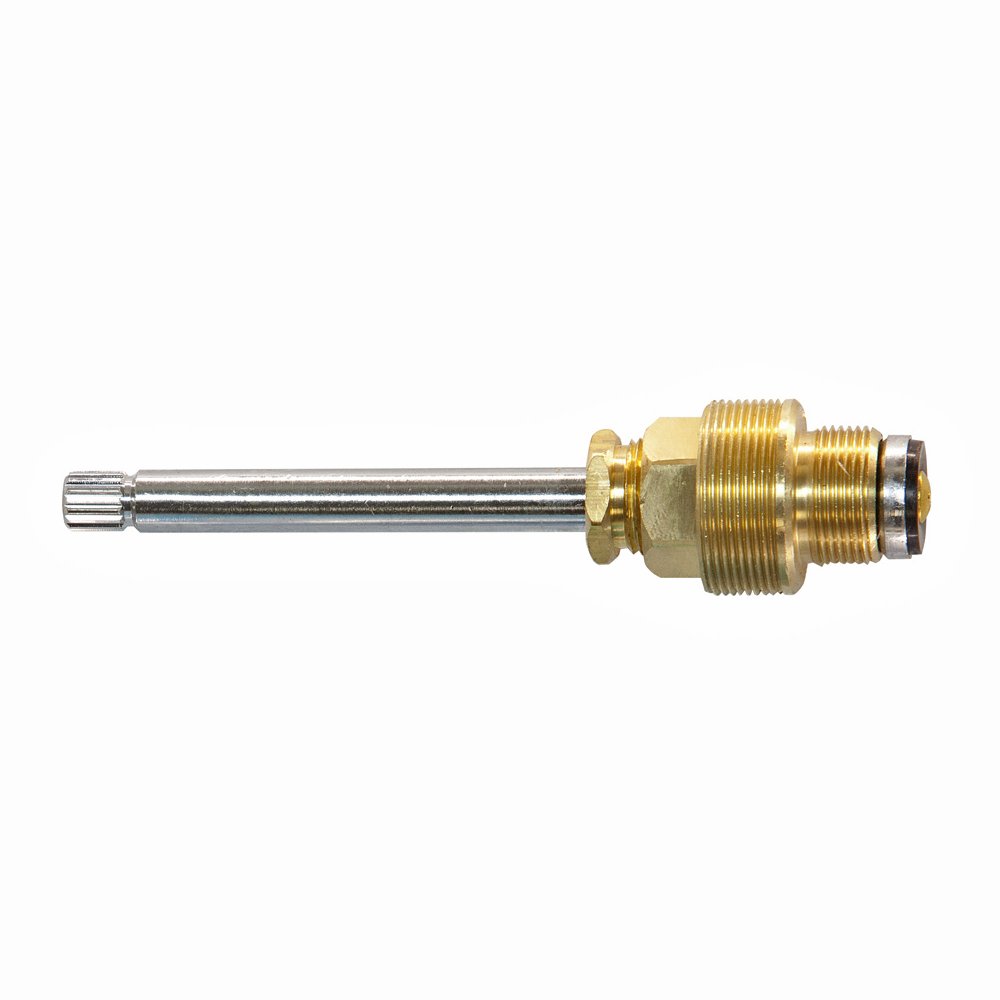

Image: The DANCO 11C-5H/C Hot/Cold Stem, a brass replacement part for faucets.

Key Features:

Constructed of durable brass for longevity.
Compatible with Central Brass tub/shower faucet models 4478, 5078-88, 5268, 5868, 6078-88, 6288, 6478, 6868, and 6988.
Designed for both hot and cold water applications.
Includes a faucet seat for complete repair.
Features an ID length of 11 and broach C.

Image: A detailed view of a faucet stem component, highlighting its construction.

Installation Instructions

This section provides general guidance for replacing a faucet stem. Specific faucet designs may vary, so always refer to your faucet's original manual if available.

Tools Required:

Adjustable wrench or basin wrench
Screwdriver (Phillips or flathead, depending on faucet handle screws)
Penetrating oil (optional, for seized parts)
Rag or towel
Flashlight (optional)

Preparation:

Turn off Water Supply: Locate the main water shut-off valve for your house or the specific shut-off valves for the tub/shower. Turn them off completely to prevent water flow during the repair.
Drain Faucet: Open the faucet handles to drain any remaining water from the lines.
Protect Surfaces: Place a rag or towel in the tub/shower basin to catch any dropped parts or tools.

Step-by-Step Installation:

Remove Faucet Handle: Typically, there is a decorative cap on the faucet handle that can be pried off. Underneath, you will find a screw. Unscrew it and remove the handle.
Remove Trim Plate/Escutcheon: If present, remove any screws holding the trim plate or escutcheon in place and carefully pull it away from the wall.
Unscrew Packing Nut/Bonnet Nut: Using an adjustable wrench, carefully loosen and remove the large hexagonal nut (often called a packing nut or bonnet nut) that holds the stem in place. This may require some force if it's seized.
Extract Old Stem: Once the nut is removed, the old stem can usually be pulled straight out. If it's stuck, gently wiggle it or use pliers.
Inspect and Clean: Examine the faucet body for any debris or mineral buildup. Clean the area thoroughly.
Install New Stem: Insert the new DANCO 11C-5H/C stem into the faucet body, ensuring it seats correctly.
Replace Packing Nut/Bonnet Nut: Hand-tighten the packing nut back onto the faucet body, then use the wrench to tighten it securely, but do not overtighten.
Reassemble Faucet: Reattach the trim plate/escutcheon and the faucet handle in reverse order of removal.
Restore Water Supply: Slowly turn the water supply back on.
Check for Leaks: Test the faucet for proper operation and check for any leaks around the stem or handle. If leaks occur, gently tighten the packing nut further.

Operation

The DANCO 11C-5H/C Hot/Cold Stem functions as the internal mechanism that controls water flow and temperature when the faucet handle is turned. Once installed, the faucet will operate as designed by the manufacturer, allowing you to adjust water output and temperature by rotating the handle.

Maintenance

To ensure the longevity and optimal performance of your DANCO faucet stem, consider the following maintenance tips:

Regular Cleaning: Keep the exterior of your faucet clean to prevent mineral buildup around the handle and stem area.
Avoid Overtightening: When turning the faucet off, avoid excessive force on the handle, as this can prematurely wear out the stem's internal components.
Address Leaks Promptly: If you notice any dripping or leaking from the faucet, address it quickly. Minor leaks can often be resolved by gently tightening the packing nut. Persistent leaks may indicate the need for a new stem or O-rings.
Water Quality: In areas with hard water, mineral deposits can accumulate. Regular flushing of the lines and occasional inspection of faucet components can help.

Troubleshooting

If you encounter issues after installing the DANCO 11C-5H/C Hot/Cold Stem, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Faucet still leaks after stem replacement	Packing nut not tight enough Damaged O-rings or washer (if not part of new stem) Faucet seat not properly installed or damaged	Gently tighten the packing nut. Ensure the new stem includes all necessary seals and that they are correctly seated. Verify the faucet seat is clean and properly installed.
Difficulty turning faucet handle	Packing nut overtightened Mineral buildup	Slightly loosen the packing nut. Disassemble and clean components, applying plumber's grease if appropriate.
No water flow or reduced flow	Water supply not fully open Debris in the line or aerator Stem not fully engaged	Ensure water shut-off valves are fully open. Check and clean the faucet aerator. Re-check stem installation to ensure it is properly seated.

Specifications

Specification	Detail
Brand	Danco
Model Name	DANCO 11C-5H/C Hot/Cold Stem for Central Brass Faucets
Model Number	17149B
Material	Brass
Color	Brass
Item Weight	0.7 Pounds
Recommended Uses	Bathroom (Tub/Shower Faucets)
Special Feature	Easy to Install
UPC	037155171491
GTIN	00037155171491

Warranty Information

This product is covered by a manufacturer's limited warranty. For specific details regarding the warranty period and coverage, please refer to the documentation included with your purchase or contact Danco customer support directly.

Customer Support

For further assistance, technical support, or inquiries regarding the DANCO 11C-5H/C Hot/Cold Stem, please contact Danco customer service. You can also visit the official Danco store for more product information and resources:
