Four Seasons 57388 Remanufactured A/C Compressor with Clutch Instruction Manual

Introduction

This manual provides essential information for the proper handling, installation, operation, and maintenance of your Four Seasons 57388 Remanufactured A/C Compressor with Clutch. Please read these instructions thoroughly before proceeding with any installation or service to ensure optimal performance and longevity of the unit. This product is designed for automotive air conditioning systems.

Product Overview

The Four Seasons 57388 is a remanufactured automotive air conditioning compressor, including a clutch. This component is crucial for the air conditioning system, circulating refrigerant to cool the vehicle's interior. Remanufactured units undergo a rigorous process to restore them to original equipment specifications, offering a cost-effective and reliable solution.

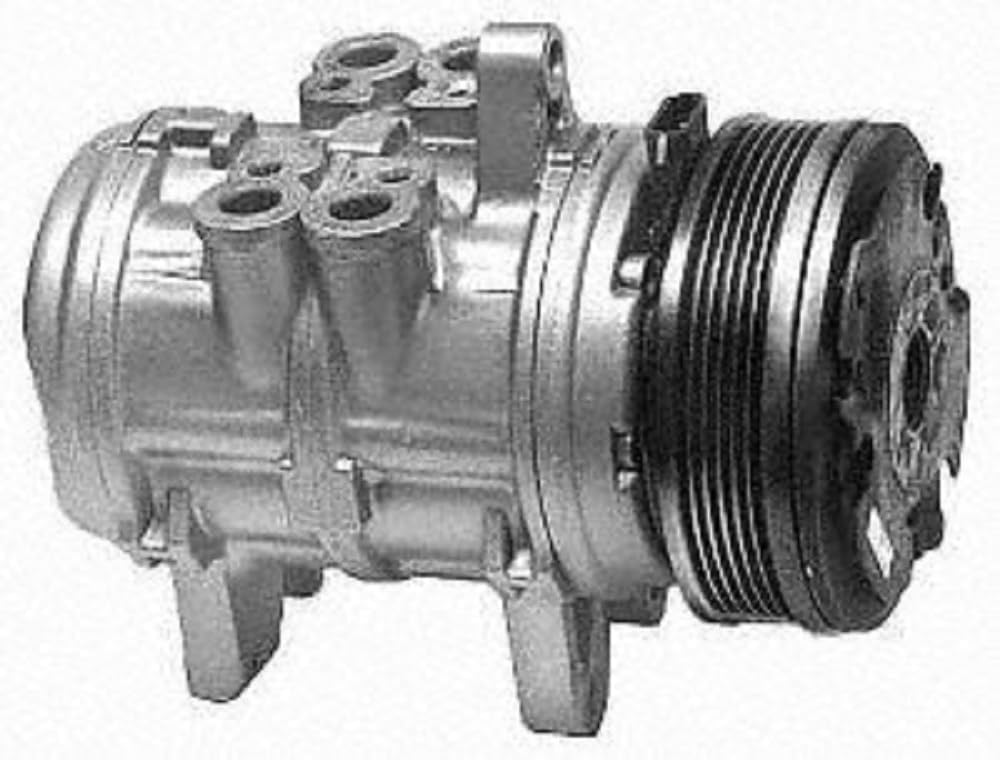

Image 1: The Four Seasons 57388 Remanufactured A/C Compressor with Clutch. This image displays the complete compressor unit, highlighting its metallic housing, various ports for refrigerant lines, and the multi-groove pulley and clutch assembly at one end.

What's in the Box

Upon opening the package, verify that all components are present and undamaged.

• One (1) Four Seasons 57388 Remanufactured A/C Compressor with Clutch (Denso 6P148A Reman Compressor)

Setup and Installation

Important Safety Information: Installation of an A/C compressor involves working with refrigerants under pressure and electrical components. It is highly recommended that installation be performed by a certified automotive technician. Improper installation can lead to system damage, personal injury, or refrigerant leaks.

1. System Flushing: Before installing the new compressor, the entire A/C system (condenser, evaporator, and lines) must be thoroughly flushed to remove any contaminants, debris, or old oil. Failure to do so will void the warranty and can cause immediate failure of the new compressor.
2. Accumulator/Drier and Orifice Tube/Expansion Valve Replacement: Always replace the accumulator/drier and orifice tube or expansion valve when replacing the compressor. These components cannot be effectively flushed and are critical for system performance and compressor protection.
3. Lubrication: Ensure the correct type and amount of PAG oil is added to the compressor and distributed throughout the system as per vehicle manufacturer specifications. The compressor may come pre-filled with shipping oil; this must be drained and replaced with the correct amount and type of oil for your specific vehicle.
4. Installation: Mount the compressor securely using appropriate hardware. Connect the refrigerant lines and electrical connectors, ensuring all connections are tight and free of leaks.
5. Vacuum and Charge: Evacuate the A/C system to remove air and moisture. Once a deep vacuum is achieved and held, charge the system with the correct type and amount of refrigerant (e.g., R-134a) according to the vehicle manufacturer's specifications.
6. Leak Check: After charging, perform a thorough leak check using an appropriate leak detector.

Operation

Once properly installed and charged, the A/C compressor operates automatically when the vehicle's air conditioning system is engaged. The compressor's clutch will cycle on and off to maintain the desired cabin temperature by circulating refrigerant through the system. Listen for unusual noises or vibrations, which may indicate a problem.

Maintenance

Regular maintenance of your vehicle's A/C system can extend the life of the compressor and ensure efficient cooling.

• Regular Inspection: Periodically inspect the compressor and its connections for signs of leaks, wear, or damage. Check the drive belt for proper tension and condition.
• System Performance Check: Have your A/C system checked annually by a qualified technician to ensure proper refrigerant levels and overall system health.
• Cabin Air Filter: Replace the cabin air filter regularly to ensure good airflow and reduce strain on the system.

Troubleshooting

If you experience issues with your A/C system, consider the following general troubleshooting steps. For complex problems, consult a professional technician.

• No Cold Air:
  • Check if the compressor clutch is engaging.
  • Verify refrigerant levels. Low refrigerant is a common cause of poor cooling.
  • Inspect for visible leaks.
• Unusual Noises:
  • Squealing or grinding noises may indicate a failing clutch bearing or internal compressor issue.
  • Check the drive belt for wear or misalignment.
• Compressor Not Engaging:
  • Check electrical connections to the clutch.
  • Verify power supply to the compressor.
  • Low refrigerant pressure can prevent the compressor from engaging as a safety measure.

Specifications

Warranty and Support

This product is offered as a remanufactured item, typically covered by a specific warranty from the seller or remanufacturer. For this particular unit, purchased via Amazon Renewed, a 90-day refund or replacement policy is generally applicable. Please refer to your purchase documentation or contact the seller directly for specific warranty terms and conditions, as well as for technical support or assistance with any product-related issues.

For further assistance, please contact the seller, PartsHawk, through your Amazon order details.
