Southwire 55274923 AC Cable Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, use, and maintenance of the Southwire 55274923 AC Cable. This cable is designed for specific electrical applications and adherence to these instructions and all applicable electrical codes is crucial for safety and optimal performance.

The Southwire 55274923 AC Cable is an annealed (soft) copper conductor cable, including a ground wire. It is primarily intended for use in residential wiring as branch circuits for outlets, switches, and other loads.

2. Safety Information

WARNING: Electrical shock hazard. Installation and servicing of electrical wiring should only be performed by qualified personnel in accordance with all national and local electrical codes.

• Always disconnect power at the main service panel before installing or working with electrical wiring.
• Use appropriate personal protective equipment (PPE) such as insulated gloves and safety glasses.
• Ensure all connections are secure and properly insulated.
• Do not exceed the cable's specified voltage and ampacity ratings.
• Inspect the cable for any damage before installation. Do not install damaged cable.

3. Setup and Installation

The Southwire 55274923 AC Cable is suitable for both exposed and concealed work in normally dry locations. It can also be run in air voids of masonry block or tile walls, provided such walls are not subject to excessive moisture or dampness.

3.1. General Guidelines

• Temperature Rating: The cable is rated for temperatures not to exceed 90 degrees C. However, ampacity must be limited to that for 60 degree C conductors, as specified in the National Electrical Code (NEC).
• Voltage Rating: The voltage rating for this NM-B cable is 600 volts.
• Code Compliance: All installations must comply with the National Electrical Code (NEC) and any applicable local electrical codes. The cable meets or exceeds UL Standard 83, UL Standard 719, and Federal Specification A-A-59544.

3.2. Installation Steps (General)

1. Plan the cable run, ensuring it meets code requirements for length, protection, and support.
2. Cut the cable to the required length, allowing for connections.
3. Carefully strip the outer jacket and individual conductor insulation using appropriate tools, avoiding damage to the copper conductors.
4. Connect the conductors to the appropriate terminals (e.g., outlets, switches, junction boxes) following color coding (typically black for hot, white for neutral, bare or green for ground).
5. Secure the cable using approved staples or clamps at specified intervals.
6. Ensure all connections are tight and properly insulated.
7. After installation, verify continuity and proper grounding before restoring power.

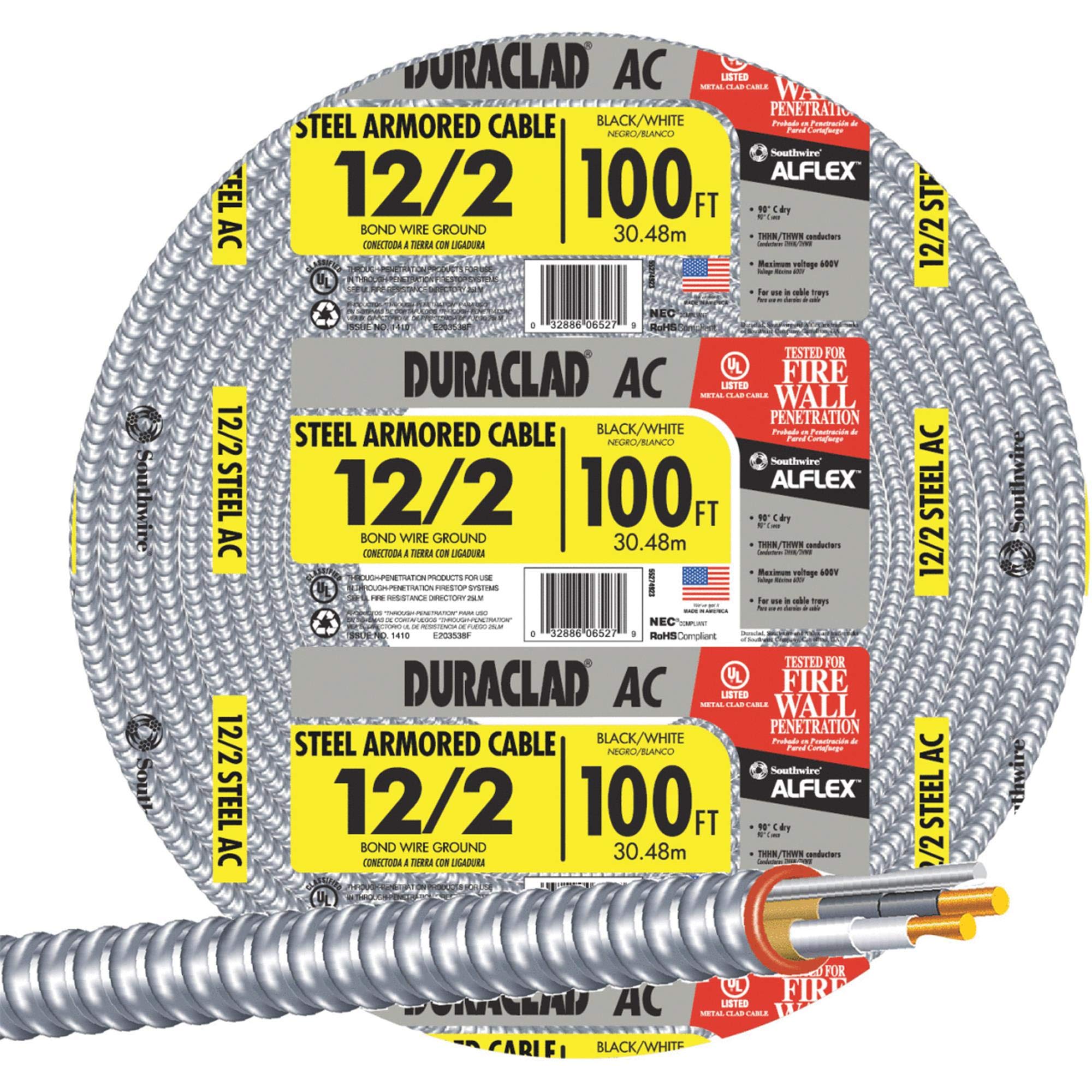

Figure 1: Southwire 55274923 AC Cable. This image shows the cable coiled, highlighting its outer jacket and flexible nature.

4. Operating Principles

Once properly installed, the Southwire 55274923 AC Cable functions as a conductor for electrical current within a residential wiring system. Its primary role is to safely deliver power to connected devices and fixtures as part of a branch circuit.

The cable's multi-strand copper conductors ensure efficient current flow, while the insulation and outer jacket provide protection against environmental factors and electrical hazards. The integrated ground wire is essential for safety, providing a path for fault currents in case of an electrical malfunction.

5. Maintenance

The Southwire 55274923 AC Cable is designed for long-term, reliable performance with minimal maintenance. However, periodic inspection of the electrical system by a qualified electrician is recommended to ensure continued safety and compliance.

• Visual Inspection: Periodically check exposed sections of wiring for any signs of damage, wear, or overheating (discoloration).
• Environmental Conditions: Ensure the cable remains in dry locations and is not exposed to excessive moisture or physical stress beyond its design limits.
• Professional Review: For any concerns regarding the electrical system, consult a licensed electrician.

6. Troubleshooting

As a passive component, the cable itself does not typically "malfunction" in the way an active device might. Most issues related to wiring involve improper installation or external damage.

• No Power to Outlet/Fixture:
  • Check circuit breaker or fuse at the main service panel.
  • Verify all connections are secure at the outlet/fixture and in any junction boxes.
  • Inspect for any visible damage to the cable.
• Frequent Tripping of Circuit Breaker:
  • This often indicates an overload or a short circuit. Disconnect appliances to check for overload.
  • If the issue persists, there may be a fault in the wiring. Immediately contact a qualified electrician.
• Visible Damage to Cable:
  • If the cable jacket or insulation is compromised, disconnect power immediately and replace the damaged section or the entire run as necessary. Do not attempt to repair damaged insulation with tape.

For any electrical issues that cannot be easily identified or resolved, always consult a licensed electrician.

7. Specifications

8. Warranty and Support

For specific warranty information regarding the Southwire 55274923 AC Cable, please refer to the documentation provided at the point of purchase or visit the official Southwire website. Southwire stands behind the quality of its products.

If you require technical assistance, have questions about installation, or need to report a product issue, please contact Southwire customer support directly. Contact information can typically be found on the product packaging or on the official Southwire website: www.southwire.com.
