1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your HPI Racing 86130 Slipper Clutch Hub, designed for HPI Savage series remote control vehicles. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.
The HPI Racing 86130 Slipper Clutch Hub is a high-quality replacement part engineered for lasting performance in HPI Savage RC vehicles. It is designed to protect your vehicle's drivetrain from damage during hard acceleration or impacts by allowing a controlled amount of slip.
2. Product Overview
The HPI Racing 86130 Slipper Clutch Hub is a crucial component for the drivetrain of your HPI Savage RC vehicle. Its primary function is to absorb sudden shocks and protect the transmission gears from excessive stress, thereby extending the lifespan of your vehicle's internal components.
- High-Quality Materials: This product is manufactured from durable materials for lasting performance.
- Drivetrain Protection: Designed to safeguard your vehicle's drivetrain from damage.
- Compatibility: Specifically for use on HPI Savage RC products. Consult your vehicle's user manual for exact parts listings and compatibility.

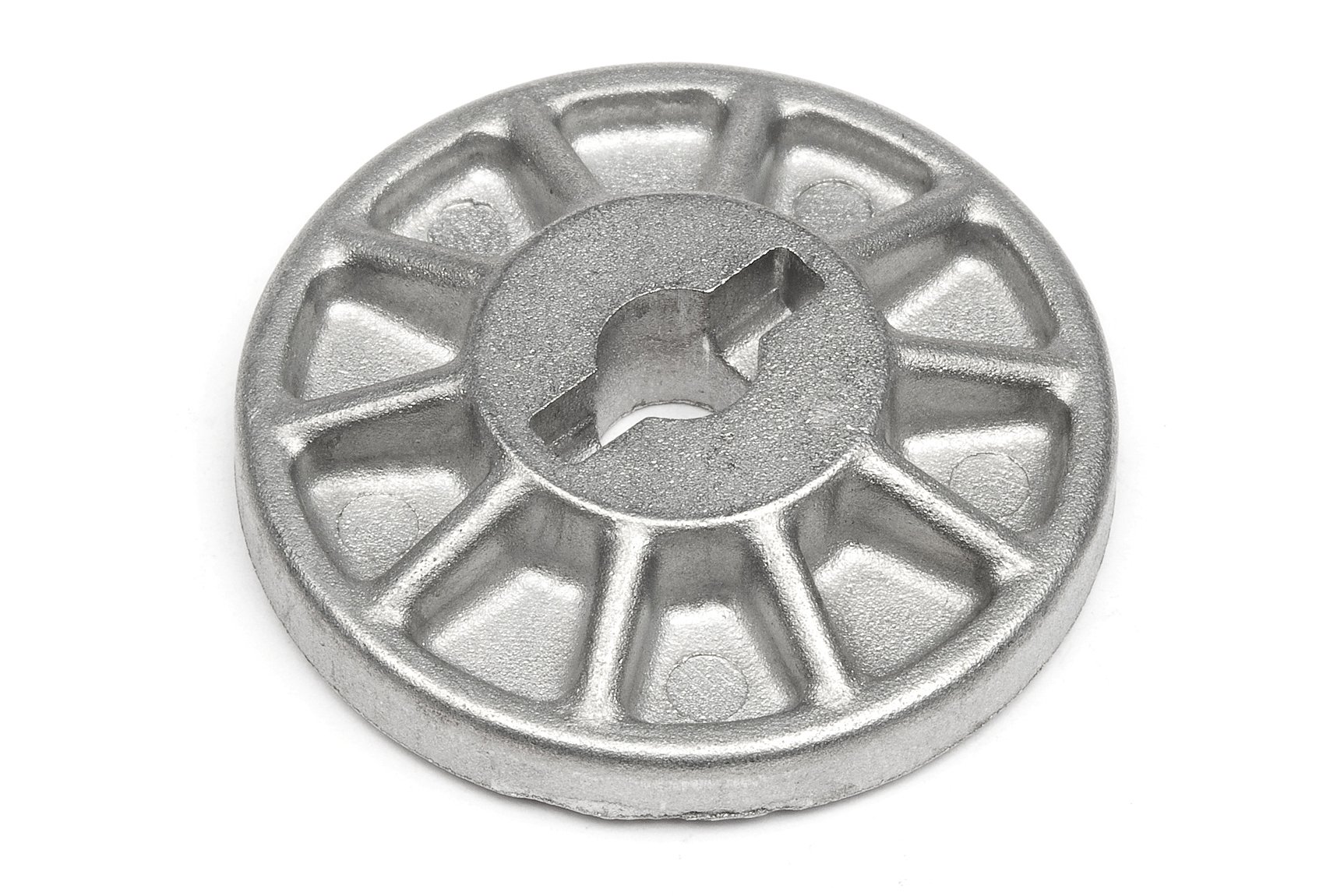

Image 1: The HPI Racing 86130 Slipper Clutch Hub. This component is essential for protecting the drivetrain of your HPI Savage RC vehicle.
3. Setup and Installation
Installation of the slipper clutch hub requires basic mechanical knowledge and appropriate tools. It is recommended to refer to your specific HPI Savage vehicle's main instruction manual for detailed disassembly and reassembly procedures of the transmission and drivetrain components.
- Disassembly: Carefully disassemble the relevant sections of your RC vehicle's drivetrain to access the existing slipper clutch assembly.
- Preparation: Ensure all mating surfaces are clean and free from dirt, grease, or old thread-locking compound.
- Installation: Install the HPI Racing 86130 Slipper Clutch Hub according to your vehicle's manual. Ensure all components are correctly oriented.
- Fasteners: Apply thread-locking compound to screws as recommended by your vehicle's manual to prevent loosening during operation.
- Reassembly: Reassemble the drivetrain and other components, ensuring all connections are secure and free-moving where intended.
4. Operating Principles
The slipper clutch is a critical component that allows a controlled amount of slip between the engine/motor and the drivetrain. This mechanism is vital for:
- Shock Absorption: Protecting gears and other components from sudden shocks and excessive stress, especially during hard landings or acceleration.
- Traction Management: Allowing the wheels to spin slightly under extreme power, preventing the vehicle from flipping over or stripping gears.
Proper adjustment of the slipper clutch is key to balancing performance and protection. A tighter slipper clutch provides more direct power transfer but offers less protection, while a looser slipper clutch offers more protection but can lead to excessive slip and reduced acceleration.
5. Maintenance
Regular inspection and maintenance of your slipper clutch hub are essential for optimal performance and longevity of your RC vehicle.
- Inspection Frequency: Inspect the slipper clutch assembly every 5-10 operating hours or after any significant impact.
- Check for Wear: Examine the slipper pads for signs of wear, glazing, cracks, or excessive thinning. Also, check the slipper plates for discoloration (indicating overheating) or warping.
- Cleanliness: Keep the slipper assembly free from dirt, dust, oil, and debris, which can affect its performance.
- Replacement: Replace worn or damaged slipper pads and plates promptly. Using worn components can lead to inconsistent performance and potential damage to other drivetrain parts.
- Adjustment: Periodically check and adjust the slipper clutch tension according to your driving style and vehicle setup.
6. Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
| Vehicle lacks acceleration or slips excessively. | Slipper clutch too loose or worn slipper pads. | Tighten the slipper clutch adjustment nut incrementally. Inspect slipper pads for wear and replace if necessary. |
| Drivetrain components (e.g., gears) breaking frequently. | Slipper clutch too tight or not slipping sufficiently. | Loosen the slipper clutch adjustment nut incrementally to allow for proper slip. |
| Unusual noises (e.g., grinding, squealing) from the slipper clutch area. | Worn or damaged slipper components, or debris trapped within the assembly. | Disassemble, inspect, clean, and replace any damaged parts. Ensure proper reassembly. |
| Slipper clutch feels 'grabby' or inconsistent. | Glazed slipper pads or contaminated surfaces. | Lightly scuff slipper pads with fine-grit sandpaper. Clean all surfaces with a degreaser and ensure they are dry before reassembly. |
7. Specifications
- Product Dimensions: 3.88 x 0.25 x 5.88 inches
- Item Weight: 0.32 ounces
- Item Model Number: HPI86130
- Manufacturer Recommended Age: 15 years and up
- Date First Available: February 24, 2007
- Manufacturer: HRP (Level 3 Products)
8. Warranty and Support
For specific warranty information regarding the HPI Racing 86130 Slipper Clutch Hub, please refer to the official HPI Racing website or the documentation provided with your original HPI Savage vehicle. Warranty terms typically cover manufacturing defects.
For technical support, parts inquiries, or further assistance, please contact HPI Racing customer service directly through their official channels. Always retain your purchase receipt as proof of purchase for any warranty claims.
