Antec HCG750 Gold

Antec HCG750 Gold Power Supply User Manual

Model: HCG750 Gold

1. Introduction

The Antec HCG750 Gold is a 750-watt, 80 PLUS Gold certified, fully modular power supply designed for personal computer systems. It features 100% Japanese capacitors for stability, a 120mm Fluid Dynamic Bearing (FDB) fan for quiet and efficient cooling, and a comprehensive suite of industrial-grade protections to ensure reliable power delivery.

This manual provides detailed instructions for the installation, operation, and maintenance of your Antec HCG750 Gold power supply. Please read this manual thoroughly before installation and retain it for future reference.

2. Safety Information

WARNING: High voltage is present inside the power supply unit. Do not open the PSU casing. There are no user-serviceable parts inside. Opening the casing will void the warranty.

  • Ensure the power supply is disconnected from the AC outlet before installation or handling.
  • Install the power supply in a well-ventilated area.
  • This product is designed for use in personal computer systems only. Using it for other applications may cause damage and will void the warranty.
  • Do not expose the power supply to moisture or extreme temperatures.
  • Professional installation is recommended if you are unfamiliar with computer hardware installation.

3. Package Contents

Verify that all components are present in your package:

  • Antec HCG750 Gold Power Supply Unit
  • Modular Cable Set (including MB 24-pin, EPS 8-pin, PCI-E 6+2 pin, SATA, Molex, FDD)
  • AC Power Cord
  • Mounting Screws
  • User Manual (this document)
Antec HCG750 Gold Power Supply with included modular cables
Image 3.1: Antec HCG750 Gold Power Supply and its complete set of modular cables.

This image displays the Antec HCG750 Gold power supply unit alongside all the modular cables provided in the package. The cables are neatly bundled, ready for connection to your system components.

4. Setup and Installation

4.1 Pre-Installation Checklist

  • Ensure your computer case supports ATX12V power supplies.
  • Gather necessary tools: Phillips head screwdriver.
  • Unplug your computer from the wall outlet and discharge any residual power by pressing the power button for a few seconds.

4.2 Physical Installation

  1. Locate the power supply mounting area in your computer case, typically at the bottom or top rear.
  2. Carefully slide the Antec HCG750 Gold power supply into the designated bay.
  3. Secure the power supply to the case using the provided mounting screws. Ensure the fan faces the correct direction for optimal airflow (usually downwards if there's a vent, or upwards if the case has no bottom vent).
Antec HCG750 Gold Power Supply, front and side view
Image 4.1: Front and side view of the Antec HCG750 Gold Power Supply, showing its compact design and modular cable ports.

This image provides a clear view of the Antec HCG750 Gold power supply from the front and side, highlighting its modular cable connections and overall form factor, which is important for case compatibility.

4.3 Cable Connections

The HCG750 Gold is a fully modular power supply, allowing you to connect only the cables your system requires. This helps improve airflow and reduce cable clutter.

Close-up of Antec HCG750 Gold modular cable ports
Image 4.2: Detailed view of the modular cable connection ports on the Antec HCG750 Gold power supply.

This image shows a close-up of the modular cable ports on the power supply. Each port is clearly labeled for its intended connection type (M/B, PCI-E/CPU, SATA/Molex), simplifying the cable management process.

  1. 24-pin Motherboard Cable: Connect the 24-pin cable to the corresponding port on your motherboard and the PSU.
  2. EPS/CPU 8-pin Cable(s): Connect the 8-pin (4+4 pin) EPS/CPU cable(s) to your motherboard's CPU power connector(s) and the PSU. Modern motherboards may require one or two 8-pin connectors.
  3. PCI-E 6+2 pin Cable(s): Connect the 6+2 pin PCI-E cable(s) to your graphics card(s) and the PSU. Ensure all required power connectors on your graphics card are utilized.
  4. SATA Cables: Connect SATA power cables to your storage drives (SSDs, HDDs) and optical drives.
  5. Molex Cables: Connect Molex cables to any peripherals that require them (e.g., older fans, fan controllers).
  6. FDD Cable (Optional): If your system requires a floppy disk drive power connector, use the FDD adapter.

Route cables neatly within your case to optimize airflow and aesthetics.

4.4 Initial Power On

  1. After all connections are secure, connect the AC power cord to the power supply and then to a wall outlet.
  2. Flip the main power switch on the back of the power supply to the "ON" (I) position.
  3. Power on your computer system.

5. Operating Instructions

5.1 Hybrid Mode Operation

Rear view of Antec HCG750 Gold with Hybrid Mode switch
Image 5.1: Rear panel of the Antec HCG750 Gold, showing the main power switch and the Hybrid Mode toggle switch.

This image displays the rear of the power supply, featuring the AC power input, the main ON/OFF switch, and a small toggle switch labeled "HYBRID MODE".

The Antec HCG750 Gold features a Hybrid Mode, controlled by a switch on the rear panel. This mode allows the 120mm FDB fan to remain off at low loads, providing absolute silence during light computing tasks. The fan will automatically activate when the power supply load increases to maintain optimal cooling.

  • Hybrid Mode ON: The fan will not spin until a certain load or temperature threshold is reached, ensuring silent operation at low power consumption.
  • Hybrid Mode OFF: The fan will spin continuously, adjusting its speed based on load and temperature. This provides consistent airflow through the PSU.

Choose the mode that best suits your preference for noise levels and cooling performance.

6. Maintenance

6.1 Cleaning

  • Regularly clean the exterior of the power supply and the fan intake/exhaust vents to prevent dust buildup.
  • Use compressed air to gently remove dust from the fan blades and heatsinks. Ensure the system is powered off and unplugged before cleaning.
  • Do not use liquid cleaners directly on the power supply.

6.2 Fan Inspection

  • Periodically check the fan for any obstructions or unusual noises.
  • If the fan is making excessive noise or not spinning when it should (outside of Hybrid Mode's silent operation), consult the troubleshooting section or contact support.

7. Troubleshooting

If you encounter issues with your Antec HCG750 Gold power supply, refer to the following common problems and solutions:

ProblemPossible CauseSolution
System does not power on.
  • AC power cord not connected or loose.
  • Main power switch on PSU is OFF.
  • Modular cables not fully seated.
  • Faulty component (motherboard, CPU, etc.).
  • Ensure AC cord is securely connected to PSU and wall outlet.
  • Flip the main power switch to "ON" (I).
  • Verify all modular cables are firmly connected to both the PSU and components.
  • Test components individually if possible, or consult a professional.
System powers on but shuts down immediately.
  • Overload or short circuit.
  • Overheating.
  • Faulty component.
  • Check for any loose connections or exposed wires that could cause a short.
  • Ensure adequate ventilation in the case.
  • Reduce system load if possible.
  • Contact support if the issue persists.
Fan is not spinning (in Hybrid Mode OFF).
  • Fan obstruction.
  • Fan malfunction.
  • Ensure no cables or debris are blocking the fan.
  • If the fan still does not spin under load with Hybrid Mode OFF, contact Antec support.

For further assistance, please refer to the Warranty and Support section.

8. Specifications

Detailed technical specifications for the Antec HCG750 Gold Power Supply:

Model NameHCG Gold 750
BrandAntec
Output Wattage750 Watts
80 PLUS CertificationGold
Form FactorATX12V
Power Supply DesignFull Modular
Cooling MethodAir (120mm FDB Fan)
Input Voltage Range100-240 VAC
PFCActive PFC (>0.9 typical)
Capacitors100% Japanese Capacitors
ProtectionsOCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO (CircuitShield)
Dimensions (L x W x H)5.91 x 5.51 x 3.39 inches (150 x 140 x 86 mm)
Weight4.7 pounds (2.11 kg)
Connectors1x MB 24(20+4) pin, 2x 8(4+4) pin EPS 12V, 4x 8(6+2) pin PCI-E, 8x SATA, 3x Molex, 1x FDD
Antec HCG750 Gold Power Supply specification label

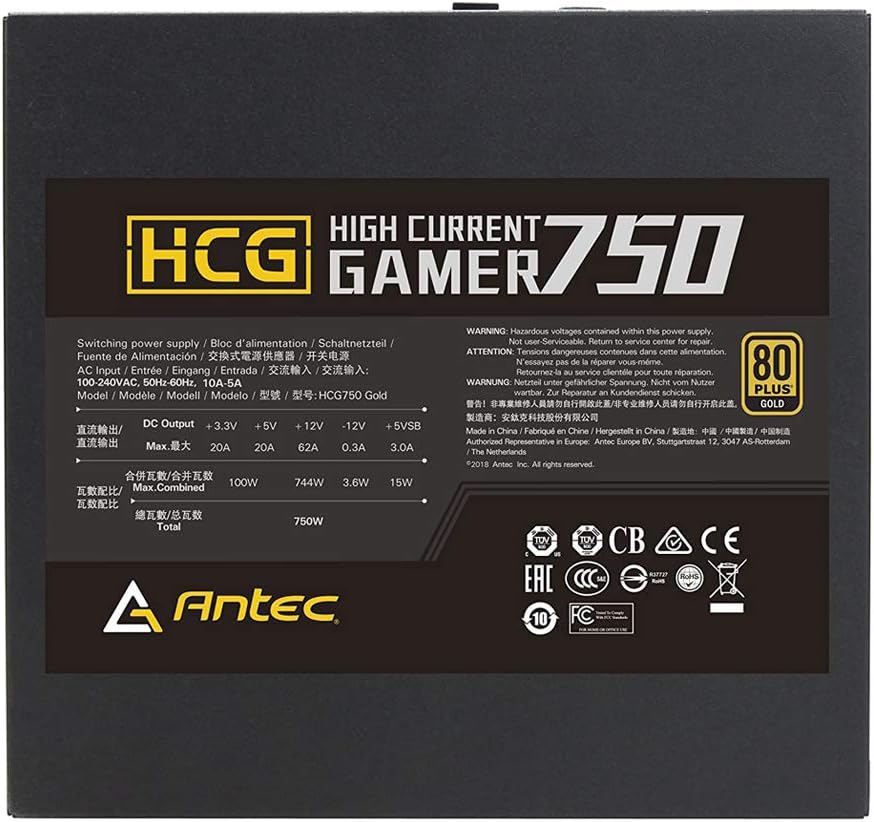

Image 8.1: The specification label on the Antec HCG750 Gold power supply, detailing electrical ratings and certifications.

This image shows the product label affixed to the power supply, which lists critical electrical specifications such as DC output voltages, maximum current for each rail, total combined wattage, and various safety certifications.

9. Warranty and Support

9.1 Limited Warranty

The Antec HCG750 Gold Power Supply is backed by a 10-Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For full warranty terms and conditions, please visit the official Antec website.

9.2 Technical Support

If you require technical assistance or have questions regarding your Antec HCG750 Gold power supply, please contact Antec Customer Support through their official website:

www.antec.com/support

When contacting support, please have your product model (HCG750 Gold) and proof of purchase readily available.

© 2023 Antec Inc. All rights reserved.
