Introduction
Thank you for choosing the Progressive Prepworks KT-1205 Kitchen Scale. This mechanical kitchen scale is designed for accurate measurement of food ingredients up to 5 pounds (2.2 kg). Its simple design and removable bowl make it a practical tool for various culinary tasks. Please read this manual carefully before using your new kitchen scale to ensure proper operation and longevity.
Product Overview
The Prepworks KT-1205 Kitchen Scale consists of a main scale unit with an analog dial and a removable measuring bowl. The dial features both standard (pounds/ounces) and metric (kilograms/grams) measurements.

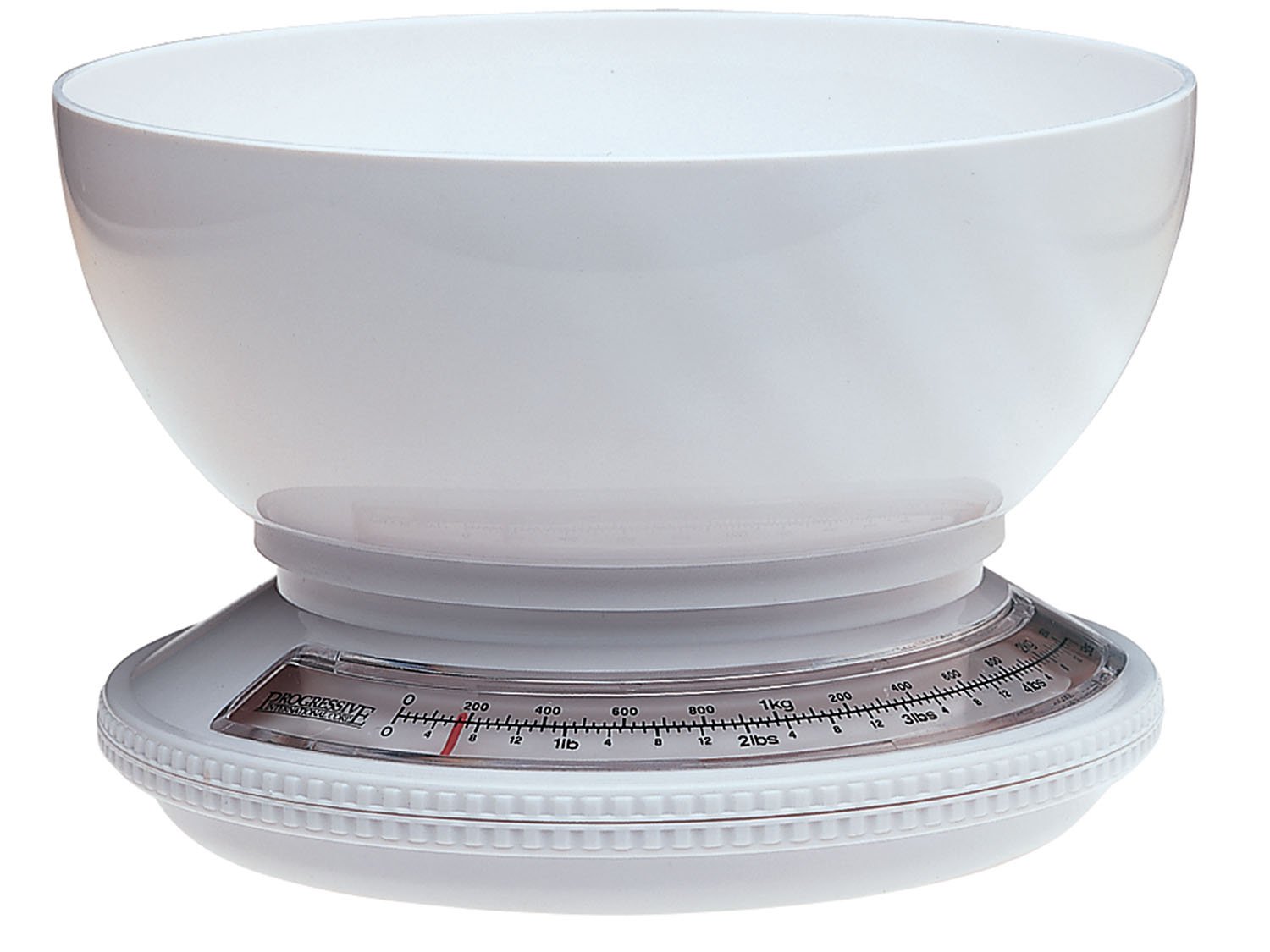

Image 1: Prepworks by Progressive Kitchen Scale with Removable Bowl. This image shows the complete kitchen scale assembly, including the white scale base with its analog dial and the clear, removable measuring bowl seated on top.
Components:
- Scale Base: Contains the weighing mechanism and the measurement dial.
- Removable Bowl: Sits on the scale base for holding ingredients.
- Measurement Dial: Displays weight in pounds/ounces and kilograms/grams.
- Zero Adjustment Ring: Located around the base of the dial, used to set the scale to zero.
Setup
- Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport if desired.
- Placement: Place the scale base on a flat, stable, and level surface to ensure accurate readings. Avoid placing it near heat sources or in direct sunlight.
- Attach Bowl: Place the removable bowl securely onto the designated area on the scale base.
- Zero Adjustment: Before first use and before each new measurement, ensure the scale reads zero. If it does not, gently rotate the zero adjustment ring located around the base of the dial until the indicator points to '0' with the empty bowl in place.
Operating Instructions
Follow these steps for accurate weighing:
- Prepare the Scale: Ensure the scale is on a level surface and the removable bowl is in place. Adjust the zero point using the ring if necessary, so the indicator points to '0'.
- Add Ingredients: Carefully place the item(s) you wish to weigh into the removable bowl.
- Read Measurement: Observe the indicator on the dial. Read the weight from the scale, noting both standard (pounds/ounces) and metric (kilograms/grams) markings. The scale measures up to 5 pounds or 2.2 kilograms.
- Tare Function (Adjustable Zero Point): If you need to weigh multiple ingredients in the same bowl, or if you are using a different container, place the empty container on the scale first. Then, rotate the zero adjustment ring until the indicator points to '0'. This effectively 'tars' the weight of the container, allowing you to measure only the added ingredients.
- Remove Ingredients: Once measurement is complete, remove the ingredients and the bowl.
Important Note: This is a mechanical scale with a general readout accuracy. For highly precise measurements, a digital scale may be more suitable. Avoid exceeding the maximum weight capacity of 5 pounds (2.2 kg) to prevent damage to the scale mechanism.
Maintenance
Cleaning:
- The removable bowl can be washed by hand with warm, soapy water or placed in the top rack of a dishwasher.
- To clean the scale base, wipe it with a damp cloth. Do not immerse the scale base in water or use abrasive cleaners, as this can damage the internal mechanism.
- Ensure all parts are completely dry before reassembling or storing.
Storage:
Store the kitchen scale in a clean, dry place away from extreme temperatures and humidity. The removable bowl can be inverted and placed over the scale base for compact storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Inaccurate readings | Scale not on a level surface; zero point not adjusted; exceeding weight limit. | Place scale on a flat, stable surface. Adjust the zero point before each use. Do not exceed 5 lbs (2.2 kg). |
| Dial indicator does not return to zero | Zero adjustment ring needs calibration; internal mechanism issue. | Rotate the zero adjustment ring to align with '0'. If issue persists, contact customer support. |
| Difficulty reading dial | Poor lighting; small graduations. | Ensure adequate lighting. Note that mechanical scales may have finer graduations than digital models. |
Specifications
- Model Number: KT-1205
- Brand: Progressive Prepworks
- Type: Mechanical Kitchen Scale
- Weight Capacity: 5 lbs (2.2 kg)
- Measurement Units: Pounds/Ounces, Kilograms/Grams
- Material: Plastic
- Color: White
- Product Dimensions: Approximately 7.25 x 7.25 x 3 inches
- Item Weight: Approximately 7.2 ounces
- Special Feature: Adjustable Zero Point (Tare Function)
- Readout Accuracy: General (Low)
Warranty and Support
For information regarding warranty coverage or product support, please refer to the documentation included with your purchase or visit the official Progressive International website. Keep your purchase receipt as proof of purchase for any warranty claims.
If you experience any issues not covered in the troubleshooting section, please contact Progressive International customer service for assistance.
