Introduction
This manual provides comprehensive instructions for the safe and effective use of your Wilesco 01576 accessory. The Wilesco 01576 is a durable stainless steel component designed for use with Wilesco steam engines. Please read this manual thoroughly before operation to ensure proper function and longevity of your product.
Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Ensure the accessory is securely attached to the steam engine before operation.
- Handle hot components with caution. Use appropriate protective gear if necessary.
- Keep away from flammable materials.
- Do not modify the product in any way. Use only as intended by the manufacturer.
- Supervise children when operating steam engines and accessories.
Product Overview

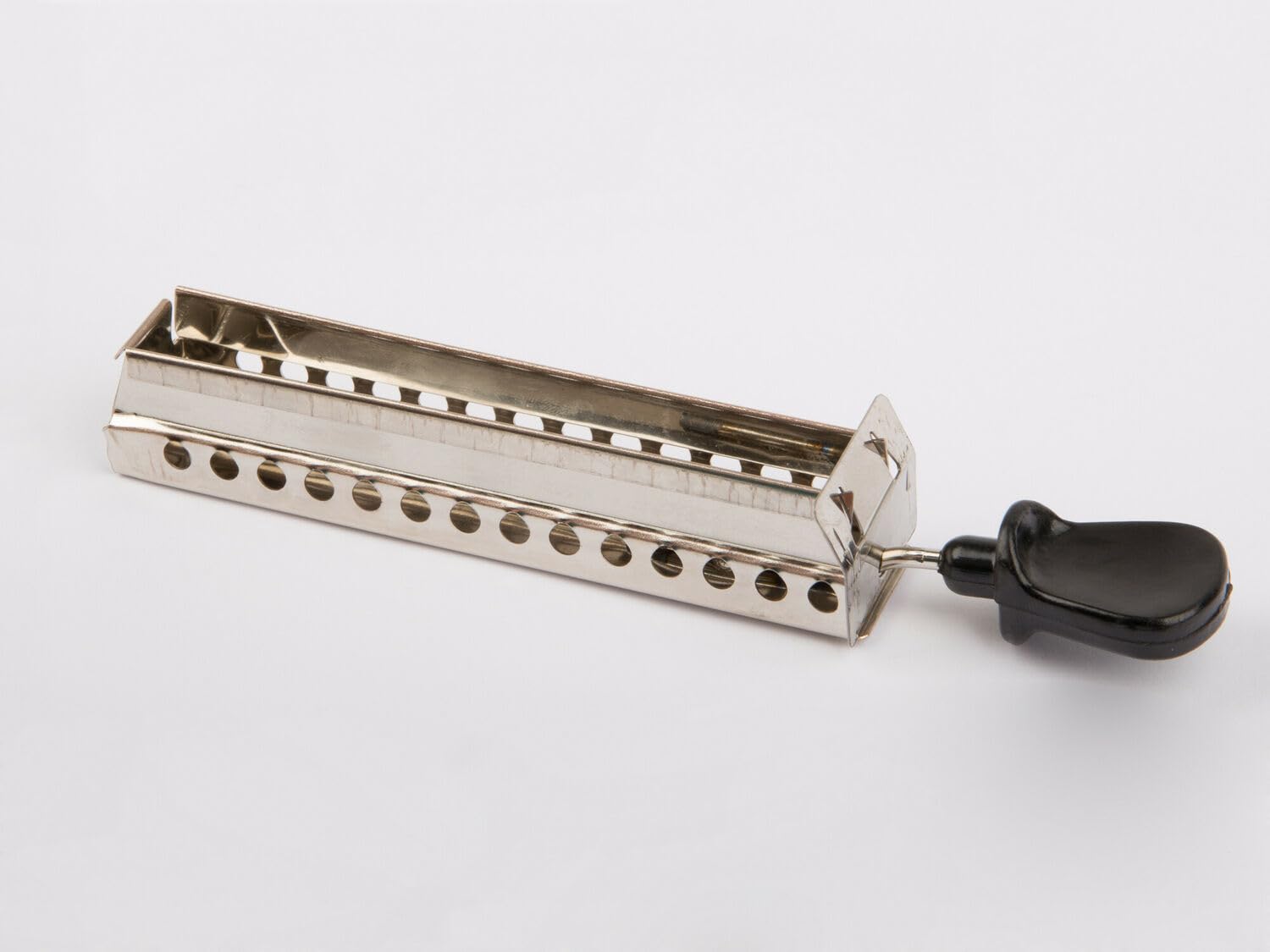

Figure 1: The Wilesco 01576 accessory. This image displays the stainless steel body of the accessory, which is rectangular and features rows of circular perforations along its sides. A black, ergonomically shaped handle is attached to one end, suggesting it is designed for insertion or manipulation within a larger system, likely a steam engine's heating mechanism.
The Wilesco 01576 is constructed from durable stainless steel, ensuring longevity and resistance to heat and corrosion. Its design suggests a function related to heat distribution or fuel containment within a Wilesco steam engine system.
Setup
- Unpacking: Carefully remove all components from the packaging. Inspect for any signs of damage.
- Familiarization: Identify the main body of the 01576 accessory and its handle.
- Integration: Refer to your specific Wilesco steam engine's instruction manual for precise instructions on how to integrate this accessory. Typically, it will slide into a designated slot or chamber designed for heating elements or fuel trays.
- Secure Placement: Ensure the accessory is firmly seated and stable before proceeding with fuel or heat application.
Operating Instructions
The Wilesco 01576 is designed to facilitate the heating process of your steam engine. Its operation is directly linked to the fuel source used by your specific Wilesco model.
- Fuel Insertion: If the 01576 acts as a fuel tray, carefully place the appropriate solid fuel tablets (e.g., Esbit tablets) into the perforated body. Do not overfill.
- Positioning: Using the black handle, slide the accessory into the designated heating chamber of your Wilesco steam engine. Ensure it is fully inserted and correctly aligned.
- Ignition: Once positioned, ignite the fuel according to your steam engine's instructions. The perforations on the 01576 are designed to allow optimal airflow for combustion.
- Monitoring: Continuously monitor the heating process. Do not leave the operating steam engine unattended.
- Removal (Post-Operation): After the steam engine has cooled down completely, carefully remove the 01576 using its handle. Be aware that residual heat may still be present.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Wilesco 01576.
- Cleaning: After each use and once the accessory has cooled, remove any ash or residue from the perforated body. A small brush or cloth can be used.
- Material Care: As it is made of stainless steel, the 01576 is resistant to rust. However, wiping it clean with a dry cloth after use will help maintain its appearance.
- Storage: Store the accessory in a dry, clean place, away from excessive moisture and dust, when not in use.
- Inspection: Periodically inspect the accessory for any signs of wear, bending, or damage. If significant damage is observed, discontinue use and consider replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Accessory does not fit into steam engine slot. | Incorrect orientation or obstruction. | Ensure correct orientation. Check for any debris in the slot or on the accessory. Do not force. |
| Fuel not igniting properly within the accessory. | Insufficient airflow or damp fuel. | Ensure perforations are clear. Use fresh, dry fuel tablets. Check steam engine's air intake. |
| Excessive smoke during operation. | Poor ventilation or incorrect fuel type. | Ensure adequate ventilation in the operating area. Use only recommended fuel for your Wilesco steam engine. |
Specifications
- Model Number: 01576
- Brand: Wilesco
- Material: Stainless Steel
- Date First Available: September 25, 2015
- Manufacturer: Wilesco
Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the official Wilesco website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
