Austin Air Healthmate Junior Replacement Filter (Model FR200B) Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, maintenance, and understanding of your Austin Air Healthmate Junior Replacement Filter, Model FR200B. Designed to fit all Austin Air Healthmate Junior air cleaner models, this filter is crucial for maintaining optimal air quality in your home or office. Please read these instructions carefully to ensure the longevity and effectiveness of your air purification system.

2. Product Overview

The Austin Air Healthmate Junior Replacement Filter (Model FR200B) is a comprehensive filtration unit designed to capture a wide range of airborne contaminants. It features a multi-stage filtration system, including a medical-grade HEPA filter and a substantial blend of activated carbon and zeolite.

Image 2.1: The Austin Air Healthmate Junior Replacement Filter (Model FR200B).

3. Compatibility

This replacement filter is exclusively designed for use with Austin Air Healthmate Junior air purifier models. It ensures a precise fit and optimal performance for these specific units. The FR200B filter is compatible with both white and sandstone colored Austin Air purifiers.

Image 3.1: White pre-filter component, indicating compatibility with white and sandstone units.

4. Filtration Technology

The FR200B filter employs a multi-stage filtration process to ensure comprehensive air purification:

1. Stage 1: Large Particle Pre-Filter: Captures larger particles such as dust, hair, and pet dander.
2. Stage 2: Medium Particle Pre-Filter: Filters out smaller particles including molds, spores, and pollen.
3. Stage 3: Activated Carbon and Zeolite Blend: Contains nearly 15 lbs of a proprietary blend of activated carbon and zeolite. This stage is highly effective at absorbing gases, chemicals, volatile organic compounds (VOCs), and odors.
4. Stage 4: Medical-Grade HEPA Filter: Features 30 square feet of medical-grade HEPA material, capable of trapping 99.97% of all airborne particulates larger than 0.3 microns, including bacteria and viruses.

Image 4.1: Visual representation of the 4-stage filtration process within the Healthmate Junior filter.

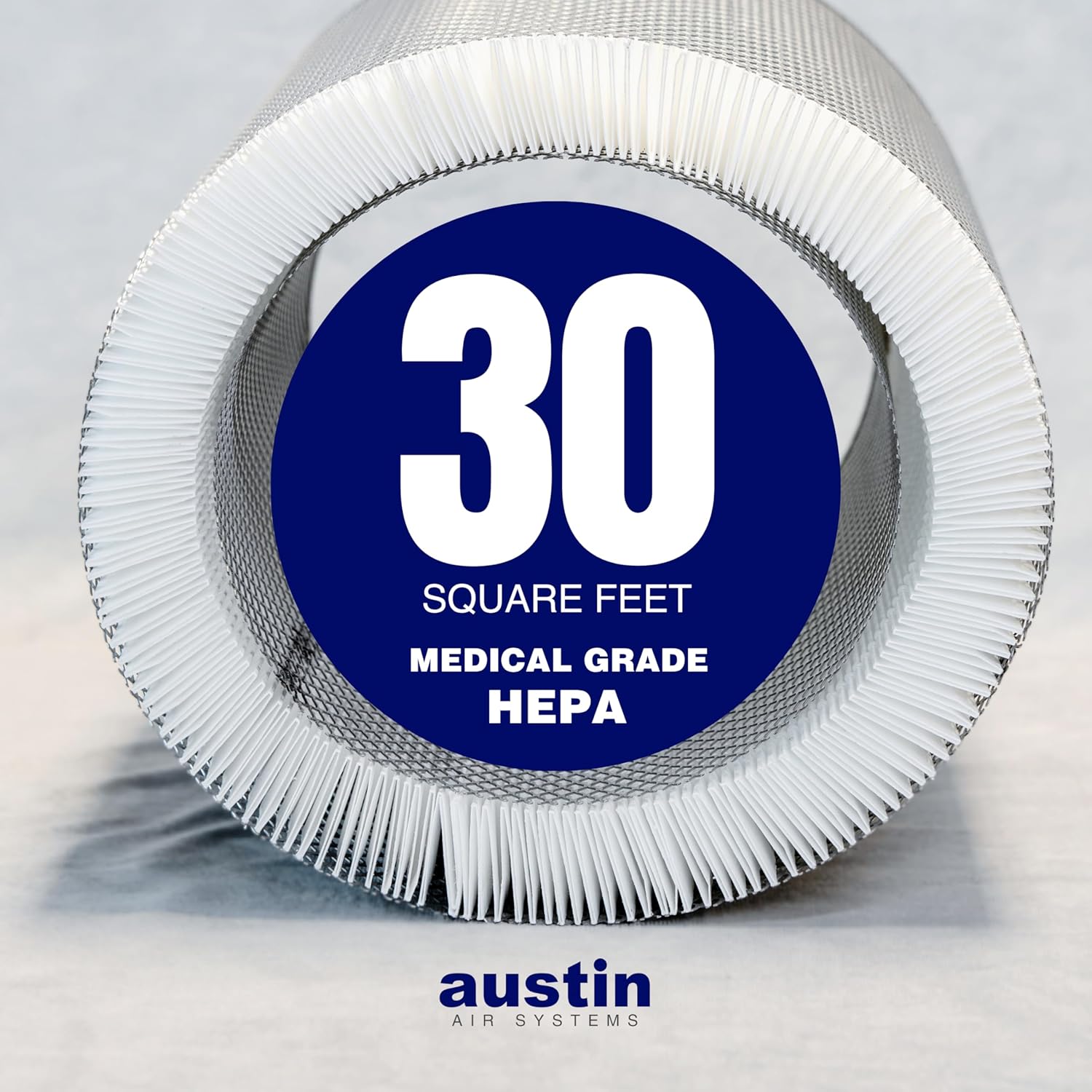

Image 4.2: Detail of the medical-grade HEPA filter, highlighting its extensive surface area.

5. Installation

Follow these steps to replace the filter in your Austin Air Healthmate Junior air purifier:

1. Power Off: Ensure the air purifier is unplugged from the power outlet before beginning the filter replacement process.
2. Access Filter Compartment: Carefully turn the air purifier upside down. Locate the screws or latches that secure the bottom plate of the unit. Remove these to access the filter compartment.
3. Remove Old Filter: Gently lift the old filter out of the unit. Note its orientation for correct installation of the new filter. Dispose of the old filter according to local regulations.
4. Install New Filter: Place the new Austin Air Healthmate Junior Replacement Filter (Model FR200B) into the compartment. Ensure the foam gaskets at the top and bottom of the filter create a 100% seal. The filter should fit snugly.
5. Secure Bottom Plate: Reattach the bottom plate of the air purifier, securing it with the screws or latches.
6. Power On: Return the air purifier to its upright position and plug it back into the power outlet.

Note: Some users may find that removing the old filter requires a firm pull due to the tight seal.

6. Maintenance

The Austin Air Healthmate Junior Replacement Filter (Model FR200B) is designed for extended performance and requires minimal maintenance.

• Filter Lifespan: This filter is engineered to provide reliable air purification for up to 5 years under normal operating conditions. Actual lifespan may vary based on air quality and usage.
• Pre-Filter Cleaning: The outer pre-filter can be vacuumed periodically to remove surface dust and extend the life of the main filter. Do not wash the filter.
• Replacement: Replace the filter unit completely after its recommended lifespan or if you notice a significant decrease in air purification effectiveness or an increase in odors.

7. Troubleshooting

If you experience issues with your air purifier after filter replacement, consider the following:

• Reduced Airflow: Ensure the filter is seated correctly and the bottom plate is securely fastened. Check for any obstructions around the air intake or output vents.
• Unusual Odors: A new filter may emit a slight odor initially, which should dissipate within a few hours of operation. If strong or persistent odors occur, verify the filter is installed correctly and is not damaged.
• Unit Not Turning On: Confirm the power cord is fully plugged into both the unit and the wall outlet. Check the power switch on the unit.

For persistent issues, refer to your air purifier's main instruction manual or contact Austin Air customer support.

8. Specifications

9. Warranty and Support

The Austin Air Healthmate Junior Replacement Filter (Model FR200B) is backed by a 5-year prorated warranty, ensuring continued filtration effectiveness. For warranty claims, technical support, or further assistance, please contact Austin Air directly.

Manufacturer: Austin Air
Website: www.austinair.com (Please refer to the official website for current contact information and support details.)
