Palmgren 9612152 1.5-Inch Drill Press Vise User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Palmgren 9612152 1.5-Inch Drill Press Vise. Please read these instructions thoroughly before initial use and retain them for future reference. This vise is designed for securing workpieces during drilling operations, ensuring stability and precision.

2. Safety Information

Always prioritize safety when operating power tools and workholding devices. Failure to follow these safety guidelines may result in injury or damage to the equipment.

• Read all instructions: Familiarize yourself with the drill press and vise operation before use.
• Wear appropriate safety gear: Always wear safety glasses or a face shield. Consider hearing protection and gloves.
• Secure the vise: Ensure the vise is firmly clamped or bolted to the drill press table to prevent movement during operation.
• Secure the workpiece: Always ensure the workpiece is tightly clamped in the vise jaws before starting any drilling operation.
• Maintain a clean work area: Keep the work area free of clutter and well-lit.
• Do not over-tighten: Apply sufficient clamping force to secure the workpiece without damaging the vise or the material.
• Inspect before use: Check the vise for any damage or loose components before each use.

3. Product Components

The Palmgren 1.5-Inch Drill Press Vise consists of several key components designed for effective workholding:

• Fixed Jaw: The stationary jaw that provides a stable clamping surface.
• Movable Jaw: The jaw that moves along the lead screw to clamp the workpiece.
• Lead Screw: The threaded rod that drives the movable jaw.
• Handle: Used to turn the lead screw, opening and closing the jaws.
• Vise Body/Base: The main structure of the vise, designed for mounting.

Figure 1: Front-side view of the Palmgren 1.5-Inch Drill Press Vise. This image shows the fixed and movable jaws, the lead screw, and the handle.

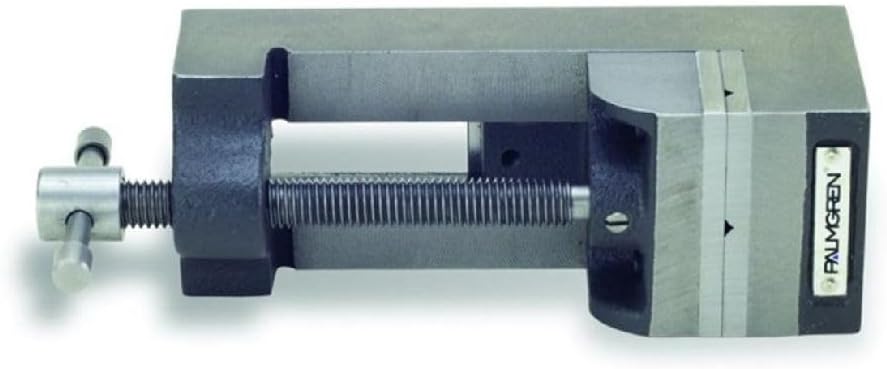

Figure 2: Top-down view of the Palmgren 1.5-Inch Drill Press Vise. This perspective highlights the lead screw mechanism and the overall compact design.

4. Setup

Proper setup of the drill press vise is crucial for stability and accuracy.

1. Clean the Drill Press Table: Ensure the drill press table is clean and free of debris to allow the vise to sit flat.
2. Position the Vise: Place the vise on the drill press table in the desired orientation. The vise can be used on its base, sides, or end depending on the workpiece and drilling requirements.
3. Secure the Vise: Although this model does not feature lugs, it typically includes mounting holes in the base. Use appropriate T-slot bolts and clamps (not included) to firmly secure the vise to the drill press table. Ensure there is no movement or play.
4. Align with Drill Bit: Adjust the position of the vise on the table so that the drilling point on your workpiece will be directly under the drill bit.

5. Operating Instructions

Follow these steps for safe and effective use of your drill press vise:

1. Open Jaws: Turn the vise handle counter-clockwise to open the jaws sufficiently to accommodate your workpiece.
2. Place Workpiece: Carefully place the workpiece between the jaws. Ensure it is seated firmly and squarely against the fixed jaw.
3. Close Jaws: Turn the vise handle clockwise to close the jaws until the workpiece is securely clamped. Do not over-tighten, as this can damage the workpiece or the vise. The jaws are designed to hold round stock both horizontally and vertically.
4. Verify Security: Gently attempt to move the workpiece by hand to confirm it is held firmly and will not shift during drilling.
5. Perform Drilling: Proceed with your drilling operation according to your drill press manufacturer's instructions.
6. Release Workpiece: After drilling, turn the handle counter-clockwise to release the workpiece.

6. Maintenance

Regular maintenance will extend the life and performance of your Palmgren drill press vise.

• Cleaning: After each use, clean the vise to remove chips, dust, and debris. Use a brush or compressed air.
• Lubrication: Periodically apply a light machine oil to the lead screw and other moving parts to ensure smooth operation and prevent rust.
• Inspection: Regularly inspect the jaws, lead screw, and handle for wear, damage, or looseness. Replace or tighten components as necessary.
• Storage: Store the vise in a clean, dry environment when not in use.

7. Troubleshooting

If you encounter issues with your vise, refer to the following common problems and solutions:

• Jaws sticking or difficult to move:
  • Clean the lead screw and jaw slides thoroughly.
  • Apply a light lubricant to the lead screw and moving parts.
• Workpiece slipping:
  • Ensure the vise is securely mounted to the drill press table.
  • Increase clamping pressure, but do not over-tighten.
  • Check jaws for wear or damage that might reduce grip.
• Vise not sitting flat:
  • Clean the bottom surface of the vise and the drill press table.
  • Check for any foreign objects or damage to either surface.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or replacement parts, please contact Palmgren directly through their official website or customer service channels. Retain your purchase receipt as proof of purchase may be required for warranty claims.
