Unistar DF268 4-in-1 Swamp Cooler with Ionic Air Purifier User Manual

Important Safety Instructions

Please read all instructions carefully before operating this appliance. Retain this manual for future reference.

• Always ensure the unit is placed on a stable, level surface.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug the unit from the power outlet when not in use, before cleaning, or when moving.
• Avoid spilling water or any other liquid onto the control panel.
• Keep children and pets away from the appliance during operation.
• Do not operate the unit with a damaged cord or plug. Contact qualified service personnel for repair.
• Ensure all packaging materials are removed before connecting the unit to power.
• Use only ordinary tap water in the water tank.
• Do not block the air intake or outlet vents.

Product Overview

The Unistar DF268 is a versatile 4-in-1 appliance designed to improve your personal space comfort. It functions as an evaporative cooler, fan, air purifier, and humidifier. Key features include:

• 4-in-1 Functionality: Evaporative Cooler, Fan, Ionic Air Purifier, and Humidifier.
• 3-Speed Fan: Provides adjustable airflow.
• Ionic Air Purifier: Helps clean the air.
• Anti-Bacterial Cooling Chamber: Enhances air quality.
• Remote Control: For convenient operation from a distance (up to 6 meters).
• Humidity Control: Manages moisture levels.
• Rolling Curtain Filter: Filters incoming air.
• Ice Container: Designed to hold ice or ice substitute containers for enhanced cooling.
• Portability: Equipped with 4 wheels for easy movement.
• Slim Design: Space-saving profile.
• 7.5-Hour Timer: Allows for programmed operation.
• 2 Fan Modes: Offers different airflow patterns.
• Oscillation Louver: Distributes air across a wider area.
• Includes two reusable blue colored ice substitute containers.

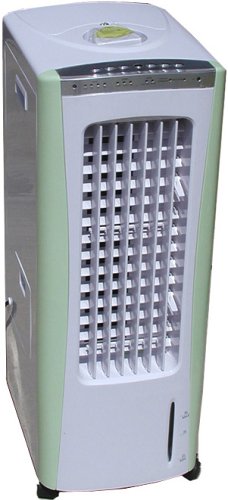

Image 1: Front view of the Unistar DF268 4-in-1 Swamp Cooler. This image shows the main body of the unit, including the control panel, air outlet, and wheels.

Setup

1. Unpacking: Carefully remove the unit from its packaging. Ensure all foam covers and protective materials are removed before use.
2. Placement: Position the cooler on a firm, level surface. Its moving wheels allow for easy placement on a tabletop, desk, or nightstand, or on the floor.
3. Fill Water Tank: Open the water tank access and fill with clean tap water. Do not overfill beyond the maximum level indicator.
4. Add Ice Substitutes: For enhanced cooling, place the two reusable blue colored ice substitute containers (or regular ice) into the designated ice container within the water tank.
5. Connect Power: Plug the power cord into a standard 120V, 60Hz electrical outlet.

The unit is ready to operate once water and ice substitutes are added and it is connected to power. No assembly is required.

Operating Instructions

The Unistar DF268 can be operated using the control panel on the unit or the included remote control.

Control Panel / Remote Functions:

• Power ON/OFF: Press the power button to turn the unit on or off. When turned off, the unit enters a 'STAND-BY' situation.
• Fan Speed: Select from 3 fan speeds (Low, Medium, High) to adjust airflow intensity.
• Fan Mode: Choose between 2 fan modes for different airflow patterns (e.g., Normal, Natural, Sleep - specific modes may vary).
• Timer: Set the operating time up to 7.5 hours. The unit will automatically turn off after the set time.
• Oscillation: Activate the oscillation louver to distribute air across a wider horizontal range. The louver has 2 segments for control.
• Ionizer: Turn on the ionizer function to help purify the air.
• Humidity Control: Adjust settings related to humidity output (if applicable, refer to specific model features).

Note: The unit will emit a 'Di' sound each time a function key is pressed, except for the OFF key.

Maintenance

Regular maintenance ensures optimal performance and longevity of your Unistar DF268 cooler.

• General Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Water Tank Cleaning: Drain and clean the water tank regularly, especially if the unit is not used for extended periods. This prevents mold and mildew growth.
• Filter Cleaning: The rolling curtain filter and anti-virus filter should be cleaned periodically. In dusty environments, clean at least once every one to two months. Refer to the diagram in the manual (if available) for filter removal and reinstallation. Rinse filters under running water and allow them to air dry completely before reinserting.
• Ice Basin Cleaning: Occasionally wipe down the ice basin to prevent residue buildup.
• Deep Cleaning: For thorough cleaning, the unit can be partially disassembled. This process typically takes about twenty minutes. Ensure the unit is unplugged before attempting any disassembly.
• Storage: When storing the unit, ensure the water tank is empty and clean, and the filters are dry. Store in a cool, dry place.

Troubleshooting

If you encounter issues with your Unistar DF268, refer to the following common problems and solutions:

Note: Evaporative coolers, also known as "swamp coolers," cool by adding moisture to the air. They are most effective in dry environments and may not significantly lower room temperature in humid conditions. They consume significantly less electricity than traditional air conditioners.

Specifications

• Model: DF268
• Power Consumption: 75 Watts
• Voltage: 120V, 60Hz
• Unit Dimensions (H x W x D): Approximately 28" x 13" x 11" (71cm x 33cm x 28cm)
• Cooling Area: Air blows outward approximately 7 feet from the unit.
• Temperature Reduction: Reduces personal space air temperature up to 12°F (6.7°C).
• Ice Container Effect: Can lower water temperature by 3-8°F.
• Remote Control Range: Up to 6 meters (approximately 20 feet).

Warranty and Support

The Unistar DF268 4-in-1 Swamp Cooler comes with a 1-year limited warranty from the date of purchase.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair.

For warranty claims, technical support, or service inquiries, please contact the manufacturer or your retailer with your proof of purchase.
