Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your OTC 4021 Air/Hydraulic Pump with Remote Control Actuator. Please read this manual thoroughly before using the product and retain it for future reference.
The OTC 4021 is a robust air/hydraulic pump designed to provide reliable power for various automotive and industrial applications. Utilizing shop air as its energy source, it delivers up to 10,000 PSI of hydraulic pressure, making it suitable for driving large rams, presses, and hydraulic pullers. Its 80 cubic inch usable oil capacity ensures compatibility with demanding tasks. The integrated remote control actuator enhances operational flexibility and safety.
Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and protective footwear, when operating this equipment.
- Ensure the work area is clean, well-lit, and free from obstructions.
- Do not exceed the maximum rated pressure of 10,000 PSI.
- Verify that all connections are secure and leak-free before applying pressure.
- Never attempt to repair or modify the pump while it is under pressure.
- Keep hands and body clear of moving parts and hydraulic components during operation.
- Disconnect the air supply before performing any maintenance or adjustments.
- Use only hydraulic fluid recommended by the manufacturer.
- Do not use this pump for lifting or supporting loads without proper safety stands or blocking.
Components and Parts List
The OTC 4021 Air/Hydraulic Pump with Remote Control Actuator typically includes the following components:
- OTC 4021 Air/Hydraulic Pump Unit
- Remote Control Actuator with 15-foot cord
- Plastic Reservoir (105 cubic inch capacity)
- Air Inlet Connection (for 9 CFM at 100 PSI air pressure)
- Hydraulic Outlet Port (3/8 inch NPTF)
- User Manual (this document)

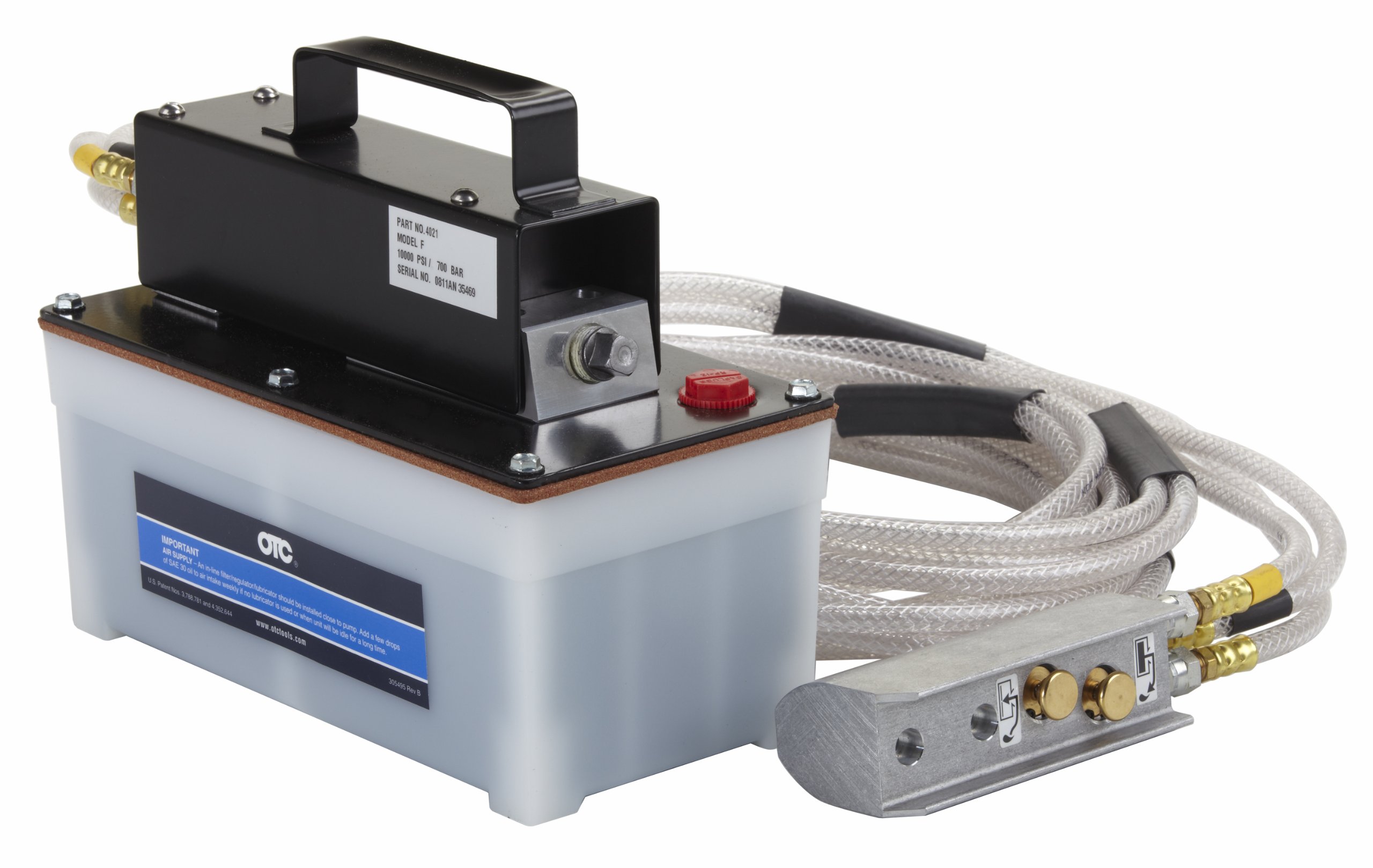

Image: The OTC 4021 Air/Hydraulic Pump with its remote control actuator. This image displays the main unit, highlighting its compact design and the attached remote for operational convenience.
Setup Instructions
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Placement: Position the pump on a stable, level surface. Ensure adequate ventilation around the unit.
- Air Supply Connection: Connect a clean, dry air supply line to the pump's air inlet. The pump requires a minimum of 9 CFM at 100 PSI air pressure for optimal performance. Ensure the air supply is regulated to prevent over-pressurization.
- Hydraulic Connection: Connect the hydraulic hose from your ram, press, or puller to the pump's 3/8 inch NPTF oil port. Use appropriate thread sealant and ensure connections are tight to prevent leaks.
- Fluid Level Check: Verify the hydraulic fluid level in the plastic reservoir. If necessary, add recommended hydraulic fluid, ensuring it does not exceed the maximum fill line.
- Remote Control: Ensure the remote control actuator cord is securely connected to the pump.
Operating Instructions
- Pre-Operation Check: Before each use, inspect the pump, hoses, and connections for any signs of damage or leaks. Confirm the air supply is connected and regulated to 100 PSI.
- Activating the Pump: With the air supply connected, press and hold the activation button on the remote control actuator. The pump will begin to build hydraulic pressure.
- Applying Pressure: Continue holding the activation button until the desired hydraulic pressure is achieved, or the ram/tool reaches its operational limit. The pump is designed to develop up to 10,000 PSI at 100 PSI air pressure.
- Releasing Pressure: To release hydraulic pressure and retract the ram/tool, use the release mechanism on the remote control. The two-stage release mechanism allows for either a fast or metered return, reducing hydraulic shock.
- Monitoring: Always monitor the pressure gauge (if equipped on your hydraulic tool) and the operation of the hydraulic system during use.
- Shut Down: After use, release all hydraulic pressure, disconnect the air supply, and store the pump in a clean, dry location.
Maintenance
Regular maintenance ensures the longevity and reliable performance of your OTC 4021 pump.
- Fluid Level: Periodically check the hydraulic fluid level in the reservoir. Refill with recommended hydraulic fluid as needed.
- Fluid Replacement: Replace hydraulic fluid according to the manufacturer's recommendations or if it appears contaminated.
- Air Filter: Inspect and clean or replace the air filter on your air supply system regularly to ensure clean air reaches the pump.
- Hoses and Connections: Regularly inspect hydraulic hoses and connections for wear, cracks, or leaks. Replace damaged components immediately.
- Cleaning: Keep the exterior of the pump clean and free from dirt and debris.
- Storage: Store the pump in a dry, protected environment when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not building pressure | Low air supply pressure; Insufficient hydraulic fluid; Air in hydraulic system; Leaking connections. | Ensure air supply is 100 PSI; Check and refill hydraulic fluid; Bleed air from the system; Tighten all connections. |
| Slow ram extension/retraction | Low air supply; Contaminated hydraulic fluid; Obstruction in hydraulic line. | Verify air supply pressure; Replace hydraulic fluid; Inspect and clear hydraulic lines. |
| Hydraulic fluid leaks | Loose connections; Damaged seals or hoses. | Tighten all connections; Inspect and replace damaged seals or hoses. |
| Pump runs continuously without building pressure | Internal relief valve issue; Significant internal leak. | Contact authorized service center for repair. |
Specifications
- Model: OTC 4021
- Type: Air/Hydraulic Pump
- Maximum Hydraulic Pressure: 10,000 PSI
- Air Pressure Requirement: 100 PSI (9 CFM)
- Usable Oil Capacity: 80 cubic inches
- Reservoir Capacity: 105 cubic inches (plastic)
- Hydraulic Port: 3/8 inch NPTF
- Remote Control Cord Length: 15 feet
- Item Weight: 19.25 pounds
- Product Dimensions: 15 x 11 x 8.5 inches
Product Video
Video: "OTC Tools and Equipment Flat Rate V2". This video showcases various OTC tools and equipment in action, demonstrating their application in automotive repair and maintenance. It highlights the quality and utility of OTC products, including hydraulic tools similar to the 4021 pump.
Warranty and Support
OTC products are known for their durability and quality. Many OTC tools, including this pump, come with a Lifetime Warranty, reflecting the manufacturer's commitment to excellence. For specific warranty details, please refer to the warranty card included with your product or visit the official OTC website.
For technical assistance, replacement parts, or warranty claims, please contact OTC Customer Support. Contact information can typically be found on the product packaging or the official OTC website.
Manufacturer: OTC
Model: 4021
