Remo Fiberskyn Drumhead 13" Instruction Manual

Product Overview

The Remo Fiberskyn Drumhead is designed to deliver a dark, warm, and round tone, making it ideal for traditional jazz, concert snare drums, bass drums, and tom-toms. Its unique Fiberskyn film construction also provides an authentic ethnic drum sound for World Percussion instruments.

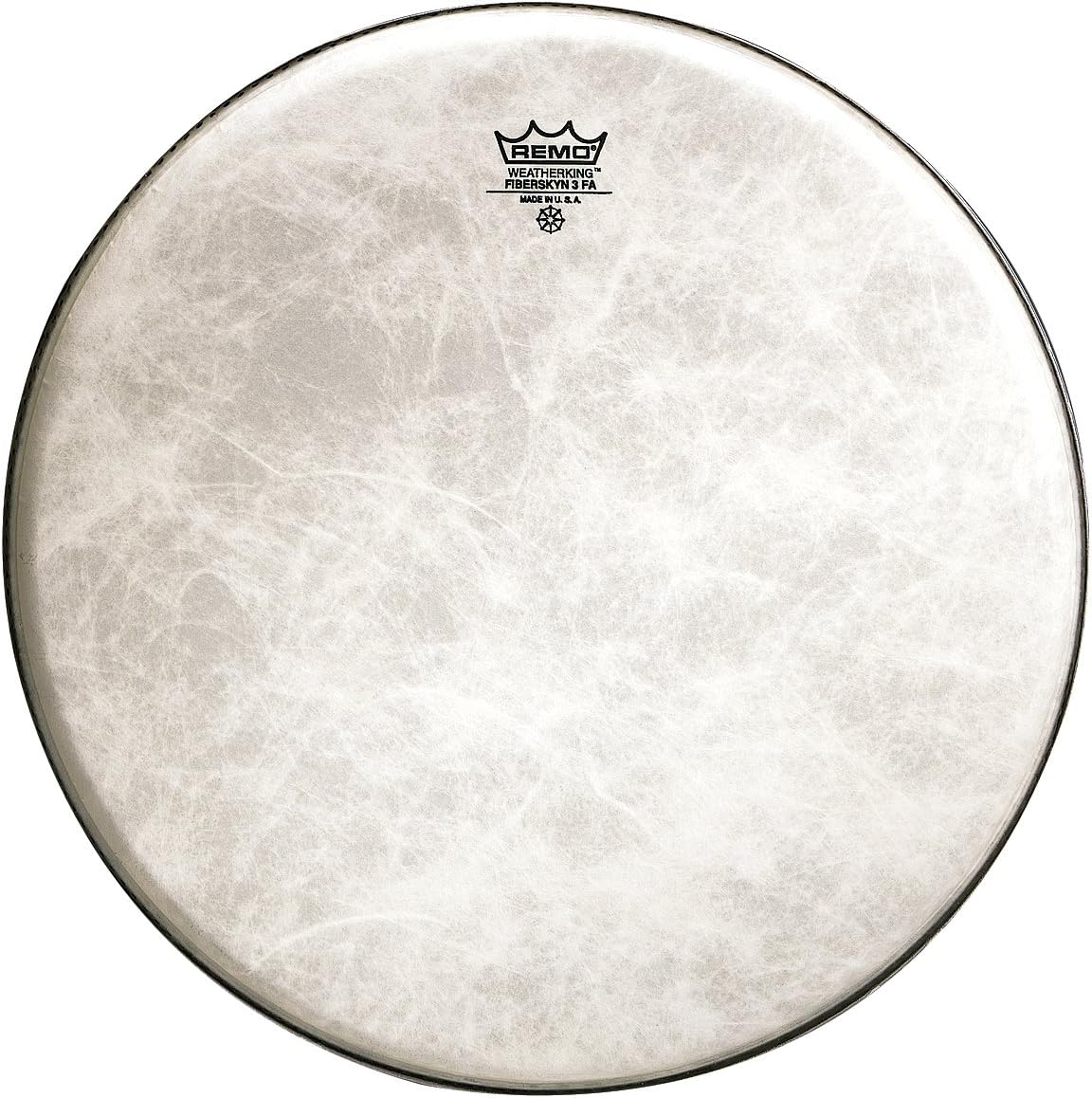

Image: A 13-inch Remo Fiberskyn drumhead, featuring its distinctive textured, off-white surface. The Remo logo and "WEATHERKING™ FIBERSKYN® 3 FA MADE IN U.S.A." text are visible in the center of the head.

Setup and Installation

Proper installation of your Remo Fiberskyn drumhead is crucial for optimal sound and longevity. Follow these steps for a successful setup:

1. Remove Old Drumhead: Carefully loosen all tension rods on the drum hoop using a drum key. Once loose, remove the hoop and the old drumhead.
2. Clean Bearing Edge: Inspect the drum's bearing edge (the rim where the drumhead sits). Ensure it is clean and smooth. Any debris or imperfections can affect tuning and sound.
3. Place New Drumhead: Center the new Remo Fiberskyn drumhead on the drum shell. Ensure it sits evenly on the bearing edge.
4. Place Hoop and Finger Tighten: Place the drum hoop over the drumhead, aligning the holes with the lugs. Insert all tension rods and finger-tighten them until they just make contact with the hoop.
5. Initial Tuning (Star Pattern): Using a drum key, begin tightening the tension rods in a star pattern (opposite lugs). Turn each rod a quarter turn at a time, moving around the drum until the head is snug but not tight.
6. Seat the Head: Gently press down on the center of the drumhead with your palm to help seat it properly. You may hear a slight crackling sound; this is normal.
7. Fine Tuning: Continue tightening the tension rods in the star pattern, listening to the pitch at each lug point. Aim for an even pitch around the entire drumhead. Adjust as needed to achieve your desired tone.

Note: For detailed tuning techniques, consult online resources or a professional drum technician.

Operating and Sound Characteristics

The Remo Fiberskyn drumhead is known for its unique sonic qualities. Understanding these characteristics will help you maximize its performance:

• Warm, Dark Tone: This drumhead produces a rich, warm, and dark sound, making it excellent for genres requiring a classic, vintage drum sound.
• Reduced Overtones: Compared to clear or coated heads, Fiberskyn heads naturally dampen some higher-frequency overtones, resulting in a more focused and controlled sound.
• Authentic Ethnic Sound: When used on World Percussion instruments, the Fiberskyn provides an authentic, traditional sound, mimicking natural animal skins.
• Dynamic Response: The Fiberskyn surface offers a unique feel and response to sticks, brushes, and mallets, allowing for a wide range of dynamic expression.

Experiment with different tuning tensions to explore the full tonal range of your Fiberskyn drumhead. Lower tensions will emphasize warmth and depth, while higher tensions will provide more attack and clarity.

Maintenance and Care

To ensure the longevity and consistent performance of your Remo Fiberskyn drumhead, follow these maintenance guidelines:

• Regular Cleaning: Wipe the drumhead surface with a soft, dry, or slightly damp cloth to remove dust, stick marks, and grime. Avoid harsh chemicals or abrasive cleaners.
• Avoid Punctures: Be mindful of sharp objects that could puncture or tear the drumhead film.
• Even Tension: Periodically check and adjust the tension rods to ensure even tension across the head. Uneven tension can lead to warping or premature wear.
• Storage: If removing the drumhead for storage, keep it flat and protected from extreme temperature changes or direct sunlight, which can affect the film's integrity.

Troubleshooting

Here are some common issues and their potential solutions:

Specifications

• Product Type: Drumhead
• Brand: Remo
• Model Name: FA051300
• Model Number: 812913
• Size: 13 inches
• Material Type: Fiberskyn (Alloy Steel hoop)
• Color: Multicoloured (Fiberskyn texture)
• Item Weight: 3.5 ounces
• Product Dimensions: 13 x 13 x 0.75 inches
• UPC: 757242148983
• Included Components: 1x drum head

Warranty and Support

Remo products are manufactured to high standards. For specific warranty information and support inquiries, please refer to the official Remo website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Remo Official Website: www.remo.com

For further assistance, you may also contact the retailer where the product was purchased.
