Product Overview
The K&N 62-1360 Vent Air Filter/Breather is designed for various automotive applications requiring a compact, high-flow air filtration solution. This filter features a washable and reusable design, intended to provide efficient filtration and contribute to engine performance over an extended period. It is constructed with durable materials for secure attachment and vibration absorption.
Image: The K&N 62-1360 Vent Air Filter/Breather, featuring a red filter element and a chrome top with the K&N logo.
Key Features
- The air filter media is designed to optimize airflow, which can contribute to improved engine performance.
- Installation is simplified by a pre-oiled, clamp-on design.
- This filter is reusable and washable, reducing the need for frequent disposable filter replacements.
- The reusable nature of the filter contributes to reduced waste compared to disposable alternatives.
- The filter is designed to protect the engine from contaminants.
Installation Guide
The K&N 62-1360 Vent Air Filter/Breather is designed for straightforward installation due to its clamp-on design. Ensure the engine is off and cool before beginning installation. Identify the appropriate vent or breather hose connection point on your vehicle's engine. Securely attach the filter using the integrated clamp, ensuring a tight seal to prevent unfiltered air entry. No specialized tools are typically required for this process.
Image: A person holding a K&N air filter, illustrating the general process of handling an air filter during installation.
Image: A close-up view of a K&N air filter being held, demonstrating its size and form factor in relation to an engine compartment.
Operation
Once installed, the K&N 62-1360 Vent Air Filter/Breather functions by filtering incoming air before it enters the engine's crankcase or other specified systems. The filter's media traps airborne contaminants, preventing them from reaching sensitive engine components. Its high-flow design aims to minimize restriction while maintaining effective filtration, contributing to optimal engine operation.
Maintenance and Cleaning
The K&N 62-1360 filter is designed to be washable and reusable. Regular cleaning is essential to maintain its performance and longevity. The cleaning process typically involves removing the filter, applying a K&N filter cleaner, rinsing with water, allowing it to dry completely, and then re-oiling with K&N filter oil. Refer to K&N's official cleaning instructions for detailed steps and recommended products.
Image: A hand wearing a glove washing a K&N air filter under running water, demonstrating the cleaning process.
An exploded view of a K&N filter illustrates its components, including the filter media, rubber base, and metal cap. Understanding these components can assist in proper cleaning and reassembly.
Image: An exploded diagram of a K&N air filter, detailing its individual components such as the filter element, rubber seals, and metal end caps.
Troubleshooting
- Reduced Airflow: If you notice a decrease in engine performance or airflow, the filter may be dirty. Perform routine cleaning as described in the Maintenance section.
- Improper Fit: Ensure the filter is correctly seated and the clamp is tightened. An improper fit can lead to unfiltered air entering the system.
- Oil Contamination: Over-oiling the filter can lead to oil being drawn into the engine. Follow K&N's re-oiling instructions carefully to apply the correct amount of oil.
- Damage: Inspect the filter periodically for any signs of damage to the filter media or rubber components. Replace the filter if damage is observed.
Product Specifications
| Specification | Detail |
|---|---|
| Brand | K&N |
| Model Number | 62-1360 |
| Product Dimensions | 1.5"L x 0.75"W x 1.5"H |
| Flange Diameter | 0.75 inches (19mm) |
| Filter Height | 1.5 inches (38mm) |
| Flange Length | 0.4375 inches (11mm) |
| Shape | Breather (Conical, Oval, Round options available for other models) |
| Item Weight | 2.4 ounces |
| UPC | 024844015266 |
| Automotive Fit Type | Vehicle Specific Fit |

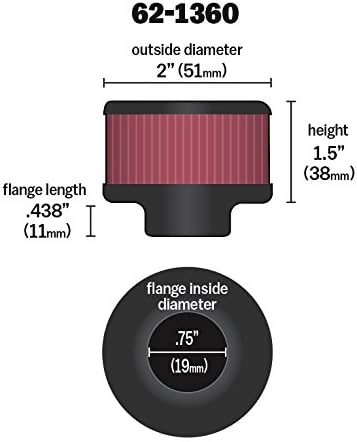

Image: A technical drawing detailing the dimensions of the K&N 62-1360 filter, including outside diameter, height, flange length, and flange inside diameter.
Warranty and Support
K&N products are typically backed by a limited warranty. For specific warranty details, terms, and conditions, please refer to the official K&N website or contact K&N customer support directly. Support resources, including additional installation guides and cleaning instructions, are available through K&N's official channels.
