Schrade Tough Tool Multi Tool User Manual

Introduction

The Schrade Tough Tool Multi Tool is a versatile and durable instrument designed for a wide range of tasks, from outdoor survival to everyday utility. Crafted from robust 2Cr steel, this multi-tool features ultra-smooth operation and a comprehensive set of 21 functions, making it an essential companion for any adventure or task.

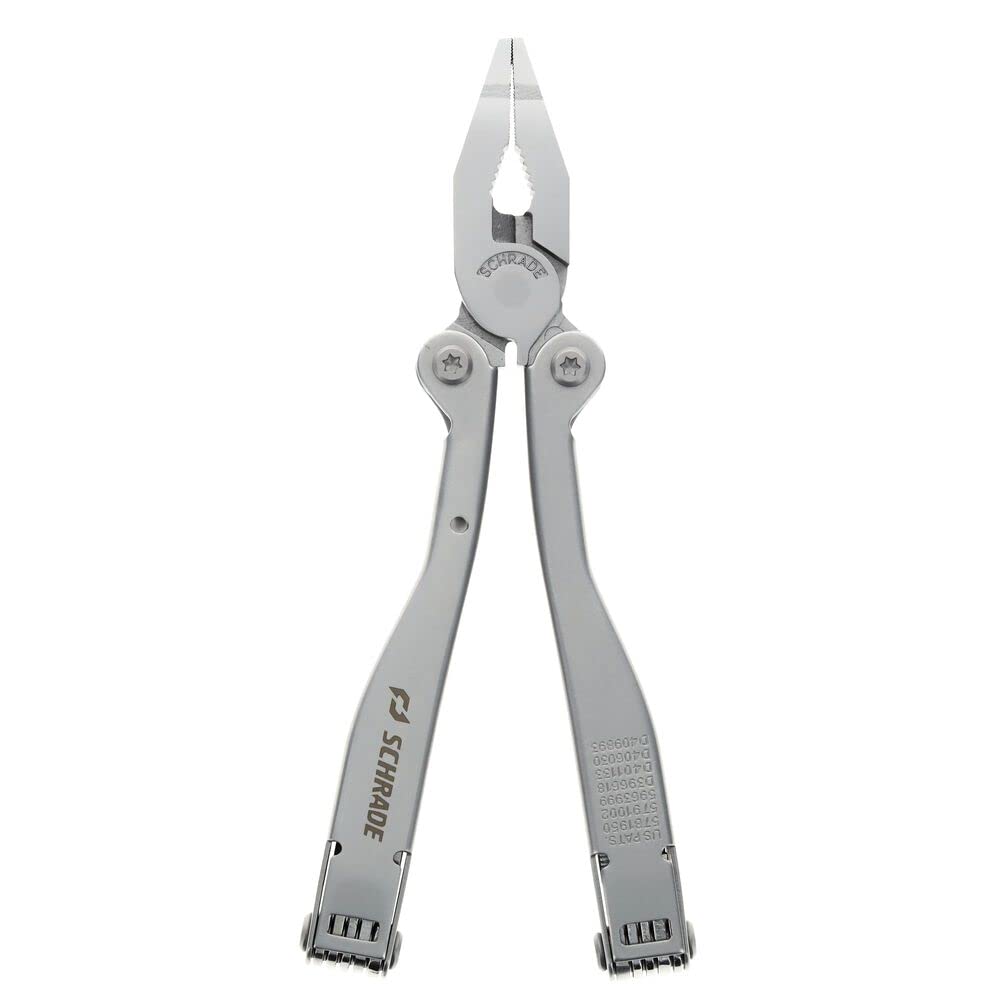

Figure 1: The Schrade Tough Tool Multi Tool, showcasing its primary pliers and integrated tools.

Key Features:

• Dimensions: Closed length: 4.8 inches (12.2 cm), overall length: 7 inches (17.8 cm), weight: 8.1 ounces.
• Durability: Constructed from high-quality 2Cr blade steel for lasting performance.
• Versatility: Offers 21 distinct functions to handle diverse situations.
• Portability: Includes a convenient sheath for secure carrying.

Setup and First Use

Your Schrade Tough Tool comes ready for immediate use. Follow these steps to familiarize yourself with its components:

1. Unpacking: Carefully remove the multi-tool and its accompanying sheath from the packaging.
2. Initial Inspection: Inspect the tool for any visible damage or manufacturing defects. Ensure all components are securely in place.
3. Opening the Pliers: To access the pliers, unfold the two handles of the multi-tool. The pliers will pivot into position.
4. Accessing Individual Tools: Each handle contains various fold-out tools. Gently pull each tool from its housing until it locks into place. Ensure the tool is fully extended and locked before applying pressure during use.
5. Closing Tools: To close a tool, carefully disengage its locking mechanism (if present) and fold it back into the handle until it is flush.

Note: Some tools may require a firm pull to deploy initially. Exercise caution to avoid injury.

Operating Instructions

The Schrade Tough Tool offers 21 functions. Below are instructions for using some of the primary tools:

Pliers:

• Needle Nose Pliers: Use the pointed tips for fine gripping, bending small wires, or retrieving small objects.
• Standard Pliers: The broader, serrated section is ideal for general gripping, twisting, and holding.
• Wire Snips: Located at the base of the pliers' jaws, these are designed for cutting various gauges of wire. Position the wire firmly within the cutting edge and apply steady pressure to the handles.

Knives and Saws:

• Main Blade: A sharp, versatile blade for general cutting tasks. Extend fully until locked.
• Serrated Blade: Ideal for cutting fibrous materials like rope or seatbelts.
• Wood Saw: Features aggressive teeth for efficient cutting of wood and other soft materials.

Figure 2: Detail of a sharp blade, a component of the multi-tool, ready for cutting tasks.

Figure 3: Demonstrating the carving capability of the multi-tool's blade.

Screwdrivers and Bottle Opener:

• Flathead Screwdrivers: Various sizes are included for different screw types.
• Phillips Head Screwdriver: For cross-head screws.
• Bottle Opener: Use the designated tool to easily open bottled beverages.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your Schrade Tough Tool:

• Cleaning: After each use, especially in wet or dirty conditions, clean the tool with a damp cloth. For stubborn grime, use a small brush and mild soap. Ensure all parts are thoroughly dried to prevent rust.
• Lubrication: Periodically apply a small amount of light machine oil to the pivot points and moving parts to maintain smooth operation.
• Sharpening: The knife blades may dull with use. Sharpen them using a suitable knife sharpener, following the manufacturer's instructions for the sharpener.
• Storage: Store the multi-tool in its sheath in a dry environment to protect it from moisture and damage.

Troubleshooting

If you encounter issues with your multi-tool, refer to the following common problems and solutions:

Specifications

Warranty and Support

The Schrade Tough Tool Multi Tool is backed by a limited lifetime warranty, ensuring quality and durability. Please note that some specifications may indicate a 1-year warranty; however, the product is generally covered by a limited lifetime warranty for manufacturing defects.

For any questions, concerns, or warranty claims, please contact Schrade Customer Service. Refer to the official Schrade website or product packaging for the most current contact information.

You can also visit the official Schrade Store on Amazon for more product information and support resources.

Important Safety Information

Proposition 65 Warning:

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Always handle the multi-tool with care. Keep blades and pointed tools away from your body and others. Store out of reach of children.
