Introduction
The Homedics Infra-tech Ultra Deluxe Infrared Massager is designed to provide soothing relief for tension and aches. This device combines gentle massage action with penetrating infrared heat to enhance energy flow and relax tense, tired muscles. Please read this manual thoroughly before use to ensure safe and effective operation.
Safety Information
WARNING: To reduce the risk of electric shock, burns, fire, or injury to persons:
- Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
- Do not use while bathing or in a shower.
- Do not place or store appliance where it can fall or be pulled into a tub or sink.
- Do not place in or drop into water or other liquid.
- Never use pins or other metallic fasteners with this appliance.
- Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
- Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Homedics.
- Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to a Homedics Service Center for examination and repair.
- Keep cord away from heated surfaces.
- Never use while sleeping or drowsy.
- Never drop or insert any object into any opening.
- Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
- Do not use on children.
- Consult a physician before use if you have a medical condition.
Product Features
The Homedics Infra-tech Ultra Deluxe Infrared Massager is equipped with several features designed for user comfort and effective muscle relief:
- 3-way variable settings: Use with massage only, heat only, or a combination of both.
- Custom attachments: Includes attachments for pinpoint acupressure, body contoured massage, gentle facial massage, and stimulating scalp massage.
- Easy to use: Features an extended handle and adjustable neck to easily reach all areas of the body.
- Ergonomic design: The adjustable soft-grip handle provides comfortable use during extended sessions.
- Infrared Heat: Provides penetrating heat therapy.
Image: Product packaging highlighting key features such as infrared heat, adjustable neck, extended body design, soft grip handle, and 3-position switch.
Package Contents
Upon opening your Homedics Infra-tech Ultra Deluxe Infrared Massager package, you should find the following items:
- Homedics Infra-tech Ultra Deluxe Infrared Massager unit
- Four (4) custom massage attachments
- Instruction Manual and Warranty Information booklet
- Product Registration Card

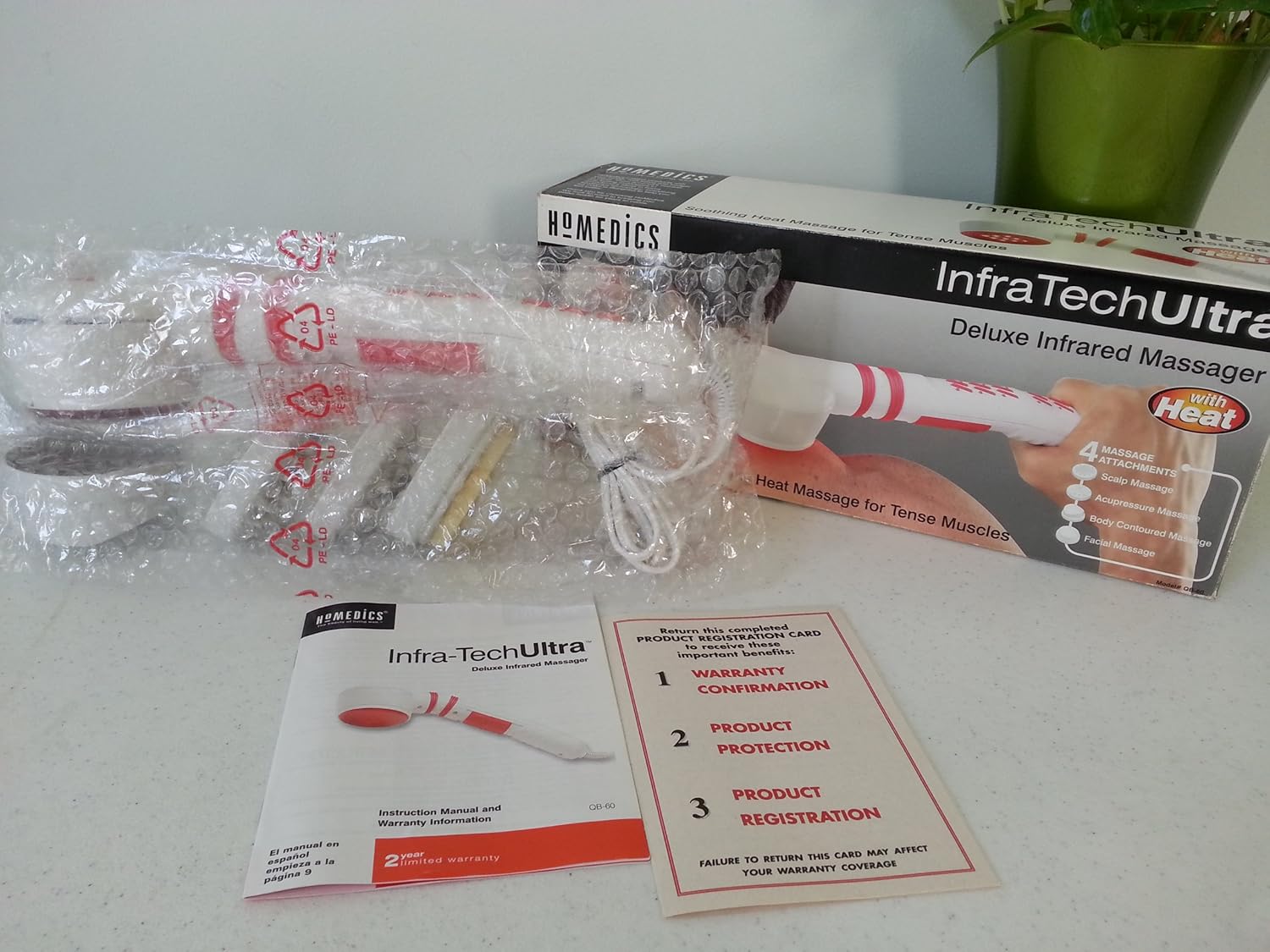

Image: The Homedics Infra-tech Ultra Deluxe Infrared Massager, its various attachments, the instruction manual, and a warranty registration card, all laid out next to the product box.
Setup
Follow these steps to prepare your massager for first use:
- Unpack: Carefully remove all components from the packaging.
- Inspect: Check the massager and all attachments for any signs of damage. Do not use if damaged.
- Clean: Wipe the massager head and attachments with a damp cloth before initial use. Ensure they are dry before connecting to power.
- Connect: Plug the power cord into a standard electrical outlet.
Operating Instructions
The Homedics Infra-tech Ultra Deluxe Infrared Massager is designed for ease of use. Ensure the unit is properly plugged into a power source before operation.
Powering On/Off and Mode Selection
The massager features a 3-position switch located on the handle for controlling its functions:
- OFF: Position the switch to 'OFF' to turn the unit off.
- MASSAGE: Select this position for massage action only.
- MASSAGE + HEAT: Choose this position for a combination of massage and penetrating infrared heat. The infrared heat element will glow red when active.
Using Attachments
The massager comes with four interchangeable attachments. To attach or remove an attachment, simply align it with the massager head and twist gently until it locks into place or detaches. Ensure the unit is turned off and unplugged before changing attachments.
Image: A close-up of the four distinct massage attachments: a smooth body contoured attachment, an acupressure attachment with small nubs, a scalp massage attachment with longer, softer nubs, and a gentle facial massage attachment with a soft sponge-like surface.
Attachments Guide
Each of the four custom attachments is designed for a specific type of massage:
- Pinpoint Acupressure Attachment: Features small, firm nubs for targeted pressure on specific points to relieve tension.
- Body Contoured Attachment: A broader, smoother surface designed to glide over larger muscle groups for general relaxation.
- Gentle Facial Attachment: A soft, sponge-like surface for delicate areas, providing a soothing and gentle massage.
- Stimulating Scalp Massage Attachment: Designed with longer, flexible nubs to gently stimulate the scalp and promote relaxation.
Maintenance and Care
Proper maintenance ensures the longevity and optimal performance of your massager.
Cleaning
- Always unplug the unit before cleaning.
- Wipe the massager and attachments with a soft, slightly damp cloth.
- Never use abrasive cleaners, brushes, gasoline, kerosene, glass/furniture polish, or paint thinner to clean the massager.
- Do not immerse the massager in water or any other liquid.
Storage
- Store the appliance in its box or a cool, dry place.
- Avoid contact with sharp edges or pointed objects which might cut or puncture the fabric surface.
- To avoid breakage, do not wrap the power cord around the appliance.
Troubleshooting
If you encounter any issues with your Homedics Infra-tech Ultra Deluxe Infrared Massager, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Massager does not turn on. | Not plugged in correctly; Power switch is OFF. | Ensure the power cord is securely plugged into a working electrical outlet. Move the power switch to 'MASSAGE' or 'MASSAGE + HEAT'. |
| Heat function is not working. | Incorrect mode selected; Unit not fully warmed up. | Ensure the switch is set to 'MASSAGE + HEAT'. Allow a few minutes for the infrared element to reach its operating temperature. |
| Attachments are difficult to change. | Attachment not aligned properly; Unit is on. | Ensure the unit is OFF and unplugged. Align the attachment carefully and twist gently. Do not force. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | QB-60 |
| Power Source | Corded Electric |
| Material | Rubber |
| Use For | Body |
| Package Dimensions | 14.3 x 8.4 x 3.6 inches |
| Item Weight | 1.95 Pounds |
Warranty and Support
For warranty coverage and product support, it is recommended to register your Homedics Infra-tech Ultra Deluxe Infrared Massager. Please refer to the warranty information card included in your package for details on how to register and the terms of your warranty.
Legal Disclaimer: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is not a medical device and should not be used as a substitute for professional medical advice or treatment.
