De'Longhi IC5000 Gelato Supremo Ice Cream Maker User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your De'Longhi IC5000 Gelato Supremo Ice Cream Maker. Please read all instructions carefully before using the appliance for the first time and keep this manual for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not immerse the motor unit in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended household use.

Product Overview and Components

Familiarize yourself with the parts of your De'Longhi IC5000 Gelato Supremo Ice Cream Maker before first use.

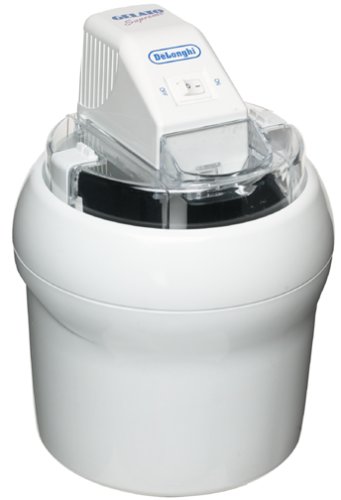

Image 1: The De'Longhi IC5000 Gelato Supremo Ice Cream Maker, fully assembled. It consists of a motor unit, a lid, a double-bladed paddle, and a freezing cylinder.

Key Components:

• Motor Unit: Contains the motor that drives the paddle.
• Lid: Covers the freezing cylinder and has an opening for adding ingredients.
• Double-Bladed Paddle: Churns the ingredients to create frozen desserts.
• Freezing Cylinder: A double-walled bowl containing a liquid coolant. This cylinder must be pre-frozen before use. It has a nonstick interior.

Setup and First Use

Before using your ice cream maker for the first time, follow these steps:

1. Clean Components: Wash the freezing cylinder, paddle, and lid in warm, soapy water. Rinse thoroughly and dry all parts completely. Do not wash the motor unit in water.
2. Freeze the Cylinder: Place the empty freezing cylinder in your freezer for 8 to 10 hours, or until completely frozen. The liquid within the double walls must be solid. For best results, store the cylinder in the freezer when not in use so it's always ready.
3. Assemble the Unit:
   • Place the frozen cylinder on a stable, flat surface.
   • Insert the double-bladed paddle into the center of the freezing cylinder.
   • Place the motor unit on top of the lid, ensuring it locks securely into the paddle.
   • Place the assembled lid and motor unit onto the freezing cylinder, twisting to secure if necessary.
4. Prepare Ingredients: Prepare your ice cream, gelato, sherbet, or frozen drink mixture according to your recipe. Ensure ingredients are chilled before adding to the machine for optimal results.

Operating Instructions

Follow these steps to make delicious frozen desserts:

1. Start Churning: Plug in the appliance. Press the power button to start the motor and paddle. The paddle should begin rotating.
2. Add Ingredients: Slowly pour your chilled mixture into the freezing cylinder through the opening in the lid while the paddle is churning.
3. Churning Process: Allow the machine to churn for approximately 20 to 40 minutes. The exact time will vary depending on the recipe and desired consistency. The paddle's blades are designed to reverse if they encounter resistance, preventing motor damage.
4. Add Solid Ingredients: If your recipe calls for solid ingredients like chocolate chips, chopped fruit, or nuts, add them through the lid opening during the last 5 minutes of churning.
5. Check Consistency: Once the desired consistency is reached, turn off the machine and unplug it.
6. Serve or Store: Remove the motor unit and lid. Use a plastic or wooden utensil to scoop out the frozen dessert. For a firmer consistency, transfer the dessert to an airtight container and place it in the freezer for a few hours.

Basic recipes are typically included with the product packaging to help you get started.

Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity of your De'Longhi IC5000.

• Unplug Before Cleaning: Always ensure the appliance is unplugged from the power outlet before cleaning.
• Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or place it in a dishwasher.
• Freezing Cylinder, Paddle, and Lid: These parts should be hand washed in warm, soapy water. Rinse thoroughly and dry immediately. Do not use abrasive cleaners or scouring pads, as this may damage the nonstick interior of the freezing cylinder.
• Storage: Ensure all parts are completely dry before storing. You may store the freezing cylinder in the freezer for convenience. Store the motor unit, paddle, and lid in a clean, dry place.

Troubleshooting

If you encounter issues with your ice cream maker, refer to the following common problems and solutions:

Specifications

Warranty and Customer Support

Your De'Longhi IC5000 Gelato Supremo Ice Cream Maker comes with a 1-Year Warranty free from initial defects.

For warranty claims, technical assistance, or to purchase replacement parts, please contact De'Longhi Customer Support. Refer to the official De'Longhi website or your product packaging for the most current contact information.

Manufacturer: DELONGHI
