Melitta MEXKITB Espresso Maker with 20-Piece Kit

Introduction

Thank you for choosing the Melitta MEXKITB Espresso Maker. This comprehensive kit provides everything you need to create exquisite espresso drinks, including a compact espresso machine and a 20-piece accessory set. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new espresso maker to ensure years of enjoyable use.

The Melitta MEXKITB is designed to brew up to four cups of rich espresso in approximately five minutes and features a dedicated frothing function for milk-based beverages like cappuccinos and lattes.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Extreme caution must be used when moving an appliance containing hot liquids.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

Parts Identification

This image displays the complete Melitta MEXKITB Espresso Maker kit. It includes the main espresso machine unit, a glass carafe for collecting brewed espresso, a white ceramic frothing pitcher, four small white espresso cups with matching saucers and spoons, and two larger white cappuccino cups with matching saucers and spoons. The machine itself is black with a silver filter holder and a steam wand.

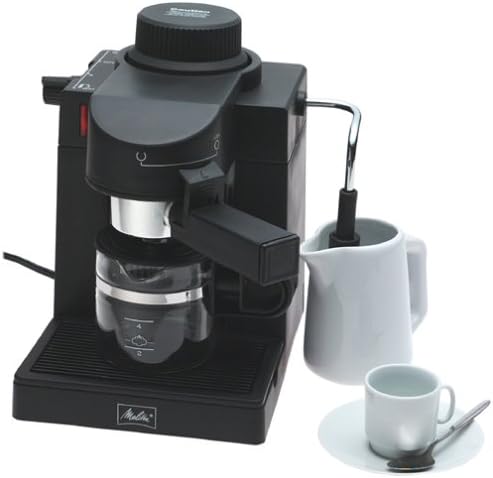

This image shows a closer view of the Melitta MEXKITB Espresso Maker. The machine is black, featuring a control knob on top, a filter holder with a handle, and a steam wand extending from the side. A white frothing pitcher is positioned beneath the steam wand, and a single white espresso cup with a saucer and spoon is visible in the foreground.

• Main Unit (Espresso Machine)
• Boiler Cap
• Control Knob (Brew/Off/Froth)
• Filter Holder
• Filter Basket
• Glass Carafe with Lid
• Steam Wand with Frothing Tip
• Drip Tray
• Espresso Cups (4) with Saucers (4) and Spoons (4)
• Cappuccino Cups (2) with Saucers (2) and Spoons (2)
• Frothing Pitcher
• Measuring Scoop/Tamper

Before First Use

Before using your Melitta MEXKITB Espresso Maker for the first time, it is important to clean all removable parts and run a few cycles with water only to prime the system and remove any manufacturing residues.

1. Unpack all components and remove any packaging materials.
2. Wash the glass carafe, filter holder, filter basket, frothing pitcher, and all cups, saucers, and spoons in warm, soapy water. Rinse thoroughly and dry.
3. Fill the boiler with cold water up to the 4-cup mark on the carafe.
4. Place the empty filter basket into the filter holder, and lock the filter holder into the machine.
5. Place the glass carafe on the drip tray.
6. Ensure the boiler cap is securely tightened.
7. Plug the machine into a standard electrical outlet.
8. Turn the control knob to the "Brew" position. Allow the water to brew through the system into the carafe.
9. Once brewing is complete, turn the control knob to "Off" and unplug the machine.
10. Discard the water and allow the machine to cool completely before repeating this process 2-3 times to ensure thorough cleaning.

Setup and Operation

Making Espresso

1. Ensure the machine is unplugged and cool.
2. Unscrew the boiler cap and fill the boiler with fresh, cold water using the glass carafe as a measure (up to the desired number of cups, max 4 cups). Securely tighten the boiler cap.
3. Using the measuring scoop, add finely ground espresso coffee to the filter basket. For best results, use 1 scoop per espresso shot. Do not overfill.
4. Lightly tamp the coffee grounds with the flat end of the scoop. Wipe any excess grounds from the rim of the filter basket.
5. Insert the filter basket into the filter holder.
6. Align the filter holder with the machine's brewing head and twist it firmly to the right until it is securely locked in place.
7. Place the glass carafe with its lid on the drip tray, ensuring the lid's opening is aligned with the filter holder's spout.
8. Plug the machine into a standard electrical outlet.
9. Turn the control knob to the "Brew" position. The machine will begin to heat the water and force it through the coffee grounds.
10. Espresso will begin to flow into the carafe in approximately 4-5 minutes.
11. Once the brewing process is complete (no more espresso is flowing), turn the control knob to "Off" and unplug the machine.
12. Carefully remove the carafe. Be aware that the machine and filter holder will be hot.

Frothing Milk for Cappuccinos and Lattes

The Melitta MEXKITB features a steam wand for frothing milk. For best results, use cold milk (dairy or non-dairy alternatives).

1. Ensure there is sufficient water in the boiler (at least for 2 cups of espresso, even if not brewing).
2. Fill the frothing pitcher with cold milk, approximately one-third full.
3. Place the frothing pitcher under the steam wand. Ensure the rubber frothing tip is securely attached to the steam wand.
4. Submerge the frothing tip just below the surface of the milk.
5. Plug in the machine and turn the control knob to the "Froth" position.
6. Steam will begin to emit from the wand. Move the pitcher up and down gently, keeping the tip just below the surface, to create foam. For more foam, keep the tip closer to the surface; for less foam and more steamed milk, submerge it deeper.
7. Continue frothing until the milk reaches the desired temperature and consistency. Be careful not to overheat the milk.
8. Once frothing is complete, turn the control knob to "Off" and unplug the machine.
9. Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying and clogging the wand.
10. Pour your frothed milk over freshly brewed espresso to create your desired beverage.

Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your espresso maker.

Daily Cleaning

• Always unplug the machine and allow it to cool completely before cleaning.
• Remove the filter holder and discard used coffee grounds. Rinse the filter basket and filter holder under warm water.
• Wash the glass carafe and lid with warm, soapy water.
• Remove the drip tray and empty any collected liquid. Wash the drip tray and grid with warm, soapy water.
• Wipe down the exterior of the machine with a damp cloth. Do not immerse the main unit in water.
• Immediately after frothing, wipe the steam wand with a damp cloth. If the frothing tip is removable, remove and rinse it thoroughly. Use a small brush or needle to clear any blockages in the steam wand opening.

Descaling (Monthly or as needed)

Mineral deposits from water can build up inside the machine, affecting performance. Descale your machine regularly, especially if you have hard water.

1. Prepare a descaling solution according to the descaler manufacturer's instructions, or use a mixture of white vinegar and water (e.g., 1 part vinegar to 2 parts water).
2. Fill the boiler with the descaling solution up to the 4-cup mark.
3. Place the empty filter basket into the filter holder and lock it into the machine. Place the carafe on the drip tray.
4. Plug in the machine and turn the control knob to "Brew". Allow about half of the solution to brew through.
5. Turn the control knob to "Off" and let the machine sit for 15-20 minutes to allow the solution to work.
6. Turn the control knob back to "Brew" and allow the remaining solution to brew through.
7. Discard the solution.
8. Rinse the machine by repeating the brewing process 2-3 times with fresh, cold water only to remove any residual descaling solution.

Troubleshooting

Specifications

Warranty and Support

The Melitta MEXKITB Espresso Maker comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal household use.

For warranty claims, technical support, or replacement parts, please contact Melitta customer service. Keep your proof of purchase for warranty validation.

Please note: The warranty does not cover damage resulting from misuse, neglect, accident, alteration, or commercial use. Normal wear and tear, such as mineral buildup, is not covered by the warranty and requires regular maintenance as outlined in this manual.
