Woodstock W1011 4-Inch to 3-Inch Dust Collection Reducer

1. Introduction

This manual provides comprehensive instructions for the Woodstock W1011 4-Inch to 3-Inch Dust Collection Reducer. Please read carefully before installation and use to ensure proper function and safety.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

2. Product Overview

The Woodstock W1011 is a durable reducer designed to connect dust collection hoses or ports of different diameters. It facilitates the transition from a 4-inch diameter system to a 3-inch diameter system, or vice-versa, for efficient dust and debris management in workshops.

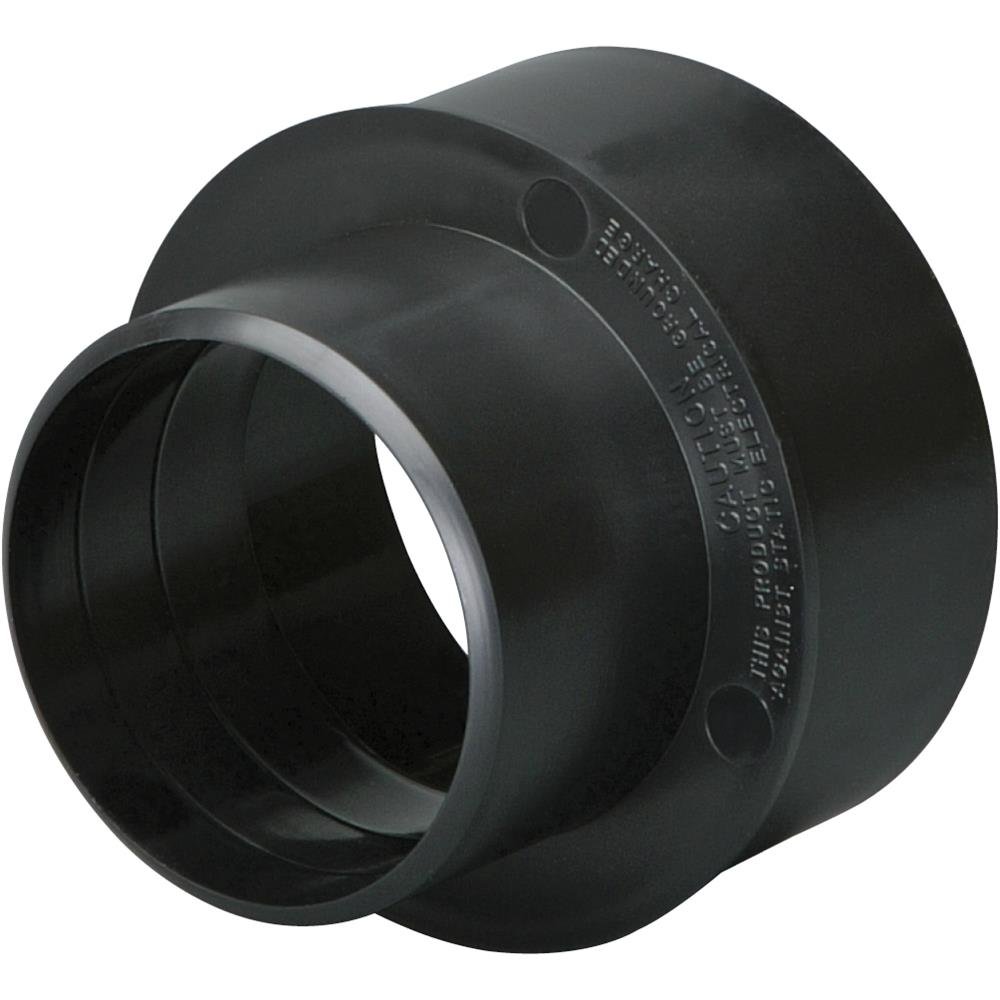

Figure 1: Angled view of the Woodstock W1011 4-Inch to 3-Inch Reducer. This image shows the overall shape and size difference between the two ends of the reducer.

3. Setup and Installation

The Woodstock W1011 reducer is designed to connect a 4-inch dust collection system to a 3-inch port or hose, or vice-versa. The 3-inch end of the reducer is also commonly used to connect to 2-1/2-inch shop vac hoses, as its internal diameter is engineered to accommodate them.

Connection Steps:

1. Identify Ends: The reducer has one larger end (approximately 4-inch diameter) and one smaller end (approximately 3-inch diameter).
2. Connecting to a 4-inch System: The 4-inch end of the reducer is typically designed to connect to standard 4-inch dust collection hoses or ports. Secure with appropriate clamps (not included) to ensure a tight seal and prevent air leaks.
3. Connecting to a 3-inch System: The 3-inch end can connect to 3-inch dust ports or hoses. For connecting to a 2-1/2-inch shop vac hose, insert the shop vac hose into the 3-inch end of the reducer. Ensure a secure fit. Clamps may be used for added stability (not included).

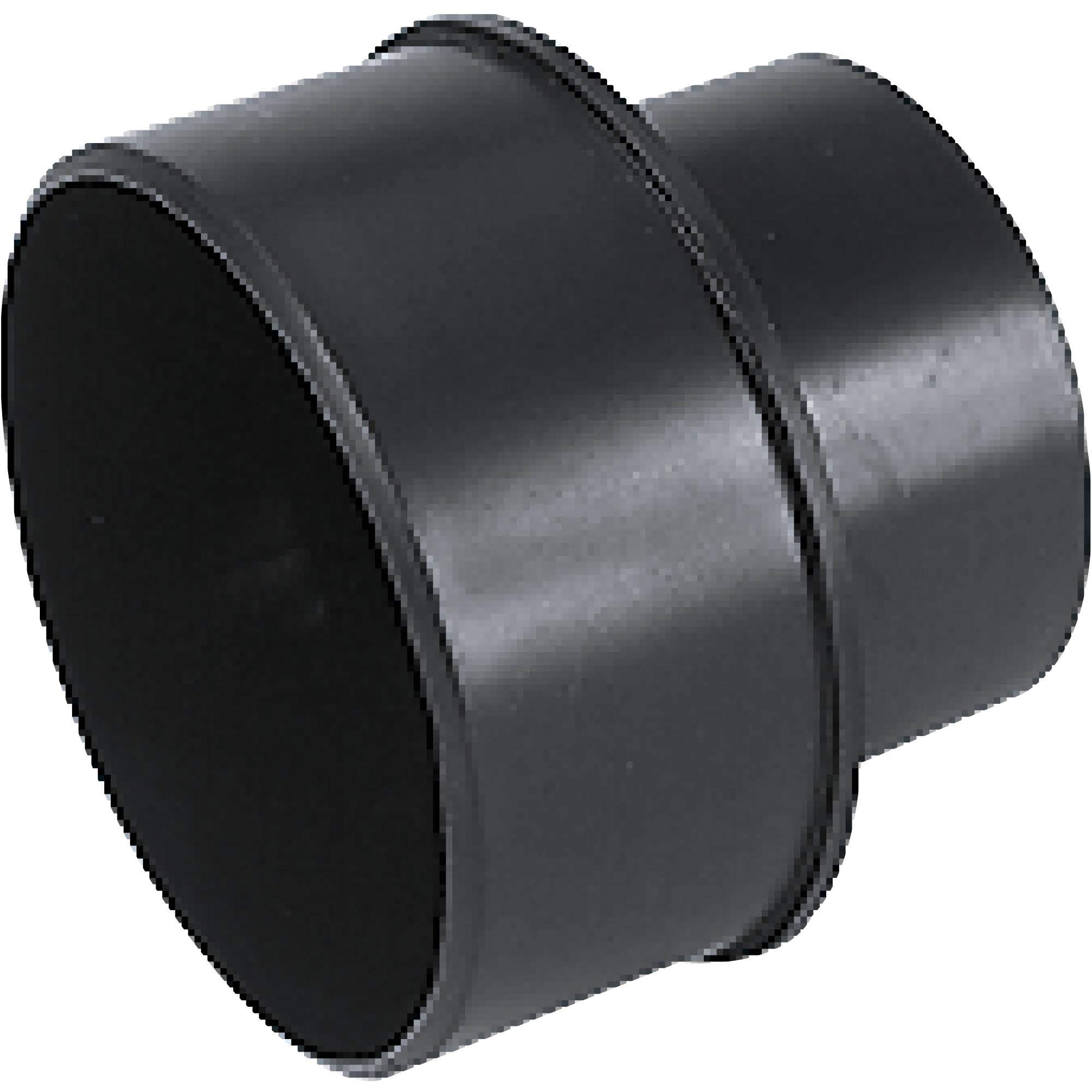

Figure 2: Side view of the Woodstock W1011 Reducer, highlighting the stepped design for different hose diameters.

4. Operating Instructions

Once properly installed, the reducer functions automatically as part of your dust collection system. Ensure all connections are tight before operating any machinery connected to the dust collection system.

• Regularly check for blockages within the reducer or connected hoses to maintain optimal airflow.
• Confirm that the dust collection system is powered on and functioning correctly before beginning work.

5. Maintenance

Cleaning:

Periodically inspect the reducer for dust buildup or debris. Clean with a dry cloth or compressed air. Avoid using harsh chemicals that may degrade the material of the reducer.

Inspection:

Regularly check the reducer for any signs of cracks, damage, or wear, especially around the connection points. Replace the reducer if any damage is observed to ensure proper function and safety of your dust collection system.

6. Troubleshooting

Poor Suction:

• Check all connections for leaks. Ensure hoses are securely clamped to the reducer and other components.
• Verify that the reducer is correctly oriented and not obstructed internally by debris.
• Inspect all connected hoses and the dust collector itself for any blockages.

Incompatible Fit:

• This reducer is designed for specific 4-inch and 3-inch (or 2-1/2-inch shop vac) applications. If experiencing fit issues, verify the exact diameters of your equipment's ports and hoses.
• Some equipment, such as certain Makita planers, may have unique port designs that require alternative connection methods or different reducers. Consult your equipment's manual for specific dust port dimensions.

7. Specifications

8. Warranty Information

Woodstock products typically come with a limited manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the product packaging or contact Woodstock customer support directly. Keep your proof of purchase for warranty claims.

9. Support and Contact Information

For technical assistance, replacement parts, or further inquiries regarding your Woodstock W1011 Reducer, please visit the official Woodstock website or contact their customer service department. Contact information can usually be found on the product packaging or the manufacturer's website.
