Classic Crafts NSI Rock Tumbler Classic Model 635 Instruction Manual

Introduction

The Classic Crafts NSI Rock Tumbler Classic is designed to transform rough stones into beautiful, high-luster gemstones. This heavy-duty rock tumbler, U.L. listed for safety, provides an engaging process to polish various semi-precious stones. The tumbling process, which can take approximately one month, mimics natural geological processes over a shorter timeframe, allowing users to create polished stones for jewelry or display.

What's Included

Your Classic Crafts NSI Rock Tumbler Classic package includes:

• Rock Tumbler Machine
• Rough Semi-Precious Stones (including Amethyst, Jasper, Agates, and others)
• Grinding Grit
• Polishing Compound
• Jewelry Settings and Findings
• Detailed Instruction Manual

The materials are plastic, metal, and stone, suitable for all skill levels.

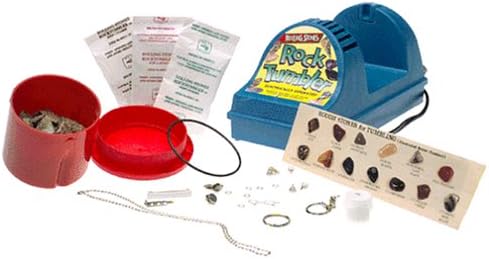

Image: Contents of the Classic Crafts NSI Rock Tumbler Classic kit.

Setup

1. Unpack Components: Carefully remove all items from the packaging.
2. Tumbler Assembly: Place the tumbler base on a stable, level surface. Ensure the two-cup plastic barrel can roll easily atop its base.
3. Barrel Preparation: The barrel consists of a main body and a lid. To ensure a proper seal, apply a small amount of olive oil around the edges of the lid's O-ring before securing it onto the barrel. This lubrication helps prevent leaks during operation.
4. Placement: Due to the operational noise of rock tumblers, it is recommended to place the unit in a clean, remote area with a properly wired outlet, such as a garage, basement, or an outdoor location on cement or in a garden bed where minor liquid drips will not cause damage.

Image: Detail of the tumbler barrel and lid, illustrating the sealing mechanism.

Operating Instructions

The rock tumbling process involves several stages, each requiring specific grit and duration. Refer to the detailed instructions provided with your kit for precise measurements and timings for each stage. The overall process typically takes about one month.

1. Loading the Barrel: Place the rough stones into the tumbler barrel. Add the appropriate amount of coarse grinding grit and water as specified in your instruction manual.
2. Sealing the Barrel: Securely attach the lid to the barrel, ensuring the olive oil-lubricated O-ring creates a tight seal. Twist the lid until it is firmly closed.
3. Starting the Tumbler: Place the sealed barrel onto the tumbler base, ensuring it sits correctly on the rollers. Plug in the tumbler to begin the tumbling action.
4. Monitoring: Periodically check the tumbler (every few days) to ensure it is operating correctly and that the water level is adequate. If the mixture appears dry, add a small amount of water.
5. Grit Stages: After the recommended duration for the first stage (coarse grit), carefully empty the barrel, clean the stones and barrel thoroughly, and then repeat the process with the next finer grit, followed by the polishing compound. Each stage requires thorough cleaning to prevent contamination.
6. Finishing: Once all tumbling and polishing stages are complete, clean the stones one final time. They should now have a smooth, high-luster finish.
7. Jewelry Creation: Use the provided jewelry settings and findings to create custom pieces with your newly polished gemstones.

Image: The Rock Tumbler kit packaging, illustrating the transformation of rough stones to polished gems and jewelry.

Maintenance

• Regular Cleaning: After each tumbling stage, thoroughly clean the barrel and stones to remove all traces of the previous grit. This prevents cross-contamination between stages.
• Lubrication: Periodically re-lubricate the O-ring on the barrel lid with olive oil to maintain a good seal and prevent leaks.
• Motor Care: Ensure the tumbler motor is not continuously run for excessively long periods without breaks. Allow the motor to cool down between loads if operating for extended durations.
• Storage: When not in use, store the rock tumbler in a clean, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

• Excessive Noise: Rock tumblers are inherently noisy. This is normal. If the noise level becomes unusually high or changes significantly, check for any obstructions or misalignments of the barrel on the rollers.
• Leaking Barrel: Minor drips from the barrel are sometimes reported. Ensure the lid is securely fastened and the O-ring is properly lubricated and seated. If leaks persist, ensure the tumbler is placed in an area where minor liquid seepage will not cause damage.
• Barrel Not Turning: Check if the barrel is properly seated on the drive shaft and rollers. Ensure there are no obstructions preventing rotation.
• Rocks Not Polishing: Verify that the correct grit is being used for each stage and that the tumbling duration is sufficient. Ensure thorough cleaning between grit changes.

Specifications

Safety Information

Caution - Electrically Operated Toy: Not recommended for children under 10 years of age. As with all electrical products, precautions and proper use should be observed to prevent electric shock. Always supervise children during operation.

Keep the tumbler away from water sources and ensure hands are dry when plugging or unplugging the unit.

Warranty and Support

For any questions regarding the operation, maintenance, or troubleshooting of your Classic Crafts NSI Rock Tumbler Classic, please refer to the detailed instruction manual included in your kit. For further assistance, contact Classic Crafts customer support.
