Kawasaki Mule Pro DXT Service Manual

1. Introduction

This comprehensive service manual provides detailed technical instructions for the repair, service, and rebuilding of the 2016 and 2017 Kawasaki Mule Pro DXT utility vehicles. Spanning 660 pages, this guide is an essential resource for owners and technicians seeking to perform maintenance and repairs with precision and accuracy. It covers all major systems and components, ensuring thorough understanding and correct procedures.

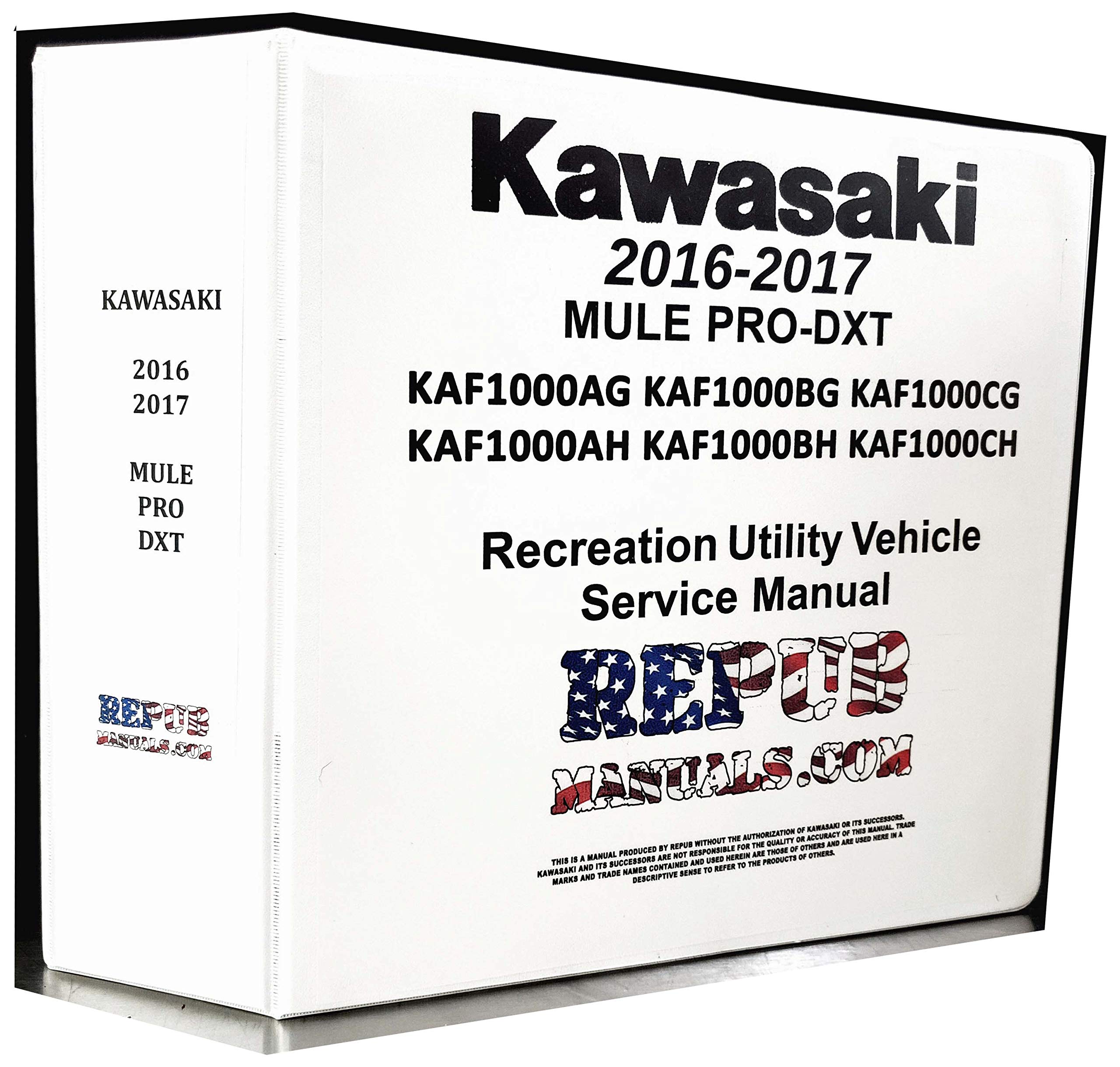

Image 1.1: Front cover of the official 2017 Kawasaki Mule Pro DXT Service Manual. This manual contains detailed instructions for maintenance and repair.

2. Safety Information

Always prioritize safety when performing any service or repair on your Kawasaki Mule Pro DXT. Failure to follow safety precautions can result in serious injury or damage to the vehicle. This manual outlines specific safety warnings throughout its content; however, general safety practices should always be observed.

• Read the Manual: Thoroughly read and understand all instructions before beginning any procedure.
• Personal Protective Equipment (PPE): Always wear appropriate safety gear, including safety glasses, gloves, and sturdy footwear.
• Vehicle Stability: Ensure the vehicle is parked on a level surface, the parking brake is engaged, and the engine is off and cool before working. Use jack stands if lifting the vehicle.
• Disconnect Battery: Disconnect the negative battery cable before working on electrical components to prevent accidental starts or electrical shorts.
• Proper Tools: Use only the correct tools for each task. Improper tools can cause damage or injury.
• Ventilation: Work in a well-ventilated area, especially when dealing with fuel, lubricants, or exhaust fumes.
• Professional Assistance: If you are unsure about any procedure or lack the necessary tools or expertise, consult a qualified Kawasaki service technician.

3. Preparation for Service

Before commencing any maintenance or repair work, proper preparation is crucial for efficiency and safety. This section provides general guidelines for preparing your Kawasaki Mule Pro DXT.

1. Gather Tools and Supplies: Collect all necessary tools, replacement parts, fluids, and cleaning supplies as specified for the task.
2. Clean Work Area: Ensure your workspace is clean, well-lit, and free of obstructions.
3. Vehicle Positioning: Park the Mule Pro DXT on a firm, level surface. Engage the parking brake.
4. Engine Cooling: Allow the engine and exhaust system to cool down completely to prevent burns.
5. Documentation: Have this service manual open to the relevant section for easy reference.

4. System Overviews and Operating Principles

Understanding the fundamental operating principles of your Kawasaki Mule Pro DXT's various systems is vital for effective troubleshooting and repair. This manual provides detailed diagrams and explanations for the following key systems:

• Engine System: Covers combustion, lubrication, cooling, and fuel delivery.
• Transmission and Drive System: Details the Continuously Variable Transmission (CVT), differentials, and drive shafts.
• Brake System: Explains hydraulic disc brakes, parking brake, and related components.
• Suspension and Steering: Describes the independent suspension, shock absorbers, and steering mechanisms.
• Electrical System: Includes wiring diagrams, battery, charging system, ignition, and lighting.
• Fuel System: Details fuel tank, pump, injectors, and emission controls.

Refer to the specific chapters within this manual for in-depth information on each system, including component identification and functional descriptions.

5. Maintenance Procedures

Regular maintenance is crucial for the longevity and optimal performance of your Kawasaki Mule Pro DXT. This section outlines common maintenance tasks. Always refer to the detailed instructions and service intervals provided in the manual's dedicated maintenance chapter.

5.1. Engine Oil and Filter Change

Performing regular engine oil and filter changes is essential. This procedure typically involves:

1. Warming the engine to operating temperature.
2. Draining old engine oil from the drain plug.
3. Removing and replacing the oil filter.
4. Refilling with the specified type and quantity of new engine oil.
5. Checking for leaks and verifying the oil level.

5.2. Air Filter Inspection and Replacement

A clean air filter is vital for engine performance and protection. Inspect the air filter regularly and replace it if it is dirty or damaged. Follow the manual's instructions for accessing and servicing the air filter housing.

5.3. Spark Plug Inspection and Replacement

Inspect spark plugs for wear, fouling, and correct gap at recommended intervals. Replace them with the specified type if necessary to ensure efficient ignition.

5.4. Fluid Level Checks

Regularly check and top up levels for coolant, brake fluid, differential fluid, and transmission fluid. Use only fluids that meet Kawasaki's specifications.

5.5. Brake System Inspection

Inspect brake pads for wear, brake lines for damage, and brake fluid for contamination. Ensure proper brake operation and adjustment.

5.6. Tire Inspection and Pressure

Check tire pressure regularly and inspect tires for wear, cuts, or punctures. Maintain correct tire pressure for safe operation and optimal handling.

6. Repair Procedures

This service manual provides step-by-step instructions for various repair procedures, ranging from minor component replacement to major system overhauls. Each repair section includes:

• Disassembly Instructions: Detailed steps for safely removing components.
• Inspection Criteria: Guidelines for assessing component wear and damage.
• Repair/Replacement Procedures: Specific instructions for repairing or replacing faulty parts.
• Assembly Instructions: Steps for correctly reassembling components, including torque specifications.
• Special Tools: Identification of any specialized tools required for the task.

Examples of repair topics covered include engine top-end and bottom-end rebuilds, transmission component replacement, suspension system repairs, steering system adjustments, and comprehensive electrical diagnostics.

7. Troubleshooting Guide

This section assists in diagnosing common issues that may arise with your Kawasaki Mule Pro DXT. It provides a systematic approach to identify the root cause of problems based on symptoms.

7.1. Engine Starting Issues

• Engine cranks but won't start: Check fuel supply, ignition system (spark plugs, coils), battery charge, and engine compression.
• Engine won't crank: Inspect battery terminals, battery charge, starter motor, and ignition switch.

7.2. Performance Problems

• Loss of power: Investigate fuel system (clogged filter, faulty pump), air intake (dirty filter), spark plugs, or engine compression.
• Overheating: Check coolant level, radiator, cooling fan, thermostat, and water pump.

7.3. Brake System Issues

• Spongy brakes: Bleed the brake system to remove air, check for fluid leaks, or inspect master cylinder.
• Brakes dragging: Inspect calipers for sticking, check brake pedal free play, or parking brake adjustment.

For each symptom, the manual directs you to the relevant repair or inspection section for detailed diagnostic and corrective actions.

8. Specifications

This section provides important technical specifications and data for the 2016 and 2017 Kawasaki Mule Pro DXT models, as well as details about this service manual itself.

Note: Vehicle-specific technical specifications (e.g., engine displacement, torque values, fluid capacities) are detailed within the relevant chapters of this service manual.

9. Warranty and Support

This document is a technical service manual designed to provide comprehensive repair and maintenance instructions. As a published book, it does not carry a product warranty for the Kawasaki Mule Pro DXT vehicle itself. For information regarding the warranty of your Kawasaki Mule Pro DXT, please refer to the official warranty documentation provided with your vehicle at the time of purchase or contact an authorized Kawasaki dealer.

This manual serves as a primary support tool for owners and technicians. For further assistance or professional service, it is recommended to consult an authorized Kawasaki service center. They have access to the latest technical bulletins, specialized tools, and factory-trained personnel.

For inquiries regarding this specific service manual (e.g., content clarification, errata), please contact the publisher, RePub, using the contact information typically found within the manual's introductory pages or on their official website.
