1. Overview and Introduction
This Haynes Repair Manual provides comprehensive, step-by-step procedures for maintaining, servicing, and repairing your Chevrolet Colorado pickup truck models from 2015 to 2022. It covers both 2.5L and 3.6L gas engines, as well as 3.6L LFX and 2.8L LWN diesel engines. Designed for both DIY enthusiasts and professional technicians, this manual includes detailed photographs, illustrations, and diagrams to guide you through every task, from routine fluid changes to complex engine disassembly.
The manual integrates print content with online resources. By scanning QR codes within the book, users can access additional digital content such as wiring diagrams, guided diagnostics, and updated repair information, accessible via mobile, tablet, or desktop devices.
1.1 Models Covered
- Vehicle: Chevrolet Colorado (2015-2022)
- Gas Engines: 2.5L and 3.6L
- Diesel Engines: 3.6L LFX and 2.8L LWN
Figure 1.1: Front cover of the Haynes Repair Manual for Chevrolet Colorado (2015-2022).
2. Routine Maintenance and Servicing
Regular maintenance is crucial for the longevity and reliable operation of your Chevrolet Colorado. This section outlines routine checks and servicing procedures to keep your vehicle in optimal condition.
2.1 Underhood View - 2.5L Engine
Familiarize yourself with the key components under the hood of your 2.5L engine. Refer to the diagram below for component identification.
Figure 2.1: Underhood view of a 2.5L engine. Key components include: 1. Coolant surge tank and pressure cap, 2. Engine air cleaner/filter, 3. Engine oil fill cap, 4. Engine cooling fan, 5. Engine oil level dipstick, 6. Fuse block, 7. Brake/clutch fluid reservoir, 8. Windshield washer fluid reservoir, 9. Battery.
2.2 Lubricants, Fluids, and Tire Pressures
Correct fluid levels and tire pressures are vital for vehicle safety and performance. Use the QR codes below to access detailed information on recommended lubricants, fluids, and tire pressure specifications for your specific model.
Figure 2.2: Scan these QR codes for online access to detailed information regarding lubricants, fluids, and tire pressures.
- Lubricants and Fluids: https://hyns.io/bdaafeba
- Tire Pressure Information: https://hyns.io/5b105005
Important Note: Always refer to the manufacturer's specifications for your specific vehicle model year when performing maintenance. The information provided via QR codes is regularly updated to ensure accuracy.
3. Engine Repair Procedures
This section covers detailed repair procedures for the 2.5L and 3.6L gas engines, as well as the 2.8L LWN diesel engine. It includes instructions for component removal, installation, and adjustments.
3.1 2.5L Engine Repair Procedures
Detailed steps for servicing and repairing components specific to the 2.5L engine, including timing chain procedures, cylinder head work, and more.
Figure 3.1: Illustration of timing chain and camshaft components for a 2.5L engine, detailing installation and tensioning procedures.
3.2 3.6L Engine Repair Procedures
Comprehensive instructions for the 3.6L gas engine, covering various repair tasks from top-end to bottom-end components.
3.3 2.8L LWN Diesel Engine Repair Procedures
Specific repair guidance for the 2.8L LWN diesel engine, including unique components and systems. Additional diesel repair information is available online via QR code access.
4. Vehicle Systems
This section details the various systems of your Chevrolet Colorado, providing repair and maintenance procedures for each.
4.1 Cooling, Heating, and Air Conditioning Systems
Procedures for maintaining and repairing the cooling system (radiator, water pump, thermostat), heating system, and air conditioning components.
4.2 Fuel and Exhaust Systems
Information on fuel delivery, fuel injection, and exhaust system components. This includes procedures for the crankshaft position sensor.

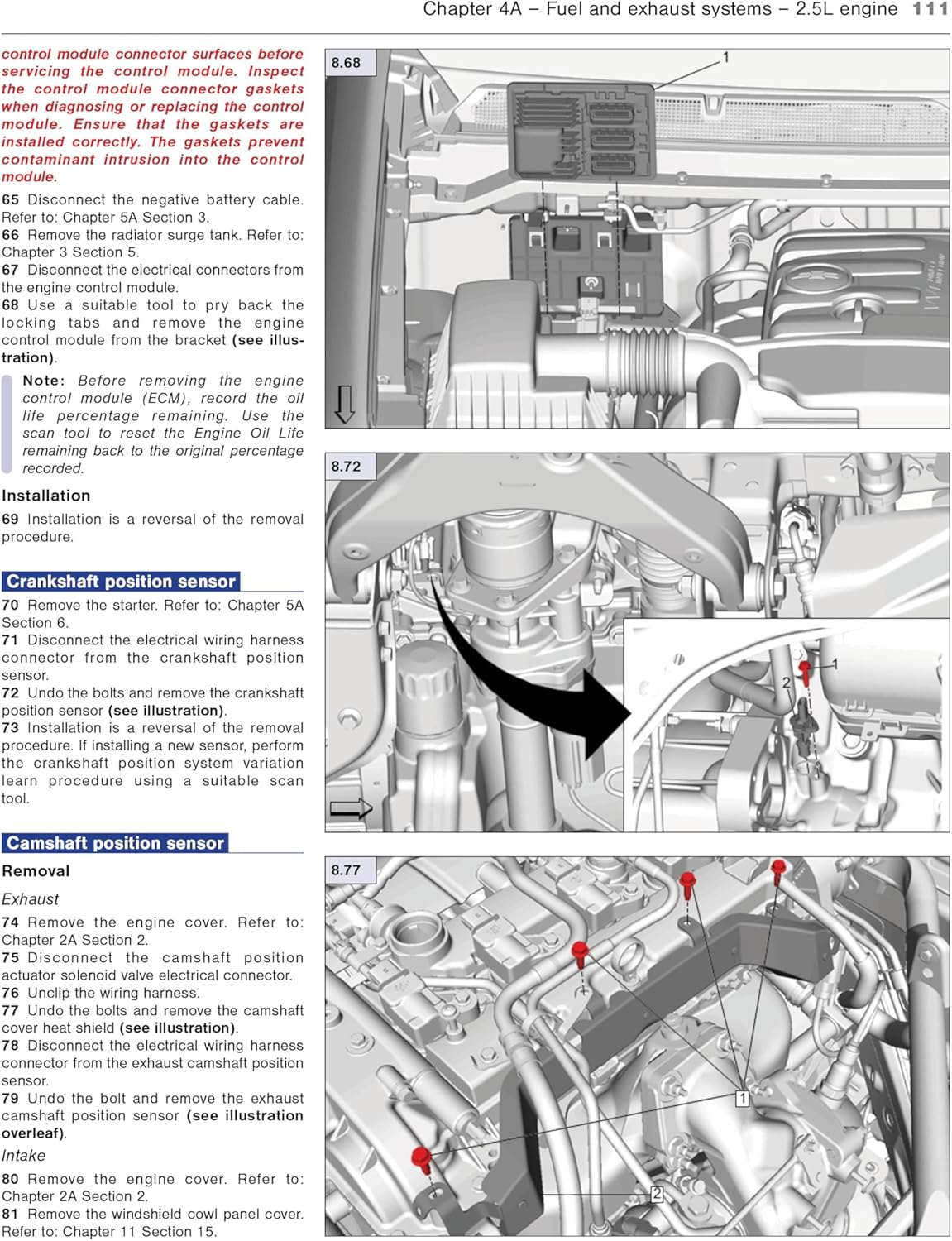

Figure 4.1: Illustration detailing the removal and installation of the crankshaft position sensor.
4.3 Starting and Charging / Ignition System
Guidance on the starter motor, alternator, battery, and ignition system components, including spark plugs and ignition coils.
4.4 Clutch, Manual Transmission, Automatic Transmission, and Transfer Case
Repair and maintenance procedures for the clutch assembly, manual and automatic transmissions, and the transfer case for four-wheel-drive models.
4.5 Drive Shaft, Half Axles & Shafts
Instructions for servicing and replacing drive shafts, half axles, and related components.
4.6 Braking System
Detailed procedures for inspecting, maintaining, and repairing the braking system, including disc brakes, drum brakes, parking brake, and brake pedal position sensor.
Figure 4.2: Illustrations of various braking system components, including drum brake assembly and brake pedal position sensor.
4.7 Suspension & Steering
Guidance on suspension components (shocks, struts, springs) and steering system (power steering, steering gear, tie rods).
4.8 Body & Accessories / Body Electrical System
Instructions for bodywork, interior components, and the vehicle's electrical system, including switches and wiring.

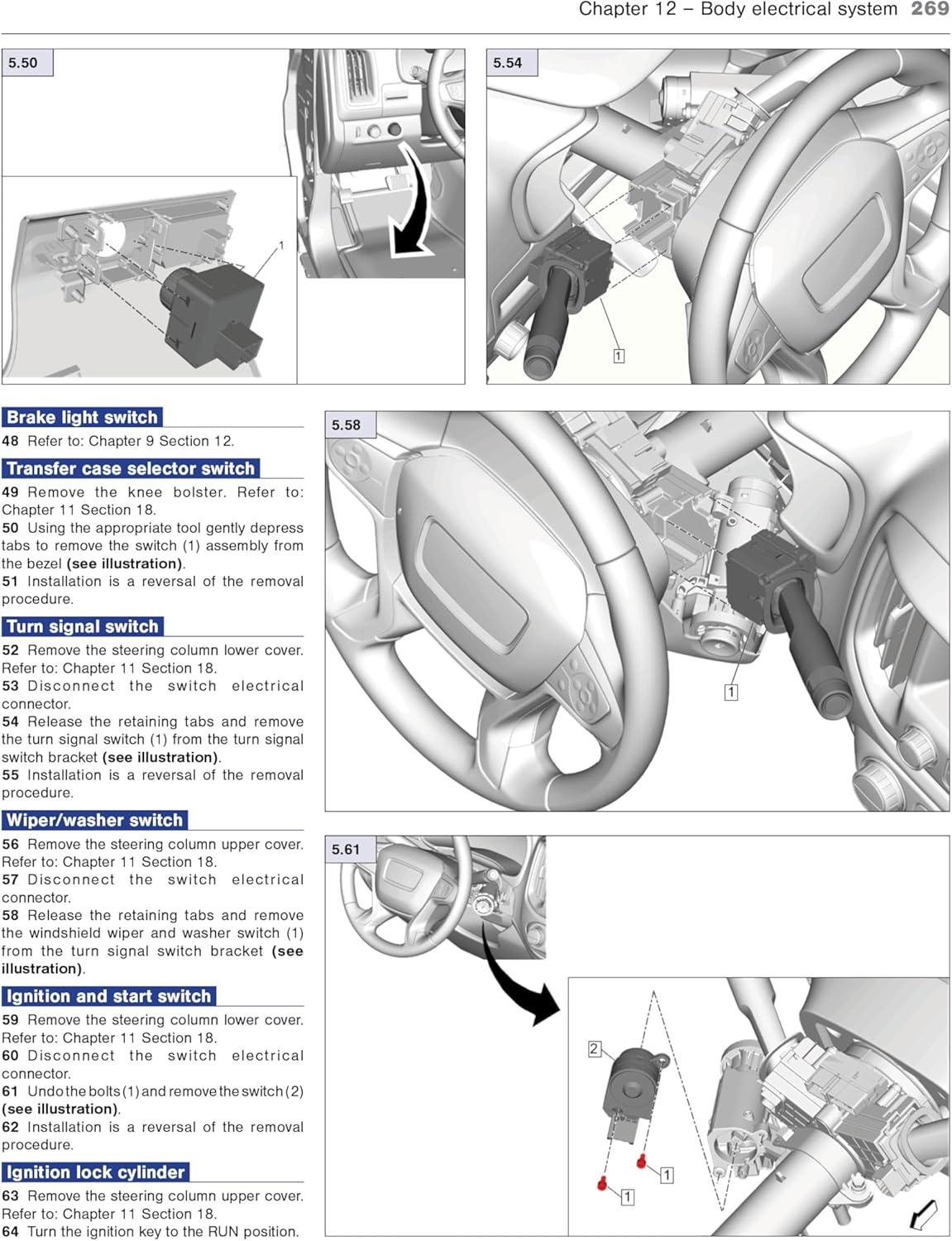

Figure 4.3: Illustrations of body electrical components, including the brake light switch, transfer case selector switch, turn signal switch, wiper/washer switch, and ignition lock cylinder.
4.9 Wiring Diagrams
Access to comprehensive wiring diagrams is available online through the integrated QR codes, providing detailed electrical schematics for troubleshooting and repair.
5. Troubleshooting
This section provides guidance on diagnosing common vehicle problems. For advanced diagnostics and a fault finder tool, utilize the online resources.
Figure 5.1: Scan this QR code to access the online fault finder and additional troubleshooting information.
Online Troubleshooting Link: https://hyns.io/322ca398
The online fault finder allows you to input symptoms and receive guided diagnostic steps, helping to identify the root cause of issues efficiently.
6. Specifications
This section provides key specifications for the Haynes Repair Manual itself and general product details.
| Attribute | Value |
|---|---|
| Brand | Haynes |
| Model | Chevrolet Colorado (2015-2022) Haynes Repair Manual |
| Item Model Number | 24028 |
| Product Dimensions | 25.91 x 20.88 x 1.52 cm |
| Item Weight | 789 g |
| ASIN | 162092417X |
| Manufacturer | Haynes Manuals N. America, Inc. |
7. Support and Warranty Information
Haynes manuals are designed to empower vehicle owners to perform their own maintenance and repairs, potentially saving significant costs on service center fees. While this manual provides extensive guidance, it is important to exercise caution and consult a professional mechanic for tasks beyond your skill level or comfort.
For additional support, including videos, tips, and details on the complete Haynes line of products, please visit the official Haynes website:
Official Haynes Website: www.haynes.com
This manual is a comprehensive guide, but it does not constitute a warranty for vehicle parts or repairs performed. Always ensure you are using the correct tools, safety equipment, and following all local regulations and safety guidelines when working on your vehicle.
