مقدمة
This instruction manual provides essential information for the safe and efficient use of your Hotpzeddaque Self-Cleaning Cat Litter Box. Please read this manual thoroughly before initial setup and retain it for future reference. Proper installation, operation, and maintenance will ensure optimal performance and longevity of the product.
معلومات السلامة
- أمان ضد القرص: The litter box is equipped with built-in infrared sensors that automatically stop rotation if a cat is detected entering or exiting the unit during a cleaning cycle. This feature is designed to prevent injury.
- مزود الطاقة: استخدم محول الطاقة المرفق فقط. تأكد من أن مأخذ الطاقة يفي بالجهد المحدد.tagالمتطلبات.
- الموقع: Place the litter box on a flat, stable surface away from direct sunlight, heat sources, and moisture.
- الأطفال والحيوانات الأليفة: Keep children and other pets away from the unit during operation to prevent accidental interference.
- تنظيف: Always unplug the unit before cleaning or performing any maintenance. Do not immerse the main unit in water.
- نوع القمامة: This device is designed for use with clumping cat litter. Do not use non-clumping, crystal, or silica gel litters as they may interfere with the cleaning mechanism.
محتويات الحزمة
تأكد من وجود جميع العناصر في العبوة:
- 1 x Hotpzeddaque Self-Cleaning Cat Litter Box
- 1 x Mineral Cat Litter (10lbs)
- 1 × محول الطاقة
- 1 × دليل المستخدم (هذه الوثيقة)
- 1 x Cozy Litter Mat
- 3 x Waste Bags
- 1 × فرشاة تنظيف
- 1 x Sifting Litter Scoop
المنتج انتهىview
The Hotpzeddaque Self-Cleaning Cat Litter Box automates the litter cleaning process, providing a hygienic environment for your cat and reducing manual scooping.

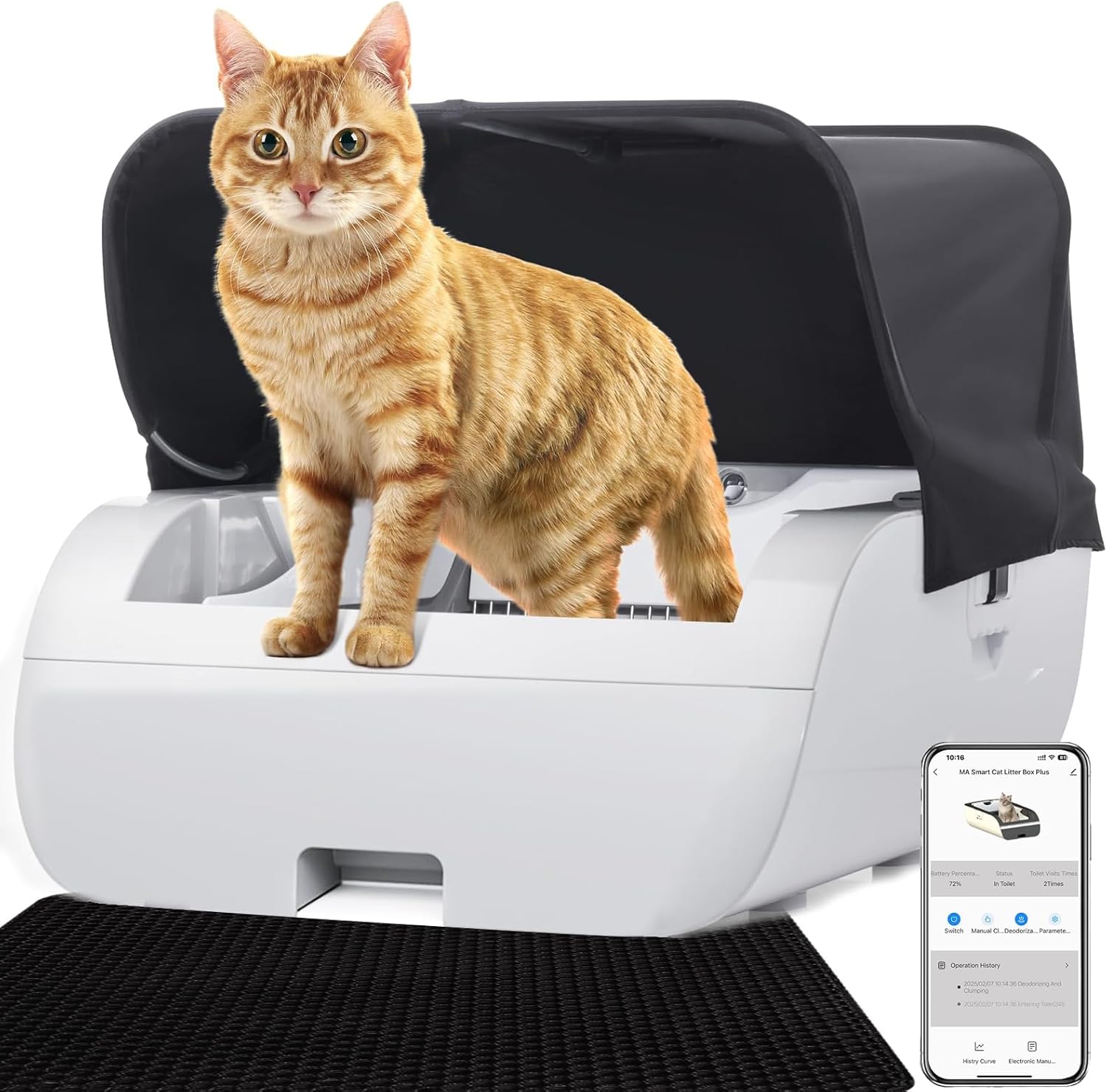

The Hotpzeddaque Self-Cleaning Cat Litter Box, shown with its tent cover, provides an automated solution for litter management.
المميزات الرئيسية:
- التنظيف الذاتي التلقائي: The unit automatically sifts and cleans litter after each use.
- App & WiFi Control: Connects to the Tuya Smart Life App for remote monitoring and control (supports 2.4G/5G WiFi).
- مجسات السلامة: Infrared sensors detect cat presence to prevent operation during use.
- التحكم في الرائحة: Features a sealed waste compartment and activated carbon filter to minimize odors.
- التصميم المفتوح: A wide, low-entry design accommodates kittens, large cats, and senior cats.
- التوافق: Works with various clumping cat litters.
The control panel features indicators for power status, battery level, cat detection, and deodorizer activity.
This diagram illustrates the control panel's functions and the location of the built-in battery, which provides backup power.
يثبت
- أفرغ: قم بإزالة جميع المكونات بعناية من العبوة.
- الموقع: Position the litter box on a level, dry surface in a well-ventilated area. Ensure there is sufficient space around the unit for access and air circulation.
- تركيب كيس النفايات: Open the waste compartment and insert a waste bag, ensuring it is properly secured.
- أضف رملًا: Pour clumping cat litter into the main litter bed. Ensure the litter level is between the MIN and MAX fill lines indicated inside the unit. Do not overfill.

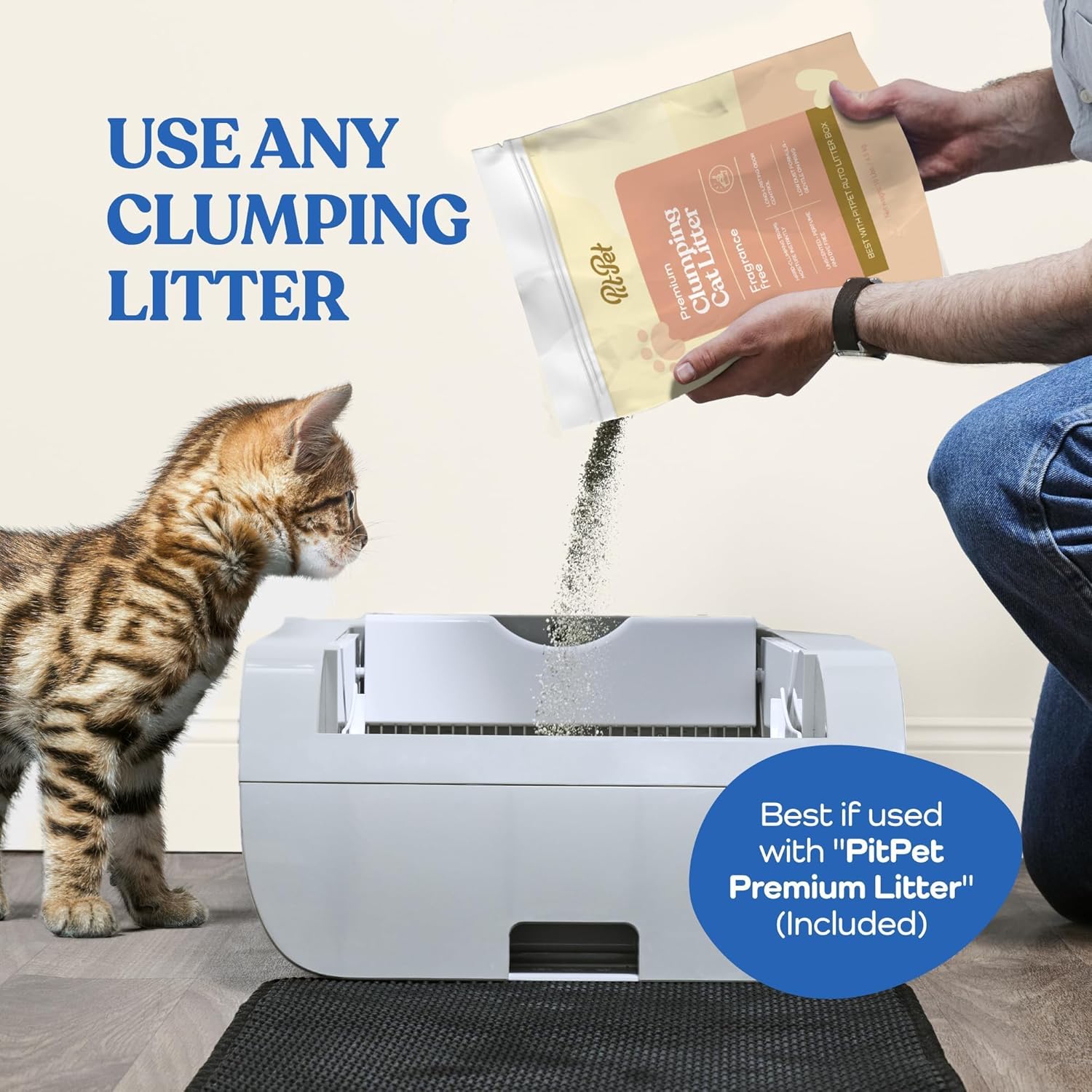

This image demonstrates the process of adding clumping litter to the litter box. The unit is compatible with various types of clumping litter.
- توصيل الطاقة: Plug the power adapter into the unit and then into a wall outlet. The power indicator on the control panel should illuminate.
- اتصال التطبيق (اختياري): Download the Tuya Smart Life App from your device's app store. Follow the in-app instructions to connect your litter box to your home WiFi network. This allows for remote monitoring and control.
تعليمات التشغيل
دورة التنظيف التلقائية:
The litter box is designed to automatically clean itself after your cat uses it. After your cat exits the unit, a delay timer will activate (default setting may vary, check app for customization). Once the delay concludes, the internal rake will sift through the litter, depositing waste into the sealed waste compartment.

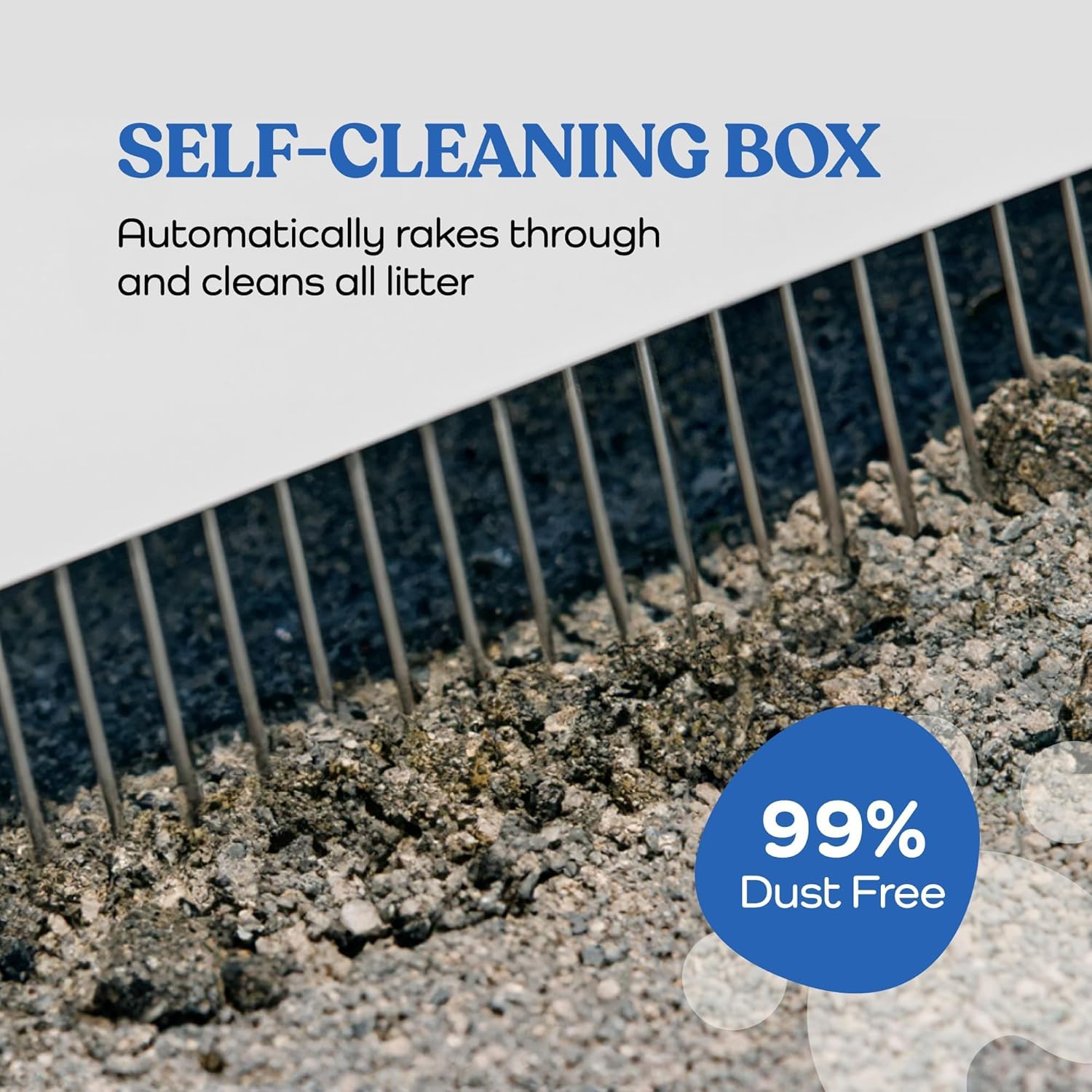

The internal rake mechanism automatically sifts through the litter, separating waste from clean litter.
التنظيف اليدوي:
To initiate a cleaning cycle manually, press the designated button on the control panel or use the mobile app. Ensure no cat is inside the unit before starting a manual cycle.
App & WiFi Control:
The Tuya Smart Life App allows you to:
- Monitor your cat's usage habits and activity logs.
- Remotely start or stop cleaning cycles.
- Adjust cleaning cycle delay times.
- Receive notifications regarding waste compartment status or potential issues.
الصيانة والتنظيف
استبدال أكياس النفايات:
The waste bag should be replaced every 5-8 days, depending on the number of cats and usage frequency. To replace:
- افصل الوحدة عن مصدر الطاقة.
- Open the waste compartment.
- Carefully remove the full waste bag and dispose of it.
- Insert a new waste bag, ensuring it is securely fitted.
- Close the waste compartment and plug the unit back in.
تنظيف الوحدة:
Regular cleaning of the main unit is recommended to maintain hygiene. Always unplug the unit before cleaning.
- امسح الأسطح الخارجية بالإعلانamp قطعة قماش ومنظف خفيف.
- For deeper cleaning, components such as the rake, pedal, cat toilet, and feces collection bin can be removed and washed. Refer to the diagram below for component identification.
This diagram breaks down the litter box into its main components, highlighting parts like the rake, pedal, cat toilet, feces collection bin, and base, to assist with cleaning and reassembly.
- Ensure all parts are completely dry before reassembling and plugging the unit back in.
فلتر الكربون المنشط:
The activated carbon filter helps absorb odors. Replace the filter periodically (e.g., every 1-3 months) for optimal odor control. Refer to the product packaging or manufacturer's webموقع إلكتروني للاطلاع على توفر فلاتر الاستبدال وتعليمات الاستخدام.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الوحدة لا تعمل بالطاقة. | محول الطاقة غير متصل؛ مشكلة في منفذ الطاقة. | Ensure power adapter is securely plugged into the unit and a working wall outlet. Check the power outlet with another device. |
| Cleaning cycle does not start. | Cat detected inside; litter level incorrect; sensor obstruction. | Ensure no cat is in the unit. Check litter level. Clean sensors for any obstructions. |
| لا تزال الرائحة كريهة. | Waste bag full; activated carbon filter needs replacement; unit needs cleaning. | Replace waste bag. Replace activated carbon filter. Perform a thorough cleaning of the unit. |
| مشاكل اتصال التطبيق. | Incorrect WiFi password; router too far; 2.4G/5G band issue. | Verify WiFi password. Move unit closer to router. Ensure your router supports 2.4G/5G and the unit is connecting to the correct band. Restart router and unit. |
تحديد
- رقم الموديل: دبليو1264 بي283678
- أبعاد المنتج: 29.9 بوصة طول × 18.5 بوصة عرض × 9.7 بوصة ارتفاع
- وزن السلعة: 23.2 رطل
- مادة: أكريلونيتريل بوتادين ستايرين (ABS)
- Litter Box Type: صندوق فضلات القطط ذاتي التنظيف
- الاتصال: App Control, WiFi (2.4G/5G)
- مصدر الطاقة: AC Adapter (included), Built-in Battery (4000 mAh for backup)
- لون: Black with Tent (as configured)
- رمز المنتج العالمي: 707889184646
The image provides dimensional information for the litter box, illustrating its size with and without the tent accessory.
الضمان والدعم
For detailed warranty information, please refer to the warranty card included with your product or visit the official Hotpzeddaque website. If you encounter any issues or require technical assistance, please contact Hotpzeddaque customer support through the contact information provided on the product packaging or webموقع.
