دليل استخدام بنك الطاقة المغناطيسي MOMAX بسعة 10000 مللي أمبير

1. المقدمة

Thank you for choosing the MOMAX Magnetic Power Bank 10000mAh. This portable charger is designed to provide efficient and convenient power to your devices, especially iPhone 12/13/14/15/16 Series, with its MagSafe compatibility and versatile charging options.

المميزات الرئيسية:

• تصميم نحيف للغاية: At only 0.5 inches (13mm) thick, it is sleek and easy to carry, fitting comfortably in your hand or pocket.
• سعة كبيرة: A massive 10,000mAh capacity can charge compatible iPhones up to 1.7 times.
• Fast Wired & Wireless Charging: Supports 15W wireless charging for Qi-enabled devices and 20W PD USB-C wired charging, allowing simultaneous charging of two devices.
• جاذبية مغناطيسية قوية: Equipped with a powerful N52 magnet for secure attachment and optimal wireless charging alignment.
• حماية أمان متقدمة: Built-in safeguards against overcharging, short circuits, and temperature fluctuations ensure a safe and reliable charging experience.

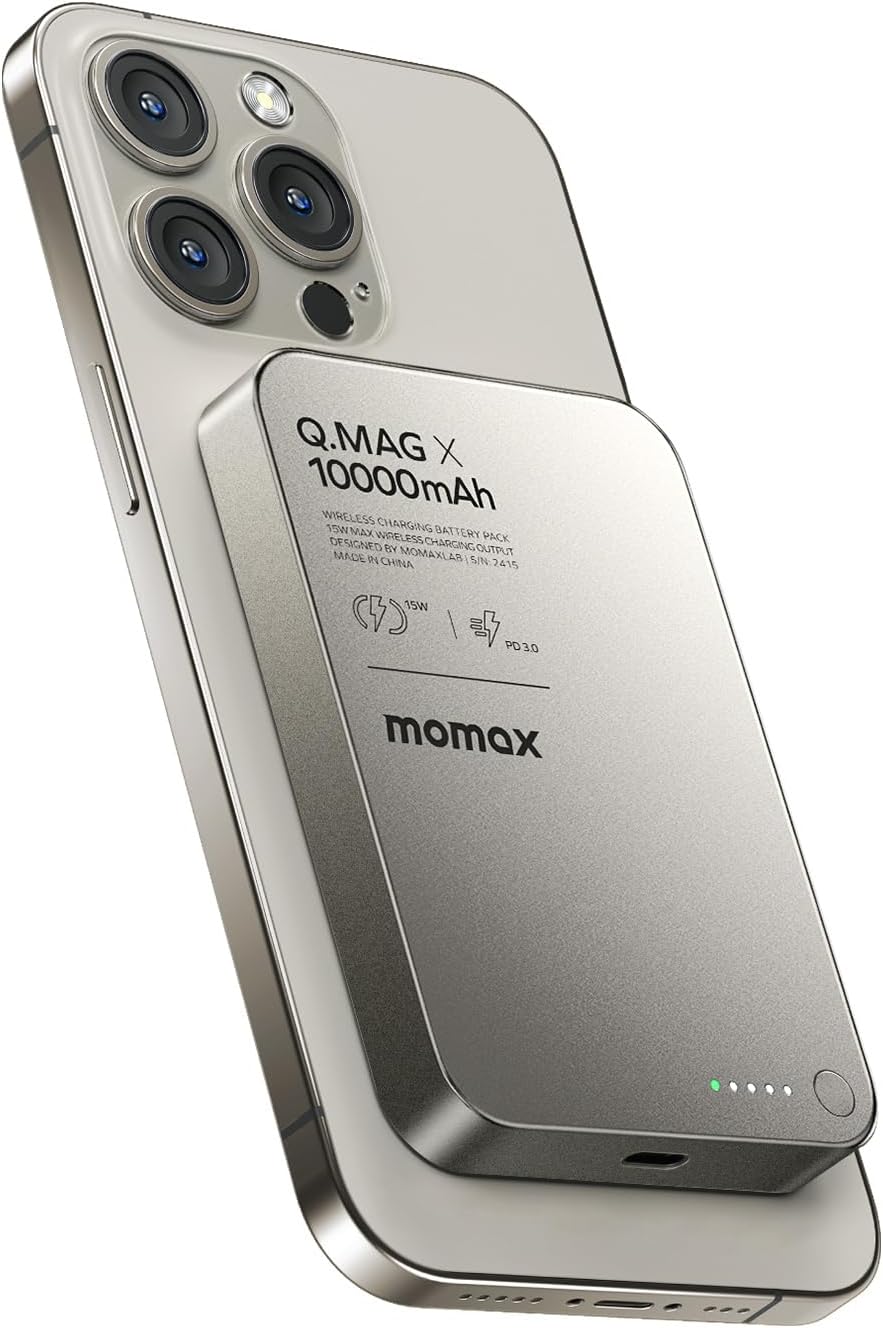

The MOMAX Magnetic Power Bank securely attaches to your iPhone for convenient charging.

2. الإعداد

ما هو المتضمن:

• MOMAX Magnetic Power Bank (Q.MAG X1)
• كابل USB-C إلى USB-C
• دليل التعليمات
• ستوكات قطعة قماش للتنظيف

الشحن الأولي:

1. Before first use, fully charge the power bank. Connect the provided USB-C cable to the power bank's USB-C port and to a compatible USB power adapter (not included).
2. The LED indicator lights on the power bank will illuminate to show charging progress. A full charge typically takes 2 to 4 hours.
3. Once fully charged, all five LED lights will remain solid.

فحص مستوى البطارية:

Press the small button on the lower right-hand corner of the power bank. The five LED lights will indicate the remaining battery level:

• 1 LED: 0-20%
• 2 مصابيح LED: 20-40%
• 3 مصابيح LED: 40-60%
• 4 مصابيح LED: 60-80%
• 5 LEDs: 80-100% (Full Charge)

The power bank features LED indicators for battery status and a USB-C port for charging.

3. تعليمات التشغيل

الشحن اللاسلكي (متوافق مع MagSafe):

1. Ensure your device is MagSafe compatible (e.g., iPhone 12/13/14/15/16 Series).
2. Align the MOMAX Magnetic Power Bank with the back of your iPhone. The N52 strong magnets will securely snap it into place, ensuring optimal alignment for wireless charging.
3. سيبدأ بنك الطاقة تلقائيًا في شحن جهازك بقدرة تصل إلى 15 واط.
4. You can continue to use your phone, make calls, or take photos while the power bank is attached and charging.

The N52 strong magnets ensure a secure and perfectly aligned connection for wireless charging.

Wired Charging (USB-C PD):

1. Connect one end of the provided USB-C cable to the power bank's USB-C port.
2. قم بتوصيل الطرف الآخر من كابل USB-C بمنفذ الشحن الخاص بجهازك.
3. The power bank supports 20W Power Delivery (PD) for fast wired charging.
4. The USB-C port is bidirectional, meaning it can be used for both charging the power bank and charging external devices.

The power bank offers both wired and wireless charging capabilities for versatile use.

4. الصيانة

• Keep the power bank clean by wiping it with the provided microfiber cloth.
• قم بتخزين الجهاز في مكان بارد وجاف بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.
• تجنب سقوط بنك الطاقة أو تعريضه لصدمات قوية.
• Do not expose the power bank to water or other liquids. If it gets wet, disconnect it immediately and allow it to dry completely before reuse.

5. استكشاف الأخطاء وإصلاحها

بنك الطاقة لا يشحن:

• تأكد من توصيل كابل USB-C بشكل آمن بكل من بنك الطاقة ومحول الطاقة.
• تأكد من أن محول الطاقة يعمل بشكل صحيح ومتصل بمأخذ طاقة حي.

الجهاز لا يشحن من بنك الطاقة:

• تحقق من مؤشرات LED الخاصة ببنك الطاقة للتأكد من أنه يحتوي على شحن كافٍ.
• For wireless charging, ensure your device is MagSafe compatible and properly aligned with the power bank's magnetic area. Remove any non-MagSafe compatible cases that might interfere.
• For wired charging, ensure the USB-C cable is firmly connected to both the power bank and your device.
• If the power bank or your device feels excessively hot, the built-in safety protection may have temporarily halted charging. Allow them to cool down before resuming.

الشحن البطيء:

• For wired charging, ensure you are using a 20W Power Delivery (PD) compatible wall adapter for optimal speed.
• Wireless charging is generally slower than wired charging. Ensure proper alignment for the most efficient wireless charge.

6. المواصفات

Crafted with high-quality aluminum and glass for a premium feel and durability.

7. الضمان والدعم

The MOMAX Magnetic Power Bank 10000mAh comes with a ضمان لمدة 12 شهرًا من تاريخ الشراء. يُرجى الاحتفاظ بإيصال الشراء للمطالبة بالضمان.

For technical support, warranty inquiries, or any questions regarding your MOMAX product, please visit the official MOMAX webموقع:

www.momax.net

Manufacturer: MOMAX TECHNOLOGY (HK) LTD.
