TMEZON WLAN Video Door Intercom System User Manual

مقدمة

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your TMEZON WLAN Video Door Intercom System. This system is designed to enhance home security and communication, allowing you to see, hear, and speak to visitors at your door, as well as remotely unlock your door via a mobile application. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

معلومات السلامة

• تأكد من فصل جميع مصادر الطاقة قبل القيام بأي إجراءات توصيل الأسلاك أو التركيب.
• يجب أن يتم التثبيت بواسطة موظفين مؤهلين إذا كنت غير متأكد من الأسلاك الكهربائية.
• Do not expose the outdoor unit to extreme temperatures or direct water immersion. The outdoor unit is IP65 weatherproof, but not submersible.
• Use only the power adapter and cables supplied or recommended by TMEZON.
• Keep the indoor monitor away from heat sources and direct sunlight.
• Avoid placing the indoor monitor in areas with high humidity.
• لا تحاول تفكيك الجهاز أو إصلاحه بنفسك. اتصل بدعم العملاء للحصول على المساعدة.

محتويات الحزمة

يرجى التحقق من محتويات العبوة عند فتحها للتأكد من وجود جميع المكونات:

• 1 x Outdoor Doorbell Unit (MZ-E10)
• 1 x Indoor Monitor (MZ-M730)
• 1 x Power Adapter for Indoor Monitor
• مسامير التثبيت ومقابس الحائط
• موصلات الأسلاك
• RFID Key Fobs (Quantity may vary, typically 5-8)
• دليل المستخدم (هذه الوثيقة)

الصورة: أكثر منview of the TMEZON WLAN Video Door Intercom System components, showing the outdoor doorbell unit, the indoor monitor, several RFID key fobs, and a smartphone displaying the companion app.

المنتج انتهىview

Outdoor Doorbell Unit (MZ-E10)

• عدسة الكاميرا: يلتقط فيديو للزوار.
• مصابيح الأشعة تحت الحمراء: Provides night vision capabilities.
• ميكروفون: يلتقط الصوت من الزوار.
• المتحدث: يُخرج الصوت للتواصل ثنائي الاتجاه.
• زر الاتصال: Initiates a call to the indoor monitor and mobile app.
• قارئ RFID: For unlocking the door with RFID key fobs.

Indoor Monitor (MZ-M730)

• شاشة العرض: Shows live video feed from the outdoor unit.
• أزرار اللمس: For answering calls, unlocking, monitoring, and settings.
• ميكروفون: For speaking to visitors.
• المتحدث: For hearing visitors.
• فتحة بطاقة SD: For video recording storage (supports up to 256GB Micro SD card).
• منفذ الطاقة: يتصل بمحول الطاقة.
• محطات الأسلاك: For connecting to the outdoor unit and electronic lock.

Image: Diagram showing the physical dimensions of both the indoor monitor and the outdoor doorbell unit.

يثبت

1. مخطط الأسلاك

The system uses a 2-wire connection between the outdoor unit and the indoor monitor. An additional 2 wires are needed for connecting to an electronic lock (if applicable).

مهم: Ensure power is off before wiring. Refer to the detailed wiring diagram provided in the separate installation guide for specific terminal connections.

2. Mounting the Outdoor Unit

1. Choose a suitable location near your door, approximately 1.5 meters (5 feet) from the ground, avoiding direct sunlight or rain exposure (though the unit is IP65 weatherproof, sheltered placement is recommended).
2. Use the mounting bracket as a template to mark drilling holes on the wall.
3. حفر ثقوب وإدخال سدادات الحائط.
4. قم بتأمين دعامة التثبيت على الحائط باستخدام البراغي.
5. Connect the wiring from the outdoor unit to the pre-installed cables.
6. Attach the outdoor unit to the mounting bracket.

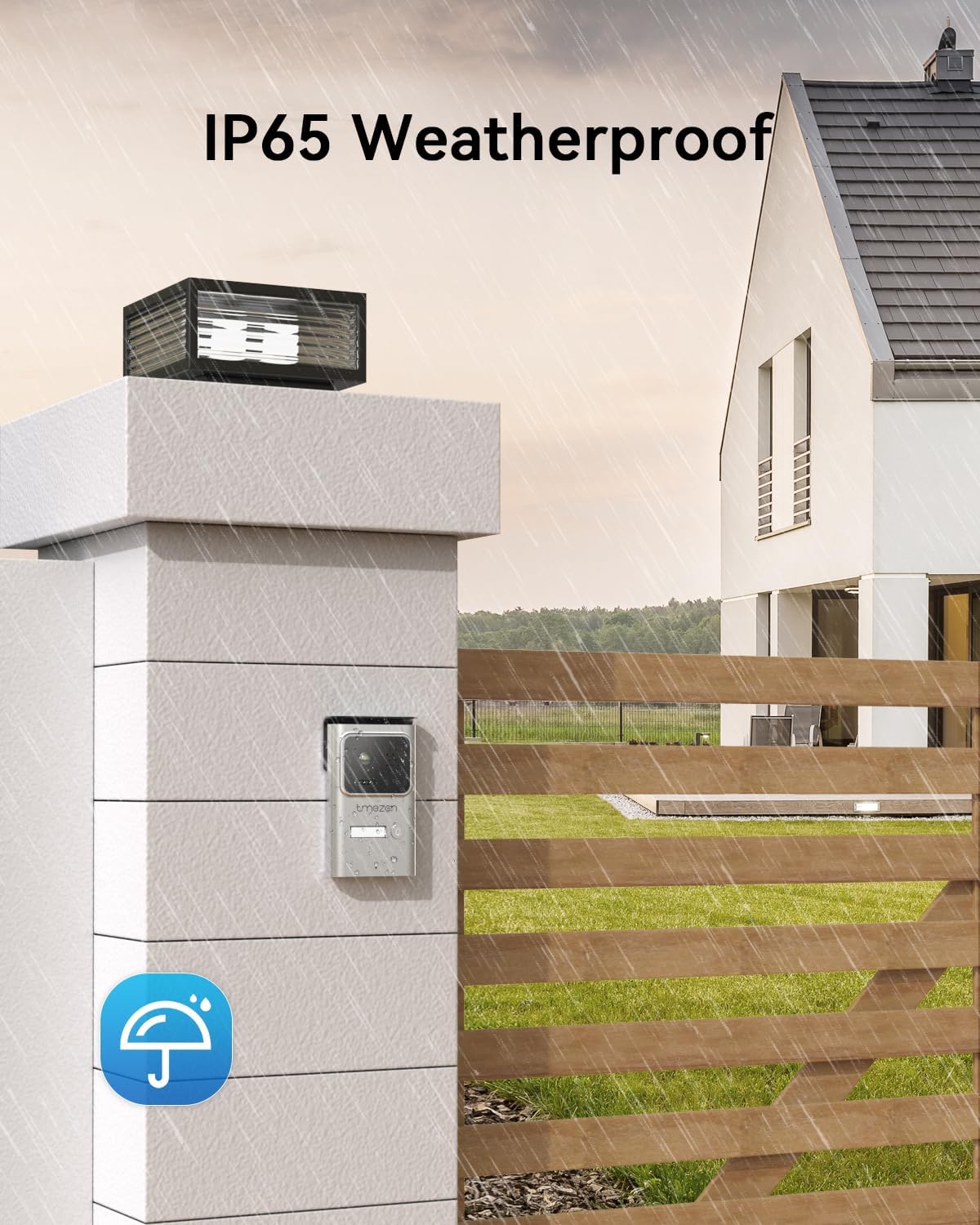

Image: The outdoor doorbell unit installed on a wall, illustrating its IP65 weatherproof design, suitable for outdoor conditions like rain.

3. تركيب الشاشة الداخلية

1. Select a convenient indoor location, such as a hallway or living room.
2. Mark drilling holes using the monitor's mounting bracket.
3. Drill holes, insert wall plugs, and secure the bracket.
4. Connect the 2-wire cable from the outdoor unit and the power adapter to the indoor monitor's terminals.
5. Mount the indoor monitor onto the bracket.

4. Initial Power-On and Wi-Fi Setup

1. Plug in the power adapter for the indoor monitor. The monitor will power on.
2. Follow the on-screen prompts to configure the date, time, and language.
3. Navigate to the Wi-Fi settings on the indoor monitor. Select your home Wi-Fi network and enter the password.
4. Download the "Tuya Smart" or "Smart Life" app from your smartphone's app store (iOS App Store or Google Play Store).
5. تسجيل حساب وتسجيل الدخول.
6. In the app, add a new device. Select "Video Surveillance" > "Smart Doorbell" or scan the QR code displayed on the indoor monitor for quick pairing.
7. Follow the app's instructions to complete the pairing process. Ensure your phone is connected to a 2.4GHz Wi-Fi network during setup.

تعليمات التشغيل

1. الرد على المكالمة

When a visitor presses the call button on the outdoor unit, the indoor monitor will ring, and you will receive a notification on your paired smartphone app.

• On Indoor Monitor: Tap the "Answer" icon on the screen to establish two-way audio and video communication.
• On Smartphone App: Tap the notification to open the app and view the live feed. Tap the "Answer" button to speak with the visitor.

Image: The indoor monitor screen showing a live video feed of visitors, with on-screen icons for two-way audio communication and one-key door unlocking.

2. فتح الباب

يدعم النظام طرقًا متعددة لفتح القفل:

• من شاشة العرض الداخلية: During a call or while monitoring, tap the "Unlock" icon on the screen.
• من تطبيق الهاتف الذكي: During a call or while viewing the live feed, tap the "Unlock" icon in the app.
• Using RFID Key Fob: Present a registered RFID key fob to the RFID reader area on the outdoor unit. The door will unlock.

Image: Visual representation of three unlocking methods: using an RFID key fob, a generic touch/fingerprint icon (note: this model primarily uses RFID, not fingerprint), and unlocking via the mobile application.

Image: A smartphone displaying the TMEZON app interface, showing a live video feed and a prominent "Unlock" button for remote access control.

3. المراقبة

أنت تستطيع view the live feed from the outdoor unit at any time:

• On Indoor Monitor: Tap the "Monitor" icon on the main screen.
• On Smartphone App: Open the app and select the doorbell device to view العلف المباشر.

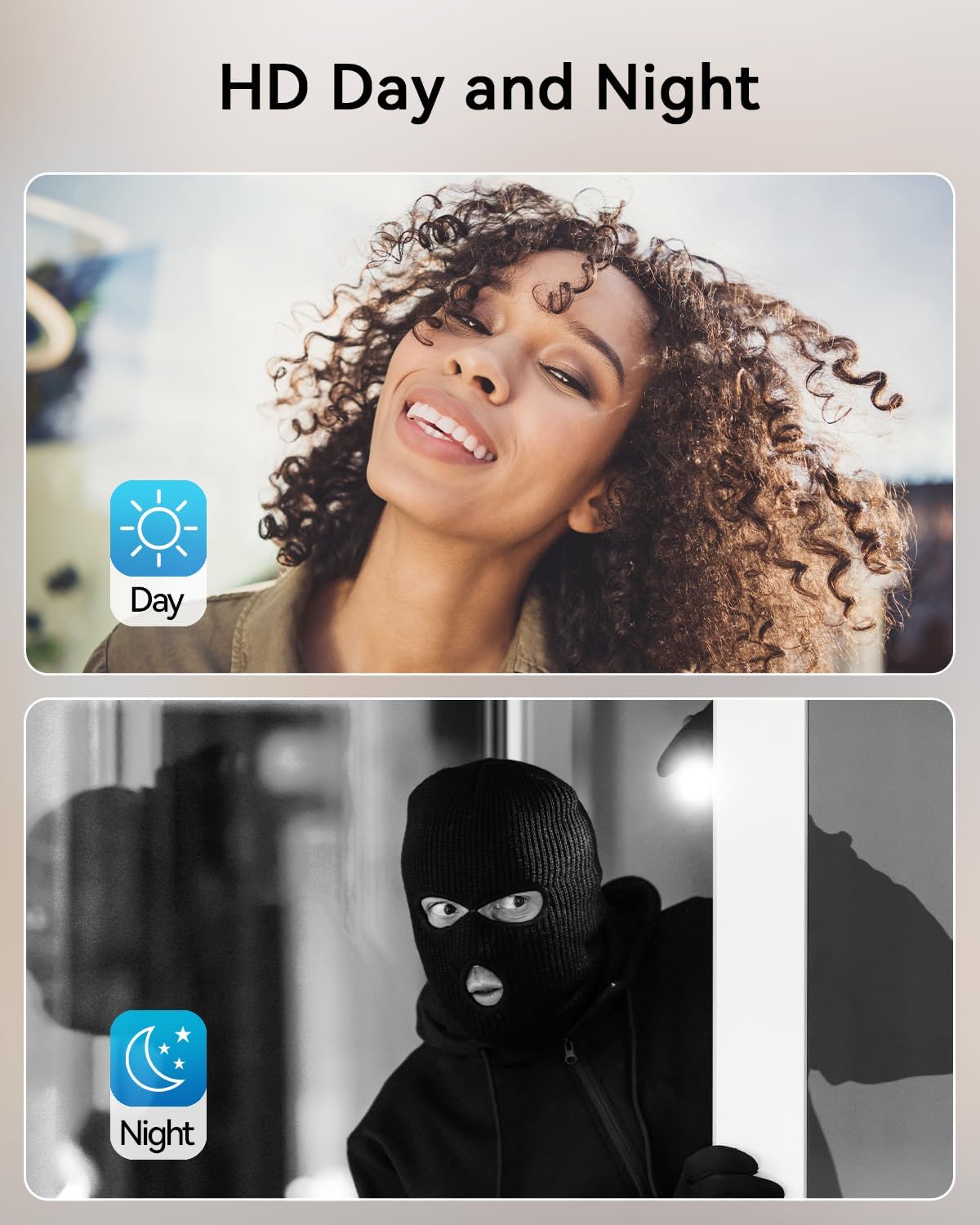

Image: Split image demonstrating the clear HD video quality during the day and the effective infrared night vision capability of the doorbell camera in low light conditions.

4. تسجيل الفيديو وتشغيله

The system supports recording video to a Micro SD card (not included) inserted into the indoor monitor.

• التسجيل اليدوي: During a live view or call, tap the "Record" icon on the indoor monitor or app.
• التسجيل التلقائي: Configure motion detection settings to automatically record when motion is detected.
• التشغيل: Access recorded videos via the "Playback" or "Gallery" option on the indoor monitor or within the smartphone app.

Image: The indoor monitor highlighting its Micro SD card slot for local storage, alongside a visual depicting the video recording and playback functionality.

5. Smart Motion Detection

The outdoor unit features motion detection. When motion is detected, the system can:

• أرسل إشعارات فورية إلى هاتفك الذكي.
• Automatically record video clips.

Adjust motion detection sensitivity and detection zones in the indoor monitor's settings or through the smartphone app to minimize false alarms.

Image: A visual demonstrating the smart motion detection feature, where the doorbell unit detects movement and triggers a notification on a connected smartphone.

صيانة

• تنظيف: Use a soft, dry cloth to clean the indoor monitor screen and the outdoor unit's camera lens. Do not use abrasive cleaners or solvents.
• تحديثات البرامج الثابتة: Periodically check for firmware updates via the indoor monitor's settings or the smartphone app to ensure optimal performance and new features.
• فحص الكابلات: افحص جميع الكابلات والوصلات بانتظام بحثًا عن أي علامات تآكل أو تلف.
• إدارة بطاقة SD: If using an SD card for recording, periodically review واحذف الطعام القديمtage to free up space, or enable loop recording if supported.

استكشاف الأخطاء وإصلاحها

If the problem persists after trying these solutions, please contact TMEZON customer support.

تحديد

الضمان والدعم

TMEZON products typically come with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official TMEZON webالموقع للحصول على شروط وأحكام الضمان التفصيلية.

For technical support, troubleshooting assistance, or warranty claims, please contact TMEZON customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (MZ-M730+MZ-E10) and purchase details ready.

Guaranteed software updates until: unknown (as per product specifications).
