Pioneer TS-W312S4 Champion Series 12 Subwoofer User Manual

1. انتهى المنتجview

The Pioneer TS-W312S4 Champion Series 12 Subwoofer is engineered for high-power handling and exceptional bass reproduction. Featuring a single 4 Ohm voice coil, this subwoofer is designed to deliver deep, impactful low frequencies for an immersive audio experience in various applications, including home theater, gaming, and car audio systems.

Its robust construction includes a dual-layer, fiber-reinforced elastic polymer surround, an iconic red spider for precise control, and a high heat resistance voice coil. The high rigidity IMPP composite seamless cone with honeycomb structure, coupled with double-stacked large magnets, ensures stable and linear excursion for powerful and accurate bass.

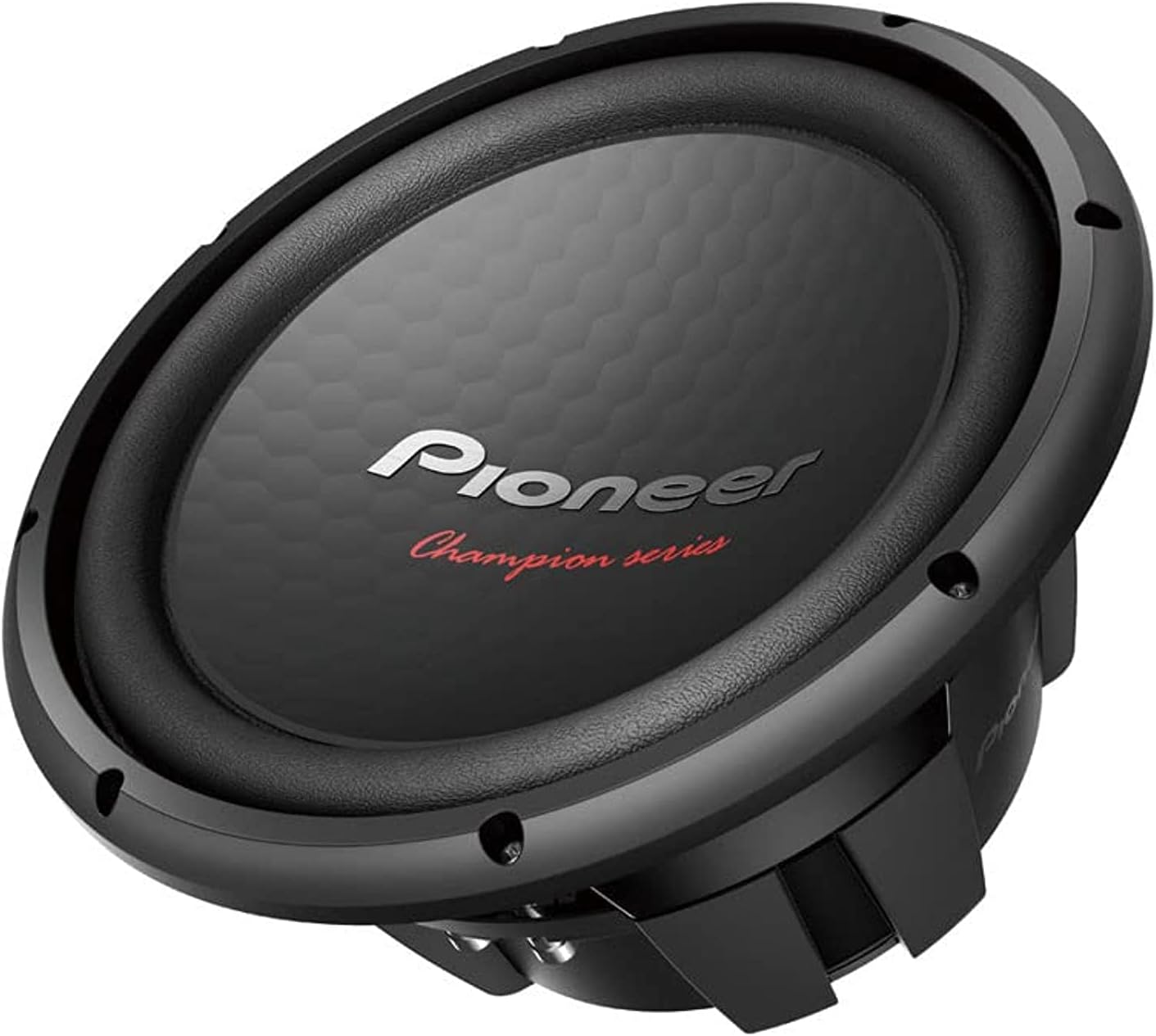

الشكل 1.1: الجبهة view of the Pioneer TS-W312S4 Champion Series 12 Subwoofer, showcasing its black cone and Pioneer branding.

2. معلومات السلامة

• التعامل مع الطاقة: تأكد من amplifier's power output matches the subwoofer's RMS power handling (500W RMS) to prevent damage. Exceeding the maximum music power (1600W) for prolonged periods can lead to component failure.
• تهوية: Install the subwoofer in a location with adequate ventilation to prevent overheating, especially during extended periods of high-volume operation.
• التوصيلات الكهربائية: Always use appropriate gauge wiring for connections. Incorrect wiring can lead to poor performance or damage to the subwoofer and amplifier. Consult a professional if unsure about wiring configurations.
• التركيب: Securely mount the subwoofer to prevent movement during operation. Loose mounting can cause rattling, damage to the enclosure, or injury.
• مستويات الاستماع: Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Listen at moderate volumes.

3. المميزات

• معالجة عالية الطاقة: 1600W Maximum Music Power / 500W RMS.
• محيط متين: Dual-layer, fiber-reinforced elastic polymer surround for high endurance.
• التحكم الدقيق: Iconic red spider design for stable and linear cone excursion.
• مقاومة الحرارة: High heat resistance voice coil and large magnet with high heat dissipation.
• Rigid Cone: High rigidity IMPP composite seamless cone with honeycomb structure for deeper and louder bass.
• محرك قوي: Double stacked large magnets and long voice coil with Aluminum bobbin.
• هيكل قوي: Newly optimized steel basket design to decentralize load and maintain accurate cone motion.
• مقاومة: Single 4 Ohm voice coil.
• عمق التركيب: 157 ملم.

4. محتويات العبوة

Upon opening the package, ensure all items are present and undamaged. The standard package for the TS-W312S4 subwoofer typically includes:

• Pioneer TS-W312S4 12-inch Subwoofer (1 Count)
• دليل المالك (هذه الوثيقة)
• Mounting Screws (may vary by region/retailer)

If any components are missing or damaged, please contact your retailer or Pioneer customer support immediately.

5. الإعداد والتثبيت

Proper installation is crucial for optimal performance and longevity of your subwoofer. It is recommended to have installation performed by a qualified professional.

5.1 تصميم العلبة

The TS-W312S4 is designed to perform optimally in a sealed or ported enclosure. Refer to Pioneer's official website or the included enclosure guide (if applicable) for recommended enclosure volumes and port dimensions. An improperly designed enclosure can severely limit the subwoofer's performance and potentially cause damage.

5.2 التركيب

Ensure the mounting surface is sturdy and free from obstructions. The subwoofer requires a mounting depth of 157 mm. Use appropriate tools and follow safety precautions during installation.

الشكل 5.1: الجانب view of the Pioneer TS-W312S4 Subwoofer, illustrating its depth and robust construction, important for mounting considerations.

5.3 توصيلات الأسلاك

The TS-W312S4 features a single 4 Ohm voice coil. Proper wiring to your amplifier is essential. Always ensure the ampيجب إيقاف تشغيل مكبر الصوت قبل إجراء أي اتصالات.

• Connect the positive (+) terminal of the subwoofer to the positive (+) terminal of the ampمخرج مكبر الصوت الفرعي.
• Connect the negative (-) terminal of the subwoofer to the negative (-) terminal of the ampمخرج مكبر الصوت الفرعي.
• Use high-quality speaker wire of adequate gauge (e.g., 12-16 gauge) to minimize power loss and ensure stable current flow.

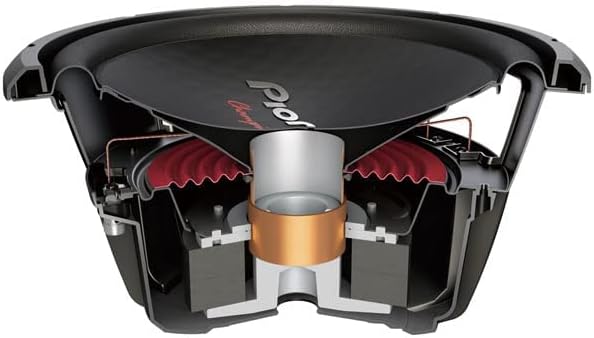

الشكل 5.2: المقطع العرضي view of the Pioneer TS-W312S4 Subwoofer, highlighting the voice coil, magnet structure, and cone assembly, which are critical for understanding its performance and wiring points.

For multi-subwoofer setups or specific amplifier configurations, consult your amplifier's manual or a professional installer for correct wiring diagrams.

6. تشغيل مكبر الصوت الفرعي

Once installed and wired correctly, the subwoofer operates in conjunction with your amplifier and audio source. Follow these guidelines for optimal performance:

• Ampإعدادات مكبر الصوت: Adjust the gain, low-pass filter (LPF), and bass boost settings on your amplifier according to your system's requirements and personal preference. Start with conservative settings and gradually increase them.
• تردد التقاطع: اضبط مرشح الترددات المنخفضة (LPF) على جهازك ampقم بضبط مكبر الصوت أو وحدة الرأس على تردد مناسب، عادةً ما بين 60 هرتز و 100 هرتز، لضمان أن يقوم مضخم الصوت الفرعي بإعادة إنتاج الترددات المنخفضة فقط.
• التحكم في المرحلة: جرب مفتاح الطور (0° أو 180°) على جهازك amplifier to achieve the best blend with your main speakers.
• فترة التعود: امنح نفسك فترة تأقلم تتراوح بين ٢٠ و٣٠ ساعة تقريبًا من الاستماع المعتدل قبل تشغيل مضخم الصوت إلى أقصى طاقته. هذا يسمح لمكونات التعليق بالاسترخاء والأداء الأمثل.
• تجنب القطع: Do not drive the amplifier into clipping (distortion), as this can severely damage the subwoofer's voice coil. If you hear distortion, reduce the volume or ampكسب مكبر.

7. الصيانة

The Pioneer TS-W312S4 subwoofer requires minimal maintenance to ensure long-term performance.

• تنظيف: Use a soft, dry cloth to wipe down the cone and surround. Avoid using harsh chemicals or abrasive cleaners, which can damage the materials.
• تقتيش: افحص مضخم الصوت الفرعي دوريًا بحثًا عن أي علامات تلف في المخروط أو الحافة أو غطاء الغبار. تحقق من توصيلات الأسلاك للتأكد من إحكامها وخلوها من التآكل.
• بيئة: احفظ مضخم الصوت بعيدًا عن أشعة الشمس المباشرة، ودرجات الحرارة القصوى، والرطوبة الزائدة. ورغم متانته، إلا أنه ليس مقاومًا للماء.

8. استكشاف الأخطاء وإصلاحها

إذا واجهت مشاكل مع مضخم الصوت الخاص بك، فراجع المشاكل والحلول الشائعة التالية:

If the problem persists after trying these solutions, contact Pioneer customer support or a qualified audio technician.

9. المواصفات

10. الضمان والدعم

Pioneer products are manufactured to high quality standards. For information regarding the warranty period and terms for your TS-W312S4 subwoofer, please refer to the warranty card included with your purchase or visit the official Pioneer webموقع لمنطقتك.

For technical assistance, troubleshooting beyond this manual, or to inquire about service, please contact Pioneer customer support. Contact details can typically be found on the official Pioneer webالموقع أو على عبوة منتجك.

When contacting support, please have your product model number (TS-W312S4) and purchase information readily available.
