Desktop and Wireless Fingerprint
and Card Terminal
M-Bio
Quick Guide
Package List
 | Device |
 | USB Cable |
 | Quick Guide |
 | RFID Card |
Notification:
- Please check if the package contains all the items listed above. Contact the distributor if there is any problem.
- Please keep the product away from the magnetic field, and avoid causing any damage to the device.
- Please use the original power supply or refer to the instruction to get the right power supply.
- Please strictly follow the instructions to install the product. Any damage to it caused by incorrect operation and wiring are not under warranty.
Illustration for Placing Finger
- Correct Method
( Straighten your finger and then place it on the sensor Ensure the finger is flat and covers the entire sensor)
Always place finger in the center of the sensor.
Try to place your finger covers the entire sensor.
- Incorrect Method
 |  |  |
| the sensor backlight turns off. | DO NOT place finger away from the center of the sensor. | DO NOT place finger at an angle. |
 |  |  |
| DO NOT take off finger during the fingerprint verification process. | DO NOT just use your fingertip. | DO NOT slide your finger during the fingerpint verification process. |

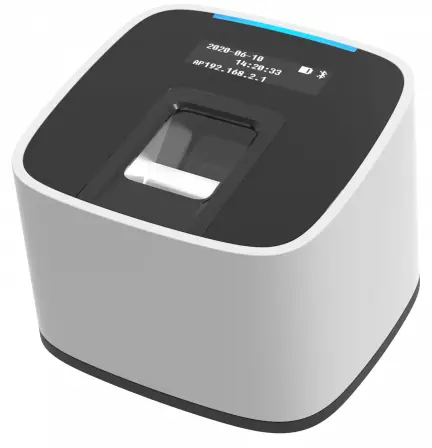

Appearance
 |  |
Operation Guide
- IMPORTANT:
M-Bio is suitable for USB 5V power supply only. Power on the device still the device screen display as below: - Register User:
Add One Fingerprint per User Only:
Note:
- After finish enrolling the current user, the device will continue to register another user.
- After finish enrollment, please swipe enroll card to exit enroll status.
Notice:
During the device in the regsiter mode without any operation for 3 sec, the M-bio will back to the normal mode.
- Add Card Only:
Note:
- After finish enrolling current user,
- After finish enrollment, please swipe enroll card to exit enroll status.
Notice:
During the device in the regsiter mode without any operation for 3 sec the M-bio will back to the normal mode.
- Delete User:
- Delete Fingerprint or Card
After delete one user, you can continue to delete another user or swipe Delete Card to exit delete mode.
Notice:
During the device in the delete mode without any operation for 3 sec the M-bio will back to the normal mode.
- Delete Card:
After delete one user, you can continue to delete another user or swipe Delete Card to exit delete mode.
Notice:
When you swipe card on M5 Pro, Red LED flashing with long beeps means the card does not exist in the device.
Login WebServer
Login to M-bio Webserver to manage the device.
M-bio is default with WIFI AP funciton.
Please connect M-Bio WIFI AP
WIFI SSID: M-bio
Default Password: 123456789
The Webserver Login Account: admin Password: 12345
Anviz brand and product are trademarked and protected under the law of the United States. Unauthorized use is prohibited.
For more information, please visit www.anviz.com , or send email to sales@anviz.com for more help.
© 2021 Anviz Global Inc. All Rights Reserved.
202101
In order to protect the environment, Anviz has decided to go “CD Free” campaign on June 1st, 2019. We will provide a QR code for you to download the electronic documents to make sure that you understand how to install and use Anviz devices.
 |  |  |
| https://www.anviz.com/app/CrossChexMobile | https://bit.ly/2Vn0wh6 | https://bit.ly/2J9qA95 |
Anviz brand and product are trademarked and protected under the law of the United States. Unauthorized use is prohibited.
For more information, please visit www.anviz.com , or send email to sales@anviz.com for more help.
© 2021 Anviz Global Inc. All Rights Reserved.
202101
