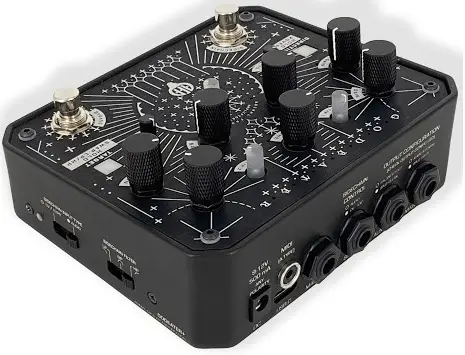

ANIMAL FACTORY AMPLIFICATION GOD EATER Plus Normal Mode Dynamic Bass Distortion Demo
Product Information
Specifications:
- Model: GODEATER+
- Mode: Normal and Sidechain
- Controls: GAIN, PREGAIN, TONE, DIRTY Volume, CLEAN Volume, CUTOFF, XOVER, BASS, BYPASS, SWAP
Product Usage Instructions

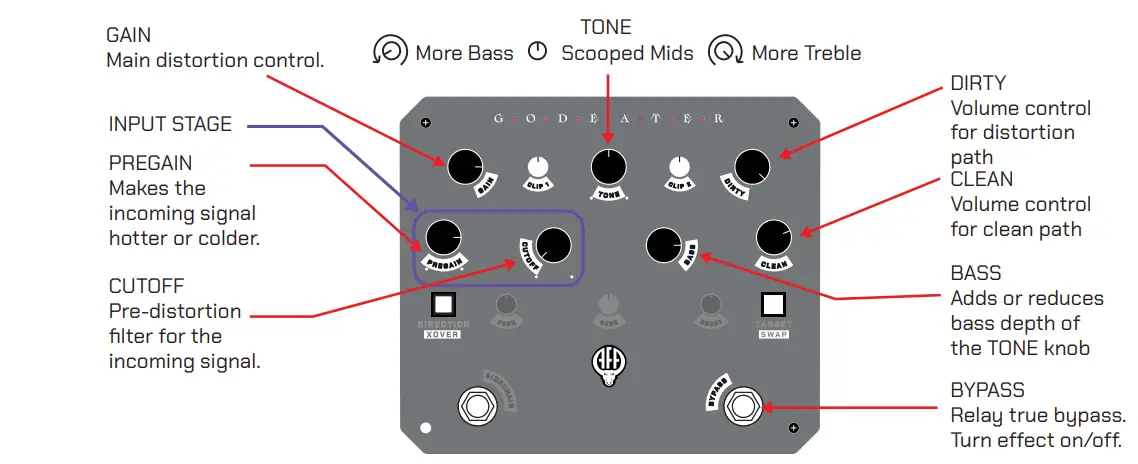

Normal Mode:
- GAIN: Controls the main distortion level.
- PREGAIN: Adjusts the incoming signal intensity.
- TONE: Alters the mid frequencies.
- DIRTY Volume: Controls distortion level;
CLEAN Volume: Controls clean signal level. - CUTOFF: Pre-distortion filter for the input signal. Hold XOVER for 1 sec to enable. Adjust CUTOFF to set crossover frequency. SWAP ON: Distorted lows go to DIRTY, clean highs to CLEAN. SWAP OFF: Distorted highs go to DIRTY, clean lows to CLEAN.
- BASS: Adds or reduces bass depth influenced by the TONE knob.
- BYPASS: True bypass relay for turning the\ effect on/off.
- SWAP: Hold for 1 sec to enable. The square lights up. ON: CUTOFF knob is LOW pass. OFF: CUTOFF knob is HIGH pass (default mode).
Sidechain Mode:
In this mode, you can control PREGAIN, CUTOFF, and TONE using side switches on the right side of the device. Press the TARGET button to select which knob to control. Use the DIRECTION button to indicate the direction of adjustment based on the LED indication.
FREQ(UENCY): Sets the cutoff point of the sidechain filter. Adjust within the specified range.
NORMAL MODE
SIDECHAIN MODE

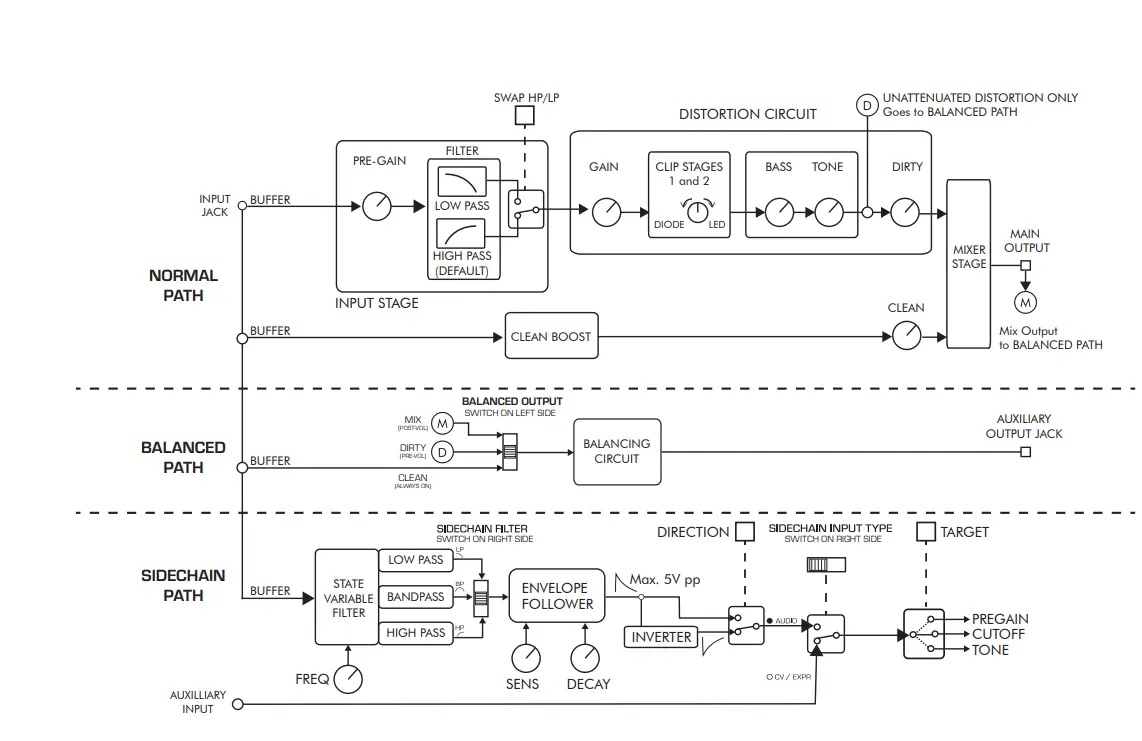

SIGNAL FLOW

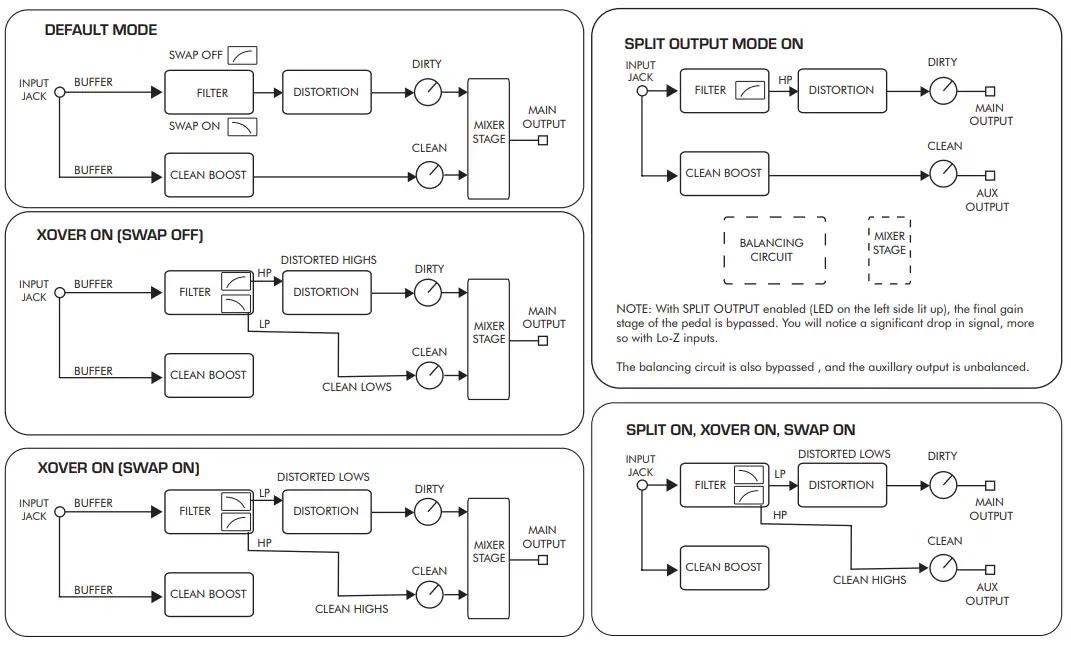

SIGNAL ROUTING
Frequently Asked Questions
- Q: How do I switch between Normal and Sidechain modes?
- A: To switch between Normal and Sidechain modes, use the SIDE SWITCHES on the device and follow the instructions provided in the manual.
- Q: What does the SWAP function do?
- A: The SWAP function toggles the behavior of the CUTOFF knob between LOW pass and HIGH pass filters in Normal mode.
