ALTIMIUM MAT.USB44U3C USB 3.2 5Gbps Matrix
Specifications
- Product Name: USB 3.2 5Gbps Matrix – MAT.USB44U3C
- Allows 4 computers to share 4 USB 3.2 Gen1 devices
- Data transfer speed up to 5 Gbps
- Supports 5V 1.5A output for USB device ports
- High stability and reliability with overcurrent, short-circuit, and interference protection
- Cross-platform support for Windows, Linux, and Mac
- Control options: front panel buttons, remote control, RS-232, TCP/IP
- No driver required
Product Usage Instructions
Connection Setup:
- Connect the USB devices to the USB ports on the USB Matrix.
- Connect the USB Matrix to the computers using appropriate cables.
Power On:
- Ensure all connected devices are powered off.
- Plug in the power supply to the USB Matrix and turn it on.
Device Selection:
Use the front panel buttons, remote control, or other control options to select the desired device connected to the USB Matrix.
Data Transfer:
Data transfer between the selected device and the connected computer will occur at speeds of up to 5 Gbps.
Power Output:
The USB device ports provide a stable 5V 1.5A output for connected devices like keyboards, mice, cameras, etc.
USB
USB 3.2 5Gbps Matrix – MAT.USB44U3C
- Allows 4 computers to share 4 USB 3.2 Gen1 devices
- Data transfer speed up to 5 Gbps
- Supports 5V 1.5A output for USB device ports
- High stability and reliability (overcurrent, short-circuit, and interference protection)
- Cross-platform support for Windows, Linux, and Mac
- Control via front panel buttons, remote control, RS-232, TCP/IP
- No driver required

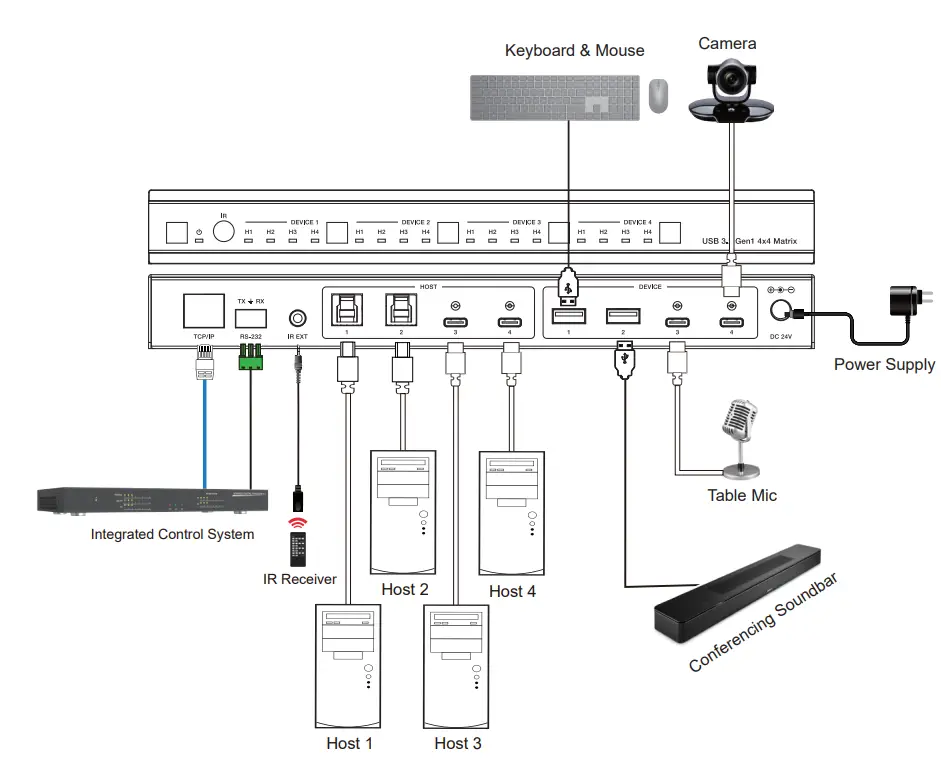

DIAGRAM
Tesca-groupe.com
No part of this document may be reproduced or used without the permission of Exertis Connect. Exertis Connect reserves the right, at any time and without prior notice, to modify the technical specifications advertised for this product and/or to cease manufacturing it. Altimium is a registered trademark. 2025.05
FAQs
Q: Is driver installation required for this product?
A: No, this product does not require any driver installation.
Q: How many devices can be connected to the USB Matrix?
A: This USB Matrix allows 4 computers to share 4 USB 3.2 Gen1 devices simultaneously.
