JINJUNYE Electric Wine Chiller

1. Inleiding en oorview

The JINJUNYE Electric Wine Chiller (Model BK-JC01) is designed to precisely cool and maintain the temperature of single wine bottles, including red, white, champagne, and sparkling wines. It offers a wide temperature range from 34°F to 68°F (1°C to 20°C), ensuring your beverages are served at their optimal temperature without the need for ice.

This iceless wine cooler features an enhanced third-generation airflow cooling system and a high-quality stainless steel interior for efficient performance. Its compact and portable design makes it suitable for various settings, from kitchens and condos to parties and outdoor camping.

The JINJUNYE Electric Wine Chiller in use, showcasing its sleek design and a bottle of wine being chilled, accompanied by a glass of red wine and grapes.

2. Veiligheidsinligting

Lees asseblief alle veiligheidsinstruksies sorgvuldig deur voordat u die toestel gebruik om beserings of skade te voorkom. Bewaar hierdie handleiding vir toekomstige verwysing.

• Ensure the appliance is connected to a DC12V power source as specified. Using an incorrect voltage may damage the unit and pose a safety risk.
• Do not immerse the unit, power cord, or adapter in water or other liquids.
• Hou die toestel weg van direkte sonlig, hittebronne en vlambare materiale.
• Do not block the ventilation openings on the unit. Proper airflow is essential for efficient cooling and to prevent overheating.
• Unplug the chiller from the power outlet before cleaning or when not in use for extended periods.
• Hierdie toestel is slegs bedoel vir huishoudelike gebruik. Moenie dit vir kommersiële of industriële doeleindes gebruik nie.
• Hou buite bereik van kinders.

3. Wat is in die boks

Upon opening the product packaging, please verify that all components are present and in good condition:

• 1 x JINJUNYE Electric Wine Chiller Unit
• 1 x Water Pan
• 1 x kragadapter
• 1 x Instruksiehandleiding (hierdie dokument)

An illustration of all included accessories: the wine chiller, power adapter, water pan, and the instruction manual.

4. Opstelling

1. Uitpak: Verwyder alle komponente versigtig uit die verpakking. Bewaar die verpakking vir toekomstige berging of vervoer.
2. Plasing: Place the wine chiller on a stable, flat, and dry countertop or surface. Ensure there is adequate space around the unit for proper ventilation. Avoid placing it near direct heat sources or in direct sunlight.
3. Water Pan Installation: Insert the provided water pan into its designated slot at the base of the chiller. This pan collects any condensation.
4. Kragverbinding: Connect the power adapter to the DC12V input port on the back of the wine chiller. Then, plug the adapter into a standard electrical outlet.

5. Bedryfsinstruksies

Beheerpaneel oorview

The touch screen control panel with clearly labeled buttons for operation.

• Temperatuur vertoon: Toon die huidige ingestelde temperatuur.
• Reach or Not Indication: An indicator light or symbol that illuminates when the desired temperature is reached.
• Skakel aan/af-knoppie: Skakel die eenheid aan of af.
• Ligte aan/af-knoppie: Controls the techy blue working breathing light.
• Temperatuur + Knoppie: Verhoog die teikentemperatuur.
• Temperatuur - Knoppie: Verlaag die teikentemperatuur.

Basiese werking

1. Krag aan: Press the "Turn On/Off" button to activate the chiller. The display will illuminate.
2. Stel temperatuur: Use the "Temperature +" and "Temperature -" buttons to adjust the desired cooling temperature. The range is 34°F to 68°F (1°C to 20°C). The unit will begin cooling to the set temperature.
3. Voeg bottel in: Open the top lid and carefully place your wine bottle into the cooling chamber. The chiller is designed to accommodate bottles smaller than 3.66 inches (9.3 cm) in diameter, suitable for most standard 750 ml wine bottles, white wines, and some champagne/sparkling wines.


The chiller accommodates bottles up to 3.66 inches in diameter, fitting most standard wine and some champagne bottels.

4. Verkoelingsproses: The chiller will rapidly cool the bottle to the set temperature and maintain it. The advanced semiconductor thermoelectric technology ensures quiet and vibration-free operation.
5. LED lig: Press the "Light On/Off" button to toggle the blue ambient LED light.
6. Skakel af: Press the "Turn On/Off" button again to power down the unit when not in use.

Verkoelingstelsel

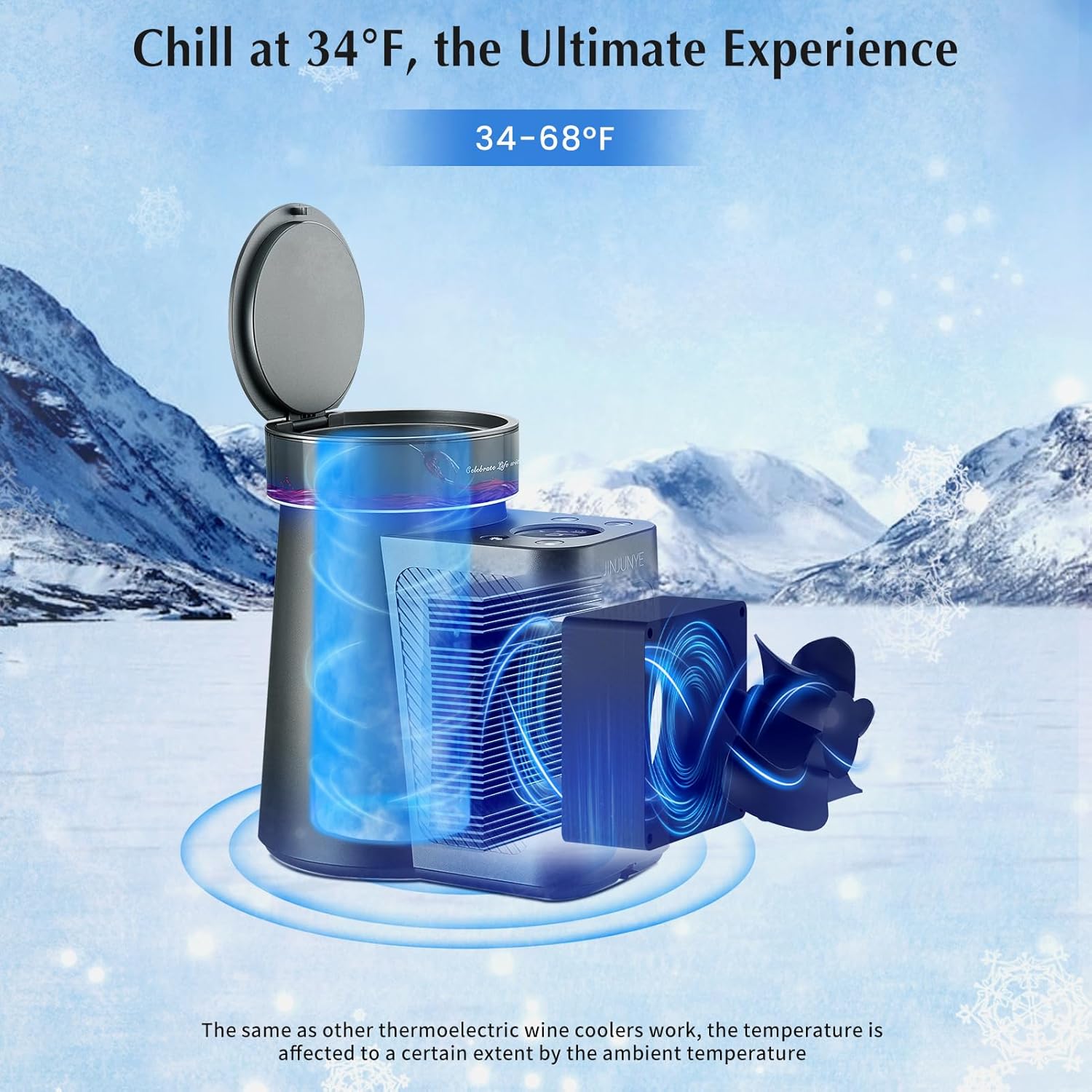

'n interne view of the chiller's enhanced cooling system, demonstrating how it achieves and maintains precise temperatures.

The JINJUNYE wine chiller utilizes an optimized third-generation airflow cooling system. Highly elastic silicone seals prevent cold air from escaping, ensuring consistent temperature maintenance. The unit operates with low noise, providing a peaceful environment.

6. Onderhoud

Regular cleaning and maintenance will ensure the longevity and optimal performance of your wine chiller.

• Skoonmaak van die buitekant: Vee die buitekant van die eenheid af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
• Binne skoonmaak: Periodically wipe the stainless steel interior with a damp lap. Maak seker dat die eenheid ontkoppel is voordat dit skoongemaak word.
• Waterpan: The water pan collects condensation. Empty and clean the water pan regularly to prevent water buildup and maintain hygiene.
• Ontdooiing: Die eenheid beskik oor 'n outomatiese ontdooiingstelsel, wat die behoefte aan handmatige ontdooiing tot die minimum beperk.
• Berging: If storing the chiller for an extended period, unplug it, clean it thoroughly, and ensure it is completely dry before storing in a cool, dry place.

7. Probleemoplossing

If you encounter issues with your JINJUNYE Electric Wine Chiller, please refer to the following common problems and solutions:

Indien die probleem voortduur nadat u hierdie oplossings probeer het, verwys asseblief na die Waarborg en Ondersteuning-afdeling vir verdere hulp.

8. Spesifikasies

9. Waarborg en Ondersteuning

JINJUNYE is committed to providing high-quality products and customer satisfaction.

• 30-Day Replacement & Refund: If you experience any issues with your product within 30 days of purchase, you may be eligible for a replacement or refund. Please refer to your purchase platform's return policy for details.
• Professional 24/7 Service: For any questions, concerns, or technical assistance beyond the initial 30-day period, JINJUNYE offers professional customer support.

For support, please contact JINJUNYE customer service through the platform where you purchased the product or visit the official JINJUNYE brand store for contact information. Please have your model number (BK-JC01) and purchase details ready when contacting support.
