EL00IG e Loop In Ground Wireless Loop Kit
Wireless Vehicle Detection System
Installation in 3 simple steps
- Code in the e-Loop.
- Core bore 3.5’’ x 2.7’’ hole deep and secure using flexible mastic.
- Calibrate the e-Loop… and you’re ready to operate in less than 30 minutes. Save many hours of installation time compared to wired loop systems.
KIT CONTENTS
- 1 x e-Loop wireless inground module.
- 1 x single channel transceiver.
- 1 x magnet.
FEATURES
- High security 128 bit encryption.
- Quick and easy installation.
- Recesses into the driveway.
- Not affected by ground movement.
- 14500 mA battery giving up to 10 years battery life.
- Top access for changing battery.
- Up to 50 yards range.
- IP68.
Commercial Inground e-loop EXIT MODE EL00IG
The Inground Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles.
These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed in the ground of entry or exit passages using sikaflex, contain a replaceable LIthium battery, and can withstand almost any vehicle. Gate or door controller must
have a dedicated open input and autoclose function enabled.
Functions / Features
Lower power consumption
3-axis magnetometer for vehicle detection
- 8 Hz sampling rate
- Auto-calibration
- Exit/Entry detection mode
Fast and simple installation
- Quick non-permanent installation
Up to 10 year battery life
- Compact design
- Compatible with various gates
Reliable radio communications with transceiver
- Reliable radio communication
- High security 128-Bit AES Encryption
Battery Life vs Daily Activations
Note: Battery life is dependent on many factors, including daily activations, time used per activation, radar range and external conditions.
Radio Specifications
| Frequency | 433.39 MHz |
| Modulation | FSK |
| Bitrate | 9.6 kbps |
| Bandwidth | 250 kHz |
| Antenna Type | PCB |
| Nominal Output Power | 10 dBm |
| Receive Sensitivity | -126.2 dBm |
| Security | 128-Bit AES Encryption |
| Spurious Emissions | • 30 – 1000 MHz: < -56 dBm • 1 – 12.75 GHz: < -44 dBm • 1.8 – 1.9 GHz: < -56 dBm • 5.15 – 5.3 GHz: < -51 dBm |
Power, Physical and Environment
| Power | 1 * 3.6 V 14500ma |
| Dimensions | 3.4*3.4*2.1 inches |
| Weight | 300g |
| Environment | • designed for inground (flush) mounting • IP68 ingress Protection |
| Operating Temp | -40°F to 176°F |
| Standby Power | 14μA |
| Activation Power | 50mA |
Compliance
| Safety | Tested to CE Approval |
| EMC | FSKTested to:
EN 301 489-1 V2.2.3 “Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for Electro Magnetic Compatibility” Including. a)_Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”. b)_Transmitter and receiver test to |
Detection Specifications
| Activation Time | 300ms |

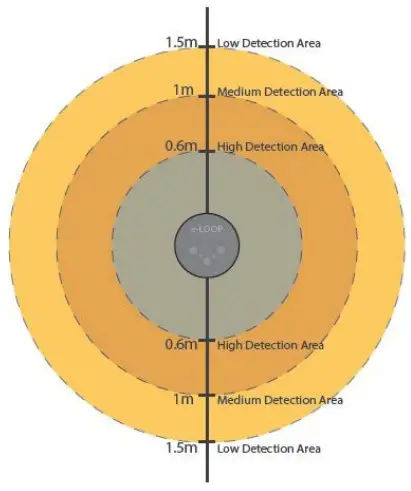

Magnetometer Detection Areas
1.6 yards = Low Detection Area.
1 yard = Medium Detection Area.
0.6 yard= High Detection Area.
