AEI AGR-9206-SM Analog DECT Phone
Analog DECT Phone – AGR-9206-SM / AGR-9106-SM
Quick Installation Guide (QIG) V 1.00
Overview
The Analog DECT Phone is a full-featured telephone that provides voice communication. This QIG provides instructions to operate the product and take advantage of its features.
Package Contents
The package includes:
- Base Unit
- Handset
- Stand
- AC Adaptor
- 10-feet, 4 wire Line Cord (with RJ-11 connector)
- Quick Installation Guide (This document)
Product Description
The following contains important information to help you familiarize with the functions of the analog phone.
Front View
| Name | Description |
|---|---|
| 1. Message waiting indicator | To indicate an incoming call or unread messages. |
| 2. Display screen | To display calls and status information. |
| 3. Speed dial keys | Press to dial the preset number. |
| 4. LINE 1 / LINE 2 | To indicate a line been used as the following status:
|
| 5. End key | Press to end a phone call. |
| 6. Alphanumerical keys | Press these keys to enter phone numbers or texts. |
| 7. Function keys |
|
Back View
| No. | Name | Description |
|---|---|---|
| 1. | PSTN line port | Connects to PSTN line. |
| 2. | DC 6V Power jack | Connects to AC power adapter. |
Connecting the Phone
The following illustration shows how to connect the power ports of the phone:
The following illustration shows how to install the phone and stand:
Operations
Answering a Call
An incoming call is indicated by a ringing tone and a flashing indicator at the top of the base units. You can answer the call by doing one of the followings:
- Pick up the handset to answer the call.
- Press the Line (Line1/Line2) key to answer the call.
Making a Call
Dialing with the Keypad: Enter the telephone number with the alphanumerical keypad, and the call will start automatically.
Using the Speed dial keys: You can use the 6 pre-assigned speed dial hotkeys to configure the most commonly dialed numbers. To call a number using speed dialing, follow the steps below:
- Press the speed dial hotkey that has been pre-assigned to the
phone number, and the call will start automatically.
Call Options
While a call is in progress, a number of additional options are available.
Using the Speaker Phone
For hands-free operation, you can use the built-in speaker to talk on the phone. To use the speakerphone, follow the steps below:
- While talking on the phone, press the SPEAKER key on the phone to enable the Speakerphone function.
- Press the SPEAKER key again to terminate the call.
Putting a Call on Hold
You may want to put a call on hold temporarily while doing some work or attending to a second incoming or outgoing call. To put a call on hold, do one of the following:
- Press the HOLD key on the phone to put the call on hold.
- When you receive a second call, press the next available LINE key to attend to the new call, and the first call will be put on hold automatically.
Over view
This phone is a full-feature telephone that provides voice communication. Read this QIG carefully to learn how to operate this product and take advantage of its features.
Package Contents
When unpacking the phone, ensure all the following items are present and undamaged. If anything appears to be missing or broken, contact your dealer for a replacement.
- Base Unit
- Handset
- Stand
- AC Adaptor
- 10-feet, 4 wire Line Cord (with RJ-11 connector)
- Quick Installation Guide (This document)
Product Description
The following contains important information to help you familiarize with the functions of the analog phone.

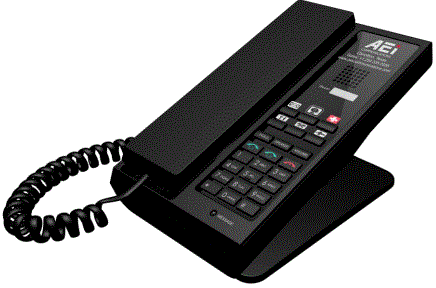

Front View
| Name | Description | |
| 1 | Message waiting indicator | To indicate an incoming call or unread messages. |
| 2 | Display screen | To display calls and status information. |
| 3 | Speed dial keys | Press to dial the preset number. |
| 4 | LINE 1 / LINE 2 | To indicate a line been used as the following status: – Idle: No LED indication. – In call: Red LED. – In on-hold call: Blinking red LED. |
| Name | Description | |
| 5 | End key | Press to end a phone call |
| 6 | Alphanumerical keys | Press these keys to enter phone numbers or texts. |
| 7 | Function keys | |
| HOLD | Press to put an active call on hold. | |
| SPEAKER | Press to activate the speakerphone for hands free conversations. | |
| VOLUME | Press to increase or decrease the volume of the ringer tone, handset, or speakerphone. |

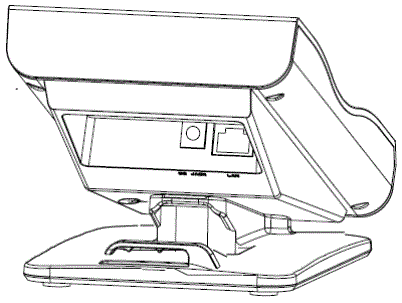

Back View
| NO. | Name | Description |
| 1 | PSTN line port | Connects to PSTN line. |
| 2 | DC 6V Power jack | Connects to AC power adapter. |
Connecting the Phone

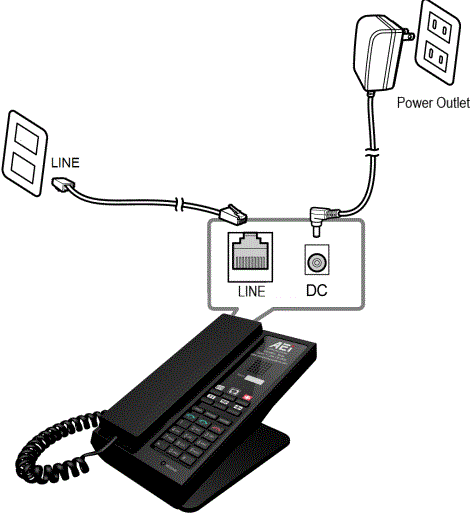

The following illustration shows how to connect the power ports of phone.

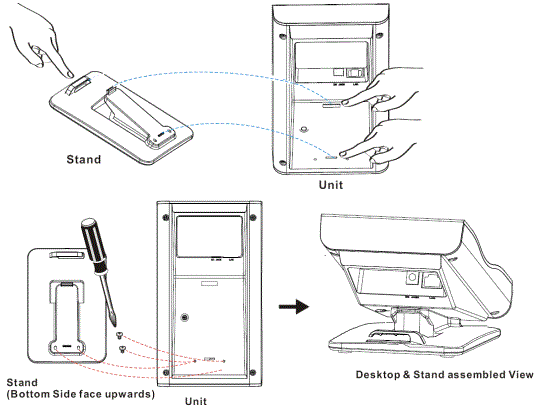

The following illustration shows how to install the phone and stand.
Operations
Answering a Call
An incoming call is indicated by a ringing tone and a flashing indicator at the top of base units. You can answer the call by doing one of the followings:
- Pick up the handset to answer the call.
- Press the Line (Line1/Line2) key to answer the call.
Making a Call
Dialing with the Keypad
Enter the telephone number with the alphanumerical keypad and the call will start automatically.
Using the Speed dial keys
You can use the 6 pre-assigned speed dial hotkeys, to configure the most commonly dialed numbers. Use the function to dial a number quickly, instead of keying in a complete number.
To call a number using speed dialing, follow the steps below:
Press the speed dial hokey that has been pre-assigned to the phone number and the call will start automatically.
Call Options
While a call is in progress, a number of additional options are available.
Using the Speaker Phone
For hands free operation, you can use the built-in speaker to talk on the phone. To use the speakerphone, follow the steps below:
- While talking on the phone, press the SPEAKER key on the phone to enable the Speakerphone function.
- Press SPEAKER key again to terminate the call.
Putting a Call on Hold
You may want to put a call on hold temporarily while doing some work or attending to a second incoming or outgoing call. To put a call on hold, do one of the following:
- Press the HOLD key on the phone to put the call on hold.
- When you receive a second call, press the next available LINE key to attend to the new call, and the first call will be put on hold automatically.
Checking Voice Messages
If the message waiting indicator at top of base unit lights up in red, it indicates that there are one or more new messages in voicemail box.
Press the MESSAGE key on the phone to retrieve voice messages.
Support
For technological support, please email to support@eicommunication.com.
