Implementing CXL Memory on Linux on ThinkSystem
V4 Servers
Planning / Implementation
Think System V4 Servers
In this section, we introduce the support for CXL technology in Lenovo ThinkSystem V4 servers, which includes three types of devices and three types of protocols. This white paper focuses on the support for CXL memory devices in Lenovo V4 servers, with a detailed discussion on CXL memory devices provided in the next section.
CXL is an alternate set of protocols that run across the standard PCIe physical layer that can auto-negotiate to either the standard PCIe transaction protocol or the alternate CXL transaction protocols, as shown in Figure 1. It is a high-performance I/O bus architecture used to interconnect peripheral devices, either traditional non-coherent IO devices or accelerators with additional capabilities.
Figure 1. CXL runs on the standard PCIe physical layer but with CXL transaction protocols
CXL currently supports three types of devices, including type 1 caching devices, type2 accelerators with memory, and type 3 memory buffers (devices and modules), as showed in Figure 2. This white paper focuses on the type 3 memory devices.
Click here to check for updates
Implementing CXL Memory on Linux on ThinkSystem V4 Servers
Figure 2. CXL supports three types of devices and three types of protocols
The three types of devices depend on the use cases and the transaction layers needed. These transaction layers are CXL.io, CXL.cache, and CXL.mem.
- The CXL.io is mandatory in all the CXL device types. It provides a non-coherent load/store interface for I/O devices. The CXL.io is not used for CXL.mem or CXL.cache protocol. For example, CXL.io is used for credit-based flow control, which is not used for CXL.cache or CXL.mem.
CXL.io is always required for discovery and enumeration, error reporting, and Host-Managed Device Memory (HDM). CXL.io can also be used for transaction types, transaction packet formatting, creditbased flow control, virtual channel management and transaction ordering rules that follow the PCIe definition. - CXL.cache protocol defines the interactions between the device and hosts as some requests. This is applied when use cases have special needs that make a fully coherent cache in the device valuable. Essential coherency allows an accelerator to implement any ordering mode and enables it to implement unlimited atomic operations.
- CXL.mem is the CXL Memory protocol, a transactional interface between the CPU and memory. It applies to different memory types (volatile, persistent, among others) and configurations (flat and hierarchical). This protocol supports various attach options, highlighting when the Memory Controller (MC) is in the Host CPU, when the MC is within an accelerator device, or when the MC is in the memory buffer chip.
CXL memory device support
In this section, we first discuss the architecture of the Lenovo ThinkSystem V4 servers from CXL memory device support perspective and then discuss this support from both hardware and software views from the Linux OS perspective.
- CXL device support introduction
- CXL device support: Hardware perspective
- CXL device support: Software perspective
CXL device support introduction
From the platform perspective, when a CXL device is attached to a CXL-capable PCIe bus, this PCIe bus will be switched to the Flex bus protocol by system firmware and runs the CXL.io, CXL.cache and/or CXL.mem protocols on top of Flex bus, as shown in Figure 3.
Figure 3. PCIe bus switches to Flex bus and runs the CXL.io, CXL.cache, and CXL.mem protocols
CXL device support: Hardware perspective
The right side of Figure 4 is the internal block diagram of a specific CXL memory device (memory expander). As can be seen in the block diagram of a CXL memory device, there is a CXL controller that is in charge of handling CXL protocols and data transactions.
Figure 4. CXL memory device block diagram

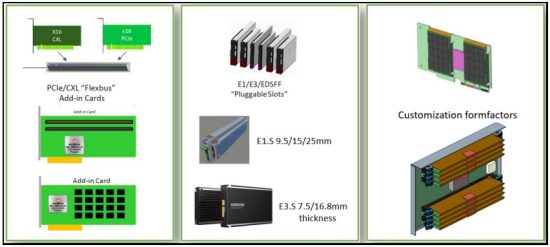

There are several form factor implementations of CXL memory devices, as shown in Figure 5.
Figure 5. Several CXL memory device form factor implementations
In this paper, we will install and validate E3.S CXL memory modules in the Lenovo ThinkSystem SR630 V4 server (as shown in Figure 6) with Ubuntu 24.04 LTS server version OS installed. For the details of setup and validation, see the “Enabling CXL on the ThinkSystem servers” and “CXL Memory Module Validation” sections in this white paper.
Figure 6. Lenovo ThinkSystem SR630 V4
The benefits with the CXL memory devices installed in the server system include:
- Increased Memory Capacity — Improve processor performance, faster execution and/or run more VMs/processes.
- Increased Memory Bandwidth — For machine learning or other workloads needing higher memory bandwidths.
- Memory Pooling — Allows for optimal provision of local DRAM on server motherboard.
CXL device support: Software perspective
In this section, we will focus on the CXL memory device support from the server system firmware (UEFI) and the Linux OS perspective.
In its most basic form, the system software component responsibilities are:
- The system firmware is responsible for enumerating and configuring volatile CXL memory capacity that is present at boot time.
- The Linux OS components are responsible for enumerating and configuring all topologies not covered by the system firmware.
For the CXL memory devices to be supported on the servers, the server system firmware will need to implement the Advanced Configuration and Power Interface (ACPI) standard that allows the CXL devices to be discovered and interact with the Linux OS. Major CXL-related ACPI tables and data structures and their functions are summarized in Table 1.
Table 1. CXL-related ACPI tables
| ACPI Tables | Descriptions |
| SRAT | System Resource Affinity Table. Describes various NUMA domains in a system including host processors, accelerators, and memory. |
| SLIT | System Locality Information Table. Describes the relative distances between different NUMA nodes in the system. This information helps the operating system schedule tasks and allocate memory closer to the processors that need them, reducing access latency and improving performance. |
| HMAT | Heterogeneous Memory Attribute Table. Describes bandwidth and latency from any initiator (a processor or an accelerator) to any memory target. |
| CDAT | Coherent Device Attribute Table. This table is a data structure exposed by a coherent component and describes its performance characteristics. |
| CEDT | CXL Early Discovery Table. UEFI and OS drivers utilize to retrieve pointers to all of the CXL CHBS, a Set of Fixed Memory Windows (CFMWS) for each CXL host bridge present at platform boot time. |
| CHBS | CXL Host Bridge Structure. Each CXL Host Bridge instance will have a corresponding CHBS that identifies the version of the CXL host bridge supports and a pointer to the CXL root complex register block needed for programming the CXL root complex’s HDM decoder. |
| CFMWS | CXL Fixed Memory Window Structure. A new structure type in CEDT describes all the platform allocated and programmed HPA based windows where the system firmware, UEFI, and OS drivers can map CXL memory. |
| ACPI0016 | CXL Host Bridge Object. Virtual SW entity implemented by the system firmware under the _SB (System Bus) of the ACPI tree and consumed by the OS. Each ACPI0016 object represents a single CXL root complex. |
For the Linux OS CXL support, CXL for memory devices utilizes the existing Linux NVDIMM architecture, replacing the NVDIMM Firmware Interface Table (NFIT) based interfaces with ACPI0017 CEDT based CXL interfaces, and adding a CXL subsystem to handle the new CXL specific functionality.
OS CXL components are introduced that utilize the information provided through the ACPI0017 CEDT in the OS layer and the ACPI0016 in the firmware layer. The Linux OS CXL components and their functions are summarized in Table 2 and Figure 7.
Table 2. Linux OS CXL components
| Linux OS CXL components | Descriptions |
| CXL subsystem | It provides the CXL specific services for the NVDIMM BUS component, the CXL specific IOCTL and the SYSFS interfaces for management of CXL devices. |
| ACPI0017 | It provides CXL information for the CXL kernel subsystem. |
| LIBNVDIMM BUS | Existing LIBNVDIMM BUS component. It provides generic NVDIMM bus related functionality including namespace management and enumerates memory device endpoints for the LIBNVDIMM REGION component. |
| LIBNVDIMM REGION | Existing LIBNVDIMM REGION component. It consumes endpoint memory devices produced by the LIBNVDIMM BUS and the region labels on each device (from the LSA). It also organizes the region labels into interleave sets, validates and publishes the regions to PMEM, DEVICE DAX and Block Translation Table (BTT) components. |
| PMEM | A kernel component that represents a single instance of a region. |
| DEVICE DAX | A simplified direct pipeline between the application and the persistent memory namespace that bypasses the filesystem and memory mapped file usage. |
| FS DAX | Direct memory access for memory mapped file systems. |
| BTT | A component that consumes the device block translation table and implements a block storage protocol on top of persistent memory. |
| PMEM NAMSPACE | Each region can be subdivided into volumes referred to as Namespaces. The configuration of each Namespace is described in the namespace labels stored in the LSA, which is exposed through the Command Interface. |
| CXL-CLI | Linux CXL memory management CLI. |
| LIBCXL | Linux CXL memory management library. |
| NDCTL | Linux NVDIMM memory management CLI utilized with CXL. |
| LIBNDCTL | Linux NVDIMM memory management library. |
Figure 7. Linux CXL Architecture Diagram
For the CXL memory devices operation modes, an Intel processor attached with CXL memory expansion devices can support three types of CXL-attached memory operation modes: 1LM+Vol mode (One-Level Memory + Volatile mode, also referred to as memory tiering), Heterogeneous interleave mode, and Intel Flat Memory mode.
- 1LM+Vol mode
1LM+Vol or memory tiering is the default memory mode and allows capacity expansion. This 2-tier memory mode implies the native DDR5 and CXL attached memory are different address spaces and separate NUMA nodes.
This mode is also referred to as Software Managed tiering considering a software entity must manage the placement of data in separate tiers and must manage any desired movement of data between tiers. This management of placement and movement may be performed by the OS, or by a higher-level middleware or directly by an application.
Figure 8. CXL memory device configured to run in the 1LM+Vol mode - Heterogeneous Interleave mode
This mode supports memory interleave between CXL memory attached device and native DDR memory. Interleaving of memory requests across a combination of native attach DDR5 channels and CXL-connected memory to increase aggregate bandwidth.
The entire combined capacity of native DDR memory and CXL is visible to the software as a single NUMA domain. As a result, no software changes are needed in the system to use the Heterogeneous Interleave mode.
Figure 9. CXL memory device configured to run in the Heterogeneous Interleave mode - Intel Flat Memory mode
Intel Flat Memory mode uses logic in the processor to keep frequently used data in DRAM where performance is best and swapping out less frequently used data to CXL memory. The movement of data between two memory tiers is completely managed at the hardware level without any OS intervention.
The CPU itself creates a single NUMA node and memory tier exposed to the OS, combining DRAM and CXL-attached memory in a 1:1 capacity ratio. Data is moved between DRAM and CXL memory at a cache line granularity. The memory controller will keep those cache lines accessed frequently in DRAM, and those cache lines that are not accessed frequently will be residing in CXL-attached memory. This process is completely transparent to the software.
This feature eliminates the need for any OS or application-level software changes to augment server memory resources via CXL.
Figure 10. CXL memory device configured to run in the Intel Flat Memory mode
Note that not every memory population of the DRAM and CXL-attached memory combination supports all three CXL memory operation modes. For the specific CXL mode that is planned to run on a system, please check the server system specification for the required population rules and the required DRAM and CXL memory module specifications (such as memory frequency and capacity) for that system before the deployment.
In case you set the CXL memory modules to either Heterogenous Interleave mode or Intel Flat Memory mode but the installed DRAM and CXL memory modules do not meet the required specifications, the system firmware will disable these two modes and the CXL memory modules will fall back to 1LM+Vol mode.
Note: ThinkSystem SR630 V4 currently does not support Intel Flat Memory mode, as shown in Figure 12.
Enabling CXL memory
In this section, we will demonstrate how the CXL memory devices can be used with Lenovo ThinkSystem SR630 V4 server. As there will be only one NUMA node per CPU when the CXL memory devices are configured to run in either Heterogeneous Interleave mode or Intel Flat Memory mode (this mode is not supported by Lenovo V4 servers yet), we will focus on the setup of 1LM+Vol CXL memory mode which will have two NUMA nodes per CPU seen in the OS when correctly configured.
The configuration for this setup is:
- Platform: ThinkSystem SR630 V4
- CPU: Intel Xeon 6740P x 2
- Memory: DDR5 DIMM 128GB x 16
- CXL memory device: Samsung E3.S CXL memory module 128GB x 4
- OS: Ubuntu 24.04 LTS server version OS
The steps to configure the server UEFI to enable the CXL memory devices in 1LM+Vol CXL memory mode operation are as follows.
- Press F1 when prompted during server boot to enter System Setup.
Figure 11. ThinkSystem SR630 V4 server boot to enter System Setup - Select System Settings > Memory > CXL Memory Module > Memory Mode, and press Enter to select 1LM+Vol mode.
Figure 12. Select the CXL Memory Module’s Memory Mode to 1LM+Vol - Save the settings and reboot the system.
Figure 13. Save the settings before system reboot - After the system reboots to UEFI screen, the CXL operation mode should be in 1LM+Vol mode and the CXL memory capacity should be correctly detected, as shown in the right part of Figure 11.
- Install the Ubuntu 24.04 LTS server version OS with HWE kernel. It should be straight forward, and we will not describe the OS installation details here. For more details on the Ubuntu server OS, see https://ubuntu.com/server
Figure 14. Install the Ubuntu 24.04 LTS server version OS with HWE kernel - Now, boot to OS for CXL memory module validation.
CXL memory validation
In this section, we will verify the proper CXL memory module functionality in the Linux OS for this system, by checking the command output correctness with Linux commands like lspci, dmesg, free, lsmod, numactl, … etc., then we will use CXL related command line interface (CLI) tools to confirm CXL memory modules are running in the expected mode: 1LM+Vol mode.
- Linux commands
- CXL related commands
Linux commands
Below is a list of Linux OS built-in commands required to check the CXL components in the server from the OS perspective. Use these to get an overall picture about how the Linux OS CXL subsystem sees the CXL components and their behaviors.
- lspci -vvv
One CXL memory device is detected at 0000:59:00.0 and similar devices are also detected at 0000:5a:00.0, 0000:d8:00.0, and 0000:d9:00.0 (not listed here). Note that NUMA node information from this command is not accurate; it should be NUMA node 2 and 3, as in the ACPI SRAT table, and the numactl command output (see below).
- dmesg | grep ACPI | grep SRAT
With this command, we confirm that this system’s UEFI correctly implements the SRAT (System Resource Affinity Table) necessary for the CXL devices to be seen and interacted with the OS. Now the hotplug memory devices (CXL memory modules) are arranged as NUMA node 2 and 3. Note that the memory ranges are also compatible with the output from the command: cxl list -Hu (see the cxl list -Hu command in the CXL related commands section)
- free
The command show that the total memory space available to the OS is 2.5 TB, which is expected when all CXL memory module memory space is activated and available to the OS.
- lsmod | grep -i CXL
This command lists all the CXL memory device related kernel modules that are loaded.
- numactl -H
This command shows that there are 4x NUMA nodes. The DRAM memory spaces are arranged as NUMA node 0 and 1, each with size 1.0 TB, while CXL memory module memory spaces are arranged as NUMA node 2 and 3, each with size 256 GB.
As mentioned in Table 2 and Figure 7 in the CXL device support: Software perspective section, all the NDCTL, DAXCTL, and CXL-CLI packages are required for validation of CXL memory module operation modes. Some of the OS either did not have these packages, or they shipped with older versions of these packages, in such case, you may need to install or upgrade to the latest versions of these software packages to make sure they work properly on your OS.
To install the NDCTL and DAXCTL packages on Linux, please follow the steps listed in:
https://docs.pmem.io/ndctl-user-guide/installing-ndctl/installing-ndctl-packages-on-linux
To install the CXL-CLI package on Linux, please follow the steps listed in:
https://docs.pmem.io/ndctl-user-guide/installing-ndctl/installing-the-cxl-cli-package-on-linux
After installing or upgrading the necessary software packages, we can perform the commands with results shown below.
- daxctl list -Mu
The output indicates that there are two dax devices, dax0.0 and dax9.0, assigned to NUMA node 2 and 3 respectively, each with size 256 GB and both are running in the system-ram mode.
- cxl list -Hu
This command indicates that there are 4x CXL memory devices, mem0 to mem3, each with a size 128 GB. These devices are grouped into two regions, region0 and region9, and both regions are running in the ram type mode. This is compatible with the information from the daxctl command, which is the expected result.
Note that in this case, the CXL command output says some misleading information about the NUMA node 0 and 1, while both daxctl and numactl command outputs say the CXL NUMA nodes are 2 and 3. We remind users about this difference to take care of, if the exact NUMA node numbers are important in the user application. We expect the future version of OS and CXL CLI will correct this issue.
As shown with the above command outputs, we validated that the CXL memory modules behave correctly with both Linux commands, and CXL CLI-related commands with Ubuntu 24.04 LTS OS, on the Lenovo ThinkSystem SR630 V4 server system.
Known issues and troubleshooting
In addition to the above mentioned lspci and CXL CLI NUMA node information issue with Ubuntu 24.04, the issues below were also found in recent Linux OS distributions. Lenovo is working with the OS vendors and expecting these issues will be fixed in the future releases.
- CXL related complaining messages shown even CXL-capable PCIe root port did not attach CXL device (on Ubuntu 24.04, RHEL 9.5)
- Not able to run the CMM (CXL Memory Module) in the 1LM+Vol mode under SLES15.6
- CXL CLI tool does not work correctly with CXL device under RHEL9.4
References
For more information, see these references:
- CXL 2.0 and 3.0 specifications:
https://computeexpresslink.org/wp-content/uploads/2024/02/CXL-2.0-Specification.pdf
https://computeexpresslink.org/wp-content/uploads/2024/02/CXL-3.0-Specification.pdf - CXL + Memory Expander – Baseline Guide for Birch Stream (login required)
https://www.intel.com/content/www/us/en/secure/content-details/803836/cxl-memory-expanderbaseline-guide-for-birch-stream.html?wapkw=803836 - CXL Type 3 Memory Device Software Guide
https://www.intel.com/content/www/us/en/content-details/643805/cxl-memory-device-softwareguide.html?wapkw=643805 - CXL Supplemental Validation Guide – Birch Stream (login required)
https://www.intel.com/content/www/us/en/secure/content-details/814339/compute-express-link-cxlsupplemental-validation-guide-for-birch-stream.html?wapkw=814339 - Installing the CXL-CLI Package on Linux
https://docs.pmem.io/ndctl-user-guide/installing-ndctl/installing-the-cxl-cli-package-on-linux - A Practical Guide to Identify Compute Express Link (CXL) Devices in Your Server
https://stevescargall.com/blog/2023/05/a-practical-guide-to-identify-compute-express-link-cxldevices-in-your-server/ - Using Linux Kernel Tiering with Compute Express Link (CXL) Memory
https://stevescargall.com/blog/2024/05/using-linux-kernel-tiering-with-compute-express-link-cxl-memory/ - Memory Hot(Un)Plug
https://docs.kernel.org/admin-guide/mm/memory-hotplug.html
