klipsch R5 Neckband
IMPORTANT SAFETY INFORMATION
- READ these instructions.
- KEEP these instructions.
- HEED all warnings.
- FOLLOW all these instructions.
- DO NOT use this apparatus near water or moisture.
- If you hear ringing or experience pain or discomfort in your ears during or after using any in-ear audio product, that is a sign you are listening too loud.
When your ears are exposed to high volumes (in excess of 85dB) for over an hour, you may be permanently damaging your hearing. - TURN DOWN your listening device’s volume to zero before you insert the Klipsch headphones and turn on the device. Once you have the headphones on, gradually increase the volume to a comfortable, moderate volume.
- DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- ONLY USE attachments/accessories specified by the manufacturer.
- REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- NEVER operate a motor vehicle while listening to or wearing your headphones. Not only dangerous, but it is also illegal in many places.
- NEVER operate heavy machinery while listening to or wearing your headphones.
- We don’t recommend you use the headphones while riding a bicycle, running, or walking in heavy traffic areas.
WARNING
Except in case of emergency, Klipsch recommends you do not use these headphones or headsets (headphones plus microphone) as aviation communication equipment as they are not engineered for many environmental conditions common in commercial or non-commercial aircraft (including, but not limited to: altitude, temperature, noise conditions, unpressurized aircraft, etc.) resulting in possible interference to critical communications.
The Occupational Safety Health Administration (OSHA) has issued headphone usage recommendations for maximum daily exposure and sound pressure levels (measured in decibels (dB)). A decibel is a unit of measure of sound, and decibels increase exponentially as the sound gets louder. For example, conversational speech is typically around 60dB, and a rock concert in a stadium is often about 110dB.

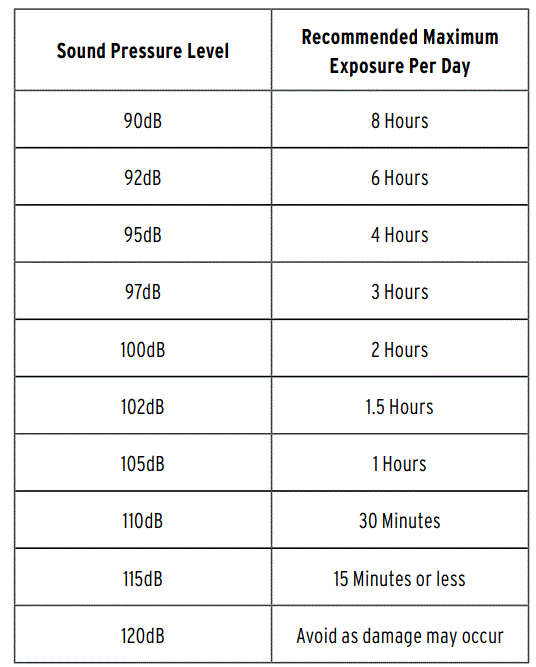

OSHA GUIDELINES FOR NOISE EXPOSURE LIMITS
COMPLIANCE INFORMATION
Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union RoHS Directive 2002/95/EC; European Union WEEE Directive 2002/96/EC; European Union Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) Directive 2006/121/EC
WEEE NOTICE
Note: This mark applies only to countries within the European Union (EU) and Norway.
This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.
FCC AND CANADA EMC COMPLIANCE INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance.
COMPLIANCE INFORMATION
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
Approved under the verification provision of FCC Part 15 as a Class B Digital Device.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this device.
Caution
To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC rules, this device is to comply with Class B limits. all peripherals must be shielded and grounded. Operation
with non-certified peripherals or non-shielded cables may result in interference to radio or reception.
This Class B digital apparatus complies with Canadian ICES-003.
WIRELESS TRANSMITTER COMPLIANCE INFORMATION
The term “IC:” before the radio certification number only signifies that Industry Canada’s technical specifications were met.
This device complies with part 15 of the FCC rules and the applicable Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
PRODUCT REGISTRATION
Register your product online at www.klipsch.com/register
- Klipsch will keep you up-to-date on new products and promotions.
- Your personal information will never be resold.
- This registration information is not used for warranty purposes. Please retain your receipt for warranty claims
CONTROLS
VIBRATION ON/OFF
GETTING STARTED
- Turn on the headset by pressing the Power/Pair button for 4 seconds. The headset will automatically go to pairing mode and the status indicator will begin pulsing BLUE.
- Connect to “Klipsch R5 Neckband” from your device.
- Once connected, the headset will periodically blink BLUE
Note
The headset will automatically pair to the last device connected to it when turned on.
TURNING OFF
Press the Power/Pair button for 5 seconds to turn the headset off.
CHARGING
Use the included Micro-USB cable to charge the headset from your computer or USB wall adapter (not included). The status indicator will glow RED until the headset is charged, at which point it will turn off.
ADDITIONAL FEATURES
- You can mute the microphone by pressing and holding “Volume Up” and “Volume Down“ simultaneously during a call.
- You can access voice control by pressing and holding Play/Pause.
- You can reject a second incoming call by pressing and holding Play/Pause.

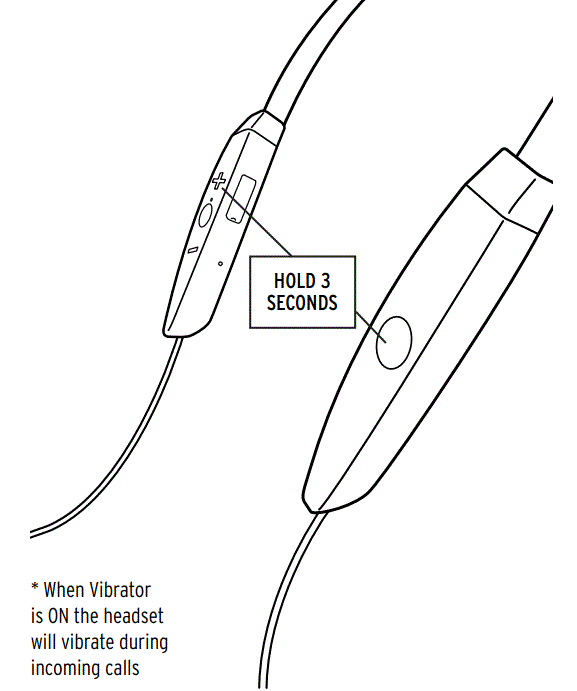

- Press and hold “Volume Up” and “Power/Pair” simultaneously to turn Vibration ON and OFF.
SPECIFICATIONS
- Bluetooth® 4.0
- A2DP Codecs: SBC, aptX®
- Range: up to 10m (33 feet)
- Input rating: 5V DC, 0.5A
STATUS INDICATOR
WARRANTY INFORMATION
ENGLISH – WARRANTY – U.S.
Klipsch Group, Inc, (KGI) warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one (1) year from the date of purchase if it is properly used and maintained. If this product proves defective in either material or workmanship, KGI, at its option, will (a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, KGI at its sole option may replace the unit with a current model of equal or greater value. In some cases, modification to the mounting surface may be required where a new model is substituted. KGI assumes no responsibility or liability for such modification. To obtain a repair or replacement under the terms of this warranty, please return to the dealer first, if possible, and the dealer will direct you accordingly for repairs or replacement. You will be required to submit a copy of the original receipt.
Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.
Limitations
- This limited warranty does not cover failure of the product resulting from improper installation, misuse, abuse, accident, neglect, mishandling, or wear from ordinary use or environmental deterioration.
- This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which may result for any reason from the failure of the product.
- This limited warranty is null and void for products not used in accordance with KGI’s instructions.
- This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.
- This limited warranty terminates if you sell or otherwise transfer this product to another party.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION TO JURISDICTION, OR COUNTRY TO COUNTRY. KGI’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. KGI DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH KGI MAY BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WARRANTY OUTSIDE THE U.S.
The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable warranty service, please contact the dealer from which you purchased this product or the distributor that supplied this product.
Frequently Asked Questions
By holding down the Power/Pair button for 4 seconds, you can turn on the headset. The status indicator will start to pulse BLUE and the headset will immediately enter pairing mode. 2. From your mobile, connect to “Klipsch R5 Neckband.”
Your left side should be on the left side of the neckband, and your right side should be on the right side. On the (left) side of the mark, there is a tactile dot. your ears using the left and right units.
Your ears are held in place by ear hooks or over-the-ear/around-the-ear designs that clasp around them. As they provide a better and more stable hold than other types of earbuds, these are the best if you intend to wear the headphones while engaging in activities that demand a lot of movement.
Doctors advise adhering to the 60%/60-minute guideline, which states that no music, video game, or movie should be played at more than 60% of its maximum loudness. You should only wear earbuds for no more than 60 minutes at a time.
The Bluetooth headset’s primary button should be pressed and held for a few seconds. Your Bluetooth headset will suddenly turn off after a brief period of an LED light blinking on and off. Consult your Bluetooth headset manual for advice unique to your device if it still won’t switch off.
Simply insert them into the charging case’s matching spaces. Ensure that they are secure and positioned appropriately. Put the lid on. When they are charging, the red indicator lights will turn on.
Simply for 3 seconds, press and hold the Klipsch logo on both earbuds. The earphones will enter pairing mode as a result. Pressing the right earphone three times will also initiate pairing if the earphones are in the case (the unit should start pulsing).
Although the first main advantage of neckband headphones may be the most obvious, it is nevertheless important to mention. You won’t need to go into your purse or pockets to find your earphones when you want to listen to music or answer a call because they are hanging around your neck, just a few inches from your ears.
Yes, it is absolutely possible to use headphones and get a decent night’s rest. In fact, falling asleep to your favorite music has a variety of advantages for your health, including Relaxation – Various studies have demonstrated that the relaxation response is brought about by listening to the appropriate music.
Because it is constructed of soft-stitched sheepskin nappa leather, the neckband itself is quite durable. These headphones are resilient and can withstand being folded or twisted. Due to the in-line button controls on the neckband of these wireless neckband headphones, pairing through Bluetooth or NFC is simple.
